Vatech PaX-i3D User Manual

PaX-i3D Green (PHT-60CFO) User Manual
78

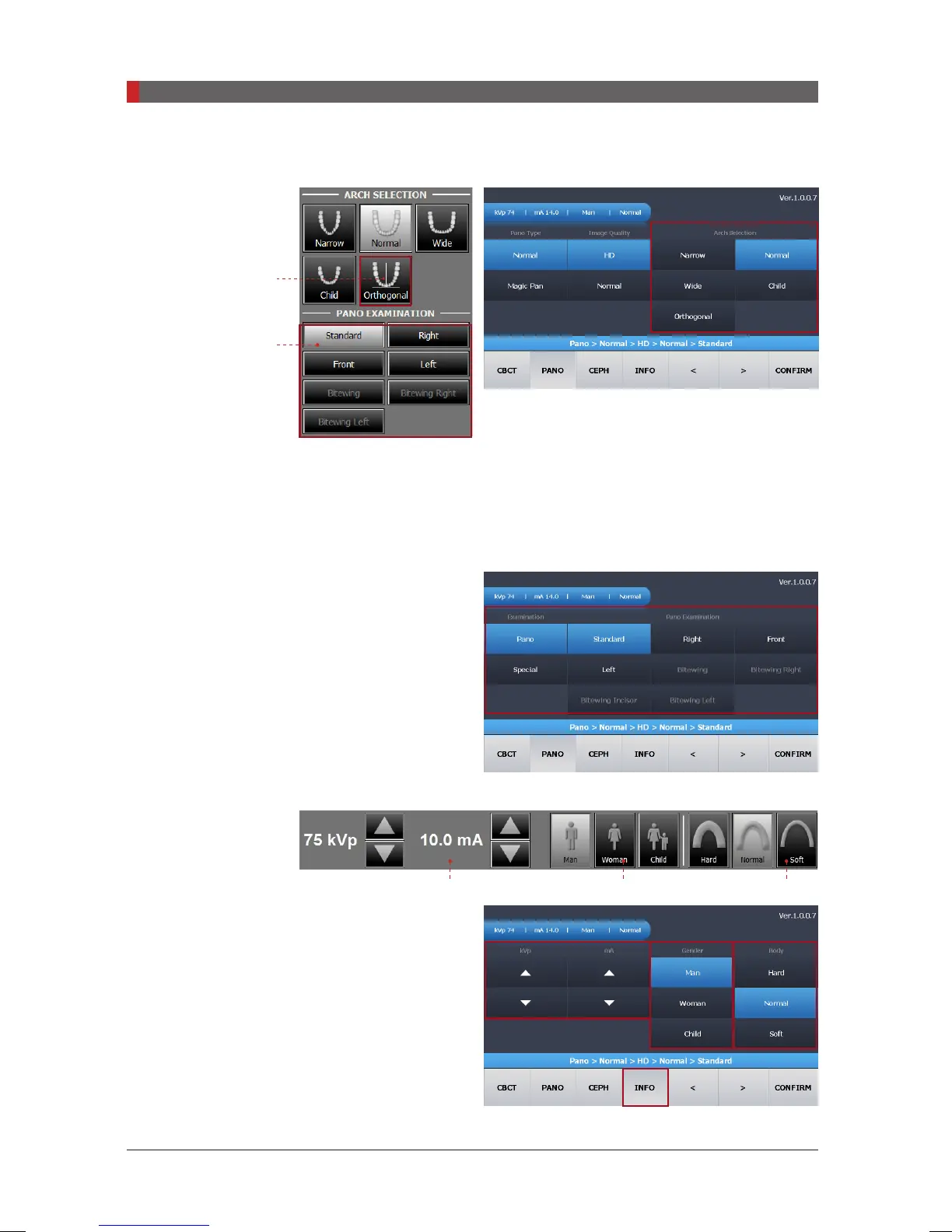

6 Acquiring PANO Images
D. Select the patient’s arch type under
Arch Selection
. By default,
Normal
is selected.
Orthogonal
: This mode enables overlapping regions of teeth to be minimized when
acquiring images in the ROI. If orthogonal arch is selected, its sub-modes are activated.
E. Select the ROI for panoramic image acquisition under
PANO Examination.
Click
Activated
H F G
[PI3DG_130U_44A_en]User Guide.indd 78 2016-05-24 오후 4:18:55
