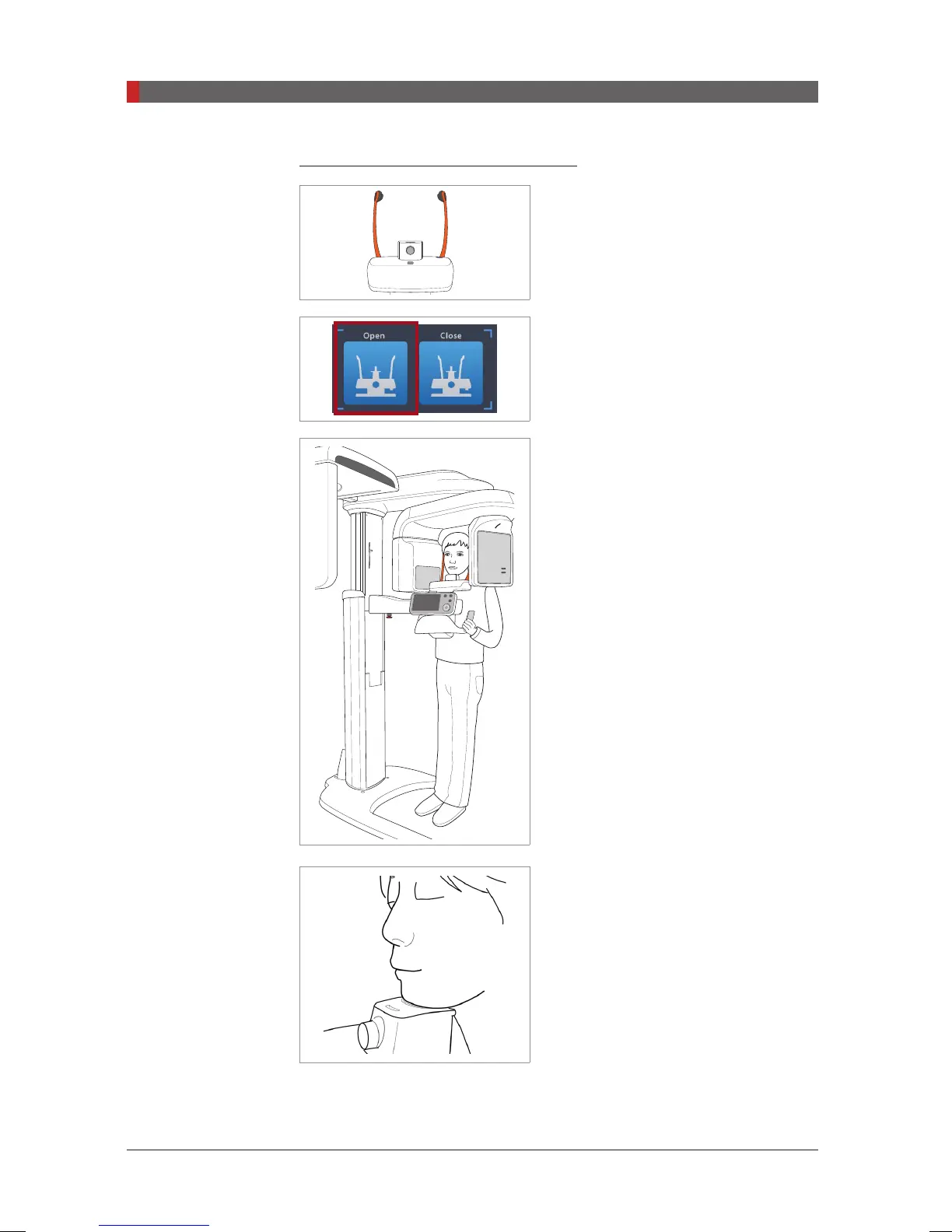

6 Acquiring PANO Images
Positioning the edentulous patient
A. Remove the bite block from the Chinrest
receptacle on the equipment.
B. Open the temple supports by clicking
the temple support adjustment button.
C. Guide the patient —facing the Chinrest
— to the equipment.
D. Adjust the height of the column using
the column up/down button or switch
(optional) until the patient’s chin rests
comfortably on the Chinrest.
E. Ask the patient to:
■
Stand upright
■
Firmly grip the handle
■
Lean his/her chest lightly against the
equipment
■
Position his/her feet slightly forward and
open stance
F. Have the patient
■
Close his/her lips around the bite block
■
Keep his/her tongue pressed against
his/her palate
■
Close his/her eyes
Ask the patient to remain still until
scanning is completed.
