Installation Retrofit Installation Of VaporTEK-3 Controller Board
25
Retrofit Installation Of VaporTEK-3 Controller Board
WARNING! The electrical power to this equipment must be removed prior to any installation or
maintenance work being carried out.
FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND SAFETY PRECAUTIONS COULD CAUSE
DAMAGE TO PROPERTY, ENVIRONMENT, RESULTING IN SERIOUS INJURY OR DEATH.
Only technicians who have received the relevant training in a Gilbarco training center, and who are
authorized to work on systems in potentially explosive atmospheres, shall undertake any
installations or maintenance work.
During the operation, maintenance or assembly all valid safety regulations must be observed. This
includes also local accident prevention and safety regulations, which are unstated in this document.
RULES TO BE OBSERVED
•
Regulation concerning flammable liquids - VbF
• Technical guidelines for flammable liquids - TRbF respectively technical guidelines industrial safety regulations
TRBSASdapter
• Technical rules GAS - TRG (For combined storage and delivery with gas)
• Regulations concerning plants for the storage, bottling and transfer of substances harmful to water - VawS
• Federal emission protection act
• VDE-regulations
• Explosion protection guidelines
• Calibration regulations
• Technical guidelines/regulations of the organization “technical monitoring association” - VdTÜV
RETROFIT KITS
TO REPLACE AN EARLIER VAPORTEK CONTROLLER BOARD (P/N 900628-001):
• VaporTEK-3 Controller Board Kit P/N 900895-001
• Adapter Cable, Control (Signal) P/N 900898-001 (Screw terminal plug one end/4-pin snap plug other end)
• Adapter Cable, Motor (Power) P/N 900899-001 (Screw terminal plug one end/6-pin snap plug other end)

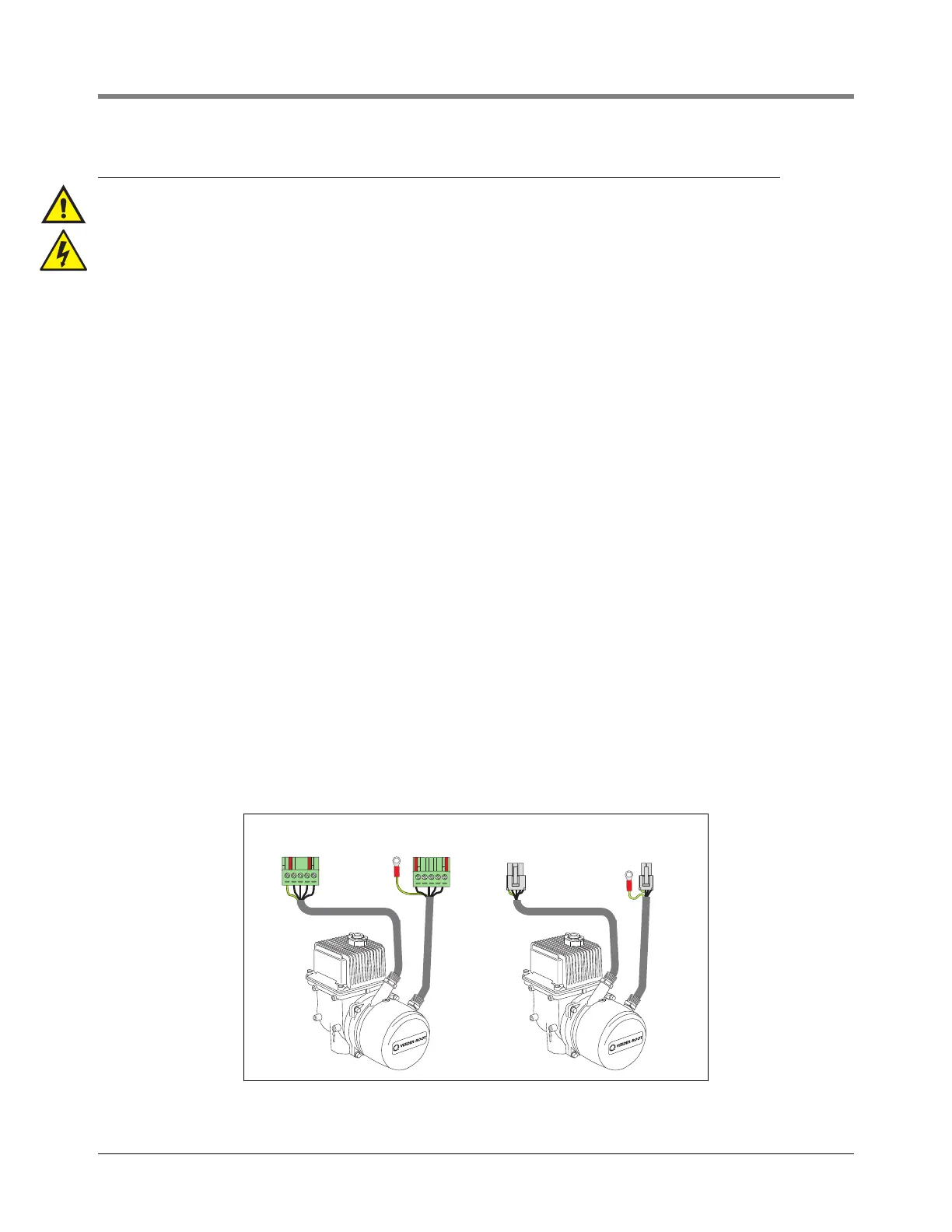

Figure 14. Old Versus New Style VaporTEK Cable Plugs
Motor
Cable
Sensor
Cable
VaporTEK
Pump
Motor
Cable
Sensor
Cable
VaporTEK
Pump
OLD STYLE PUMP CABLES
SCREW TERMINAL PLUGS
NEW STYLE PUMP CABLES
SNAP PLUGS
