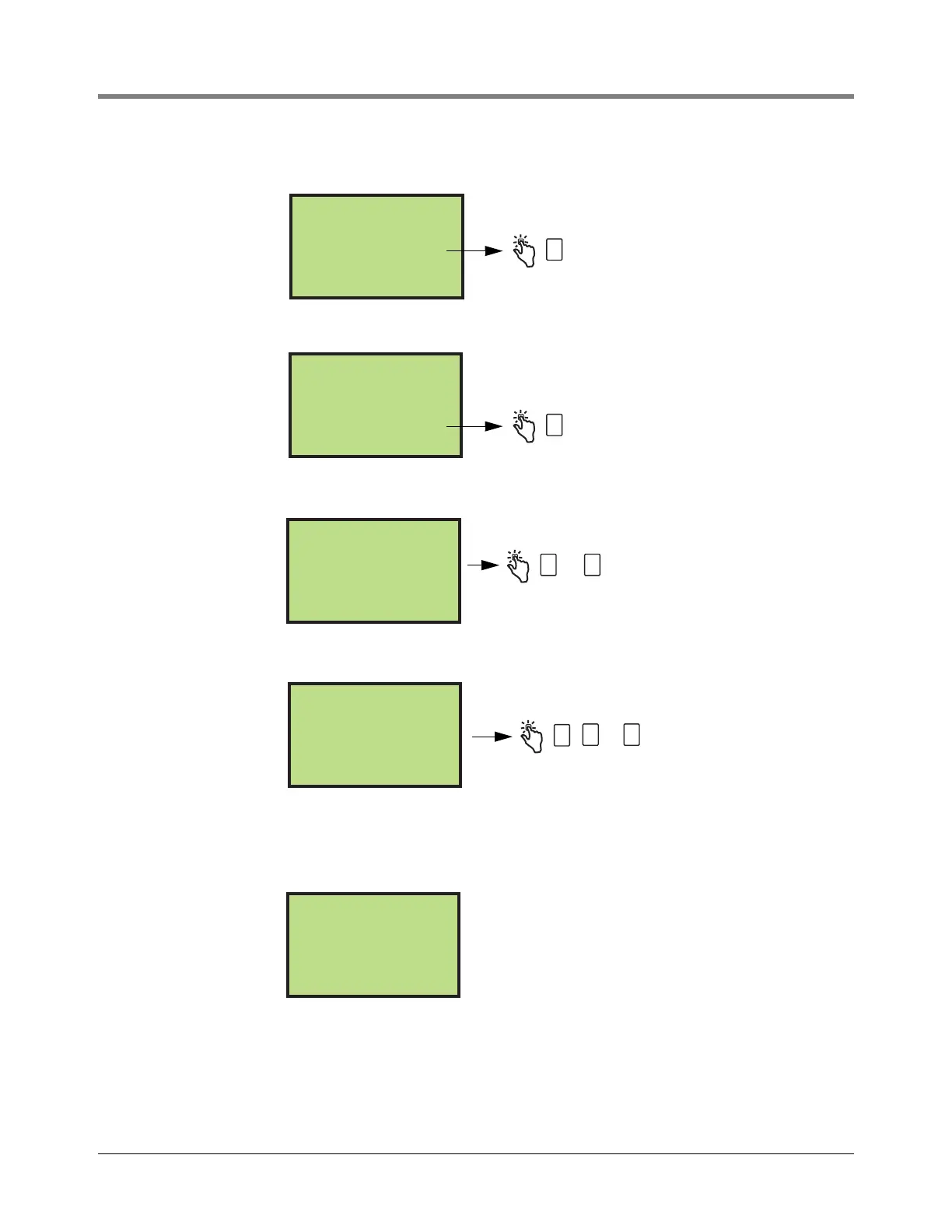

2. When the display below appears, press the keys shown:
3. When the display below appears, press the keys shown to start the simulation:
4. At the display below, select the dispenser side (1 or 2) that you want to simulate:
5. At the display below, select the simulation rate of petrol you want to check by pressing the keys shown:
When the flow rate input is provided through the FB1 Terminal the VaporTEK pump will start if greater than 6
liters/minute. The flow rate achieved by the VaporTEK Pump will be displayed in the FB1 Terminal.
6. The FB1 Terminal will start the simulation and display the results as in the example below:
Where:
- Rate is the ratio of current vapor flow (Cur) divided by the simulated petrol flow (Set).
- Set is the simulated petrol flow established in Step 5 above. NOTE: Set value must be greater than 6 lpm to
start the VaporTEK Pump.
- Cur is the vapor or air flow measured by the gas meter.
*** SERVICE ***
Gas measuring (1)
SYS–Identify (2)
EC2000 (3)
Service (1)
Parameter (2)
Autocalib (3)
Simulation (4)
Select Side
Side 1 (1)
Side 2 (2)
1 2
or
1
2 3
or
,
Simulation
Max 40 l/min (1)
Max 35 l/min (2)
Free Input (3)
VAPOR CONTROLLER
Rate 99.5 %
Set 40.0 l/min
Cur 39.8 l/min
