Vertiv Liebert AHU - Position and Dimension of Top Cover

Installation 16
Table 2-4 Plenum Dimensions
Types
D (depth) W (width) H (height)
Net
weight
Gross
weight
mm inch mm inch mm inch Kg Kg
FA065HC1NE09020F1070P0000
Upper 1600 63.0 2800 110.2 1740 68.5 1100 1400
Lower 1600 63.0 2800 110.2 1860 73.2 1300 1400
FA065HC1NE09020M1070P0000
Upper 1600 63.0 2800 110.2 1740 68.5 1100 1400
Lower 1600 63.0 2800 110.2 1860 73.2 1300 1400
2.3.3. Position and Dimension of Top Cover

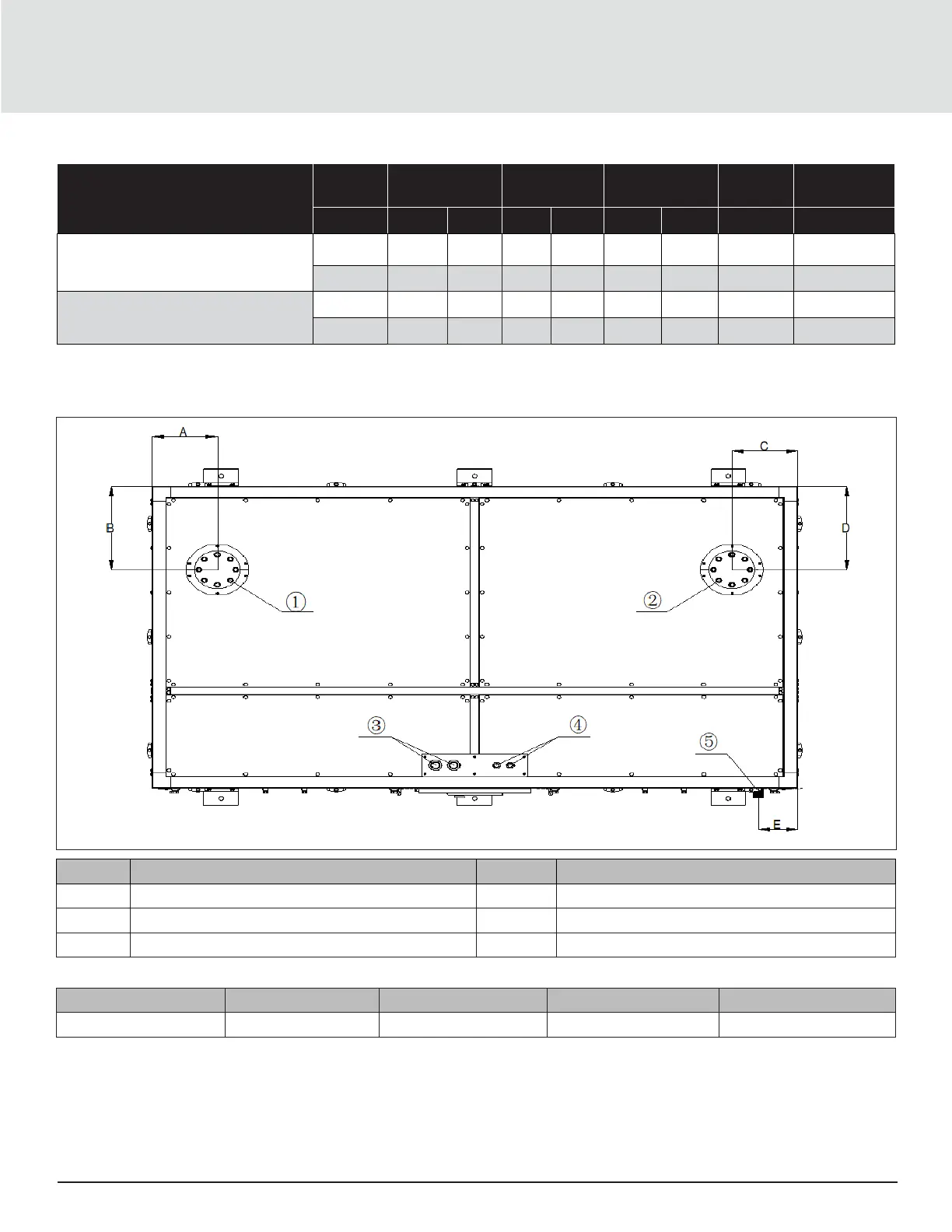

The position and dimension of top cover are shown in Figure 2-8.
No. Description No. Description
1 Water pipe inlet DN80 4 Cable inlet M25
2 Water pipe outlet DN80 5 Condensate drain outlet G1 1/4
3 Cable inlet M40
A B C D E
285 475 285 475 170
Figure 2-8 The Position and Dimensions of Top Cover (unit: mm)
