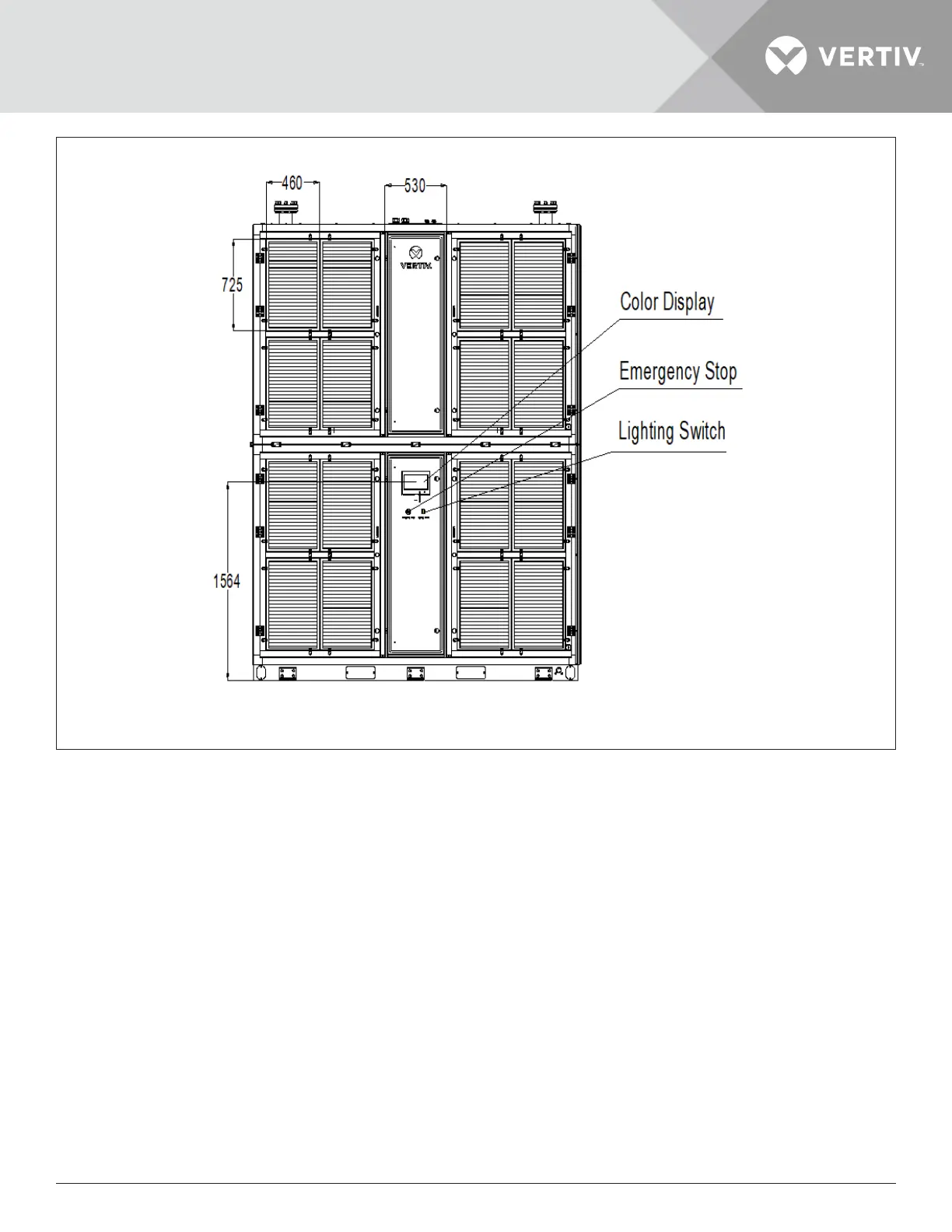

Figure 2-12 Air Inlet (unit: mm)
2.3.7. Installation
The width of the AHU is relatively large, and the unit can realize multiple cabinets, so the ground is required to be very flat.
Therefore, the customer needs to make a floor stand to meet this condition.
This floor stand is also conducive to the connection of the AHU condensate drain pipe, so it is recommended that the height
be above 100 mm.
The floor stand is to be prepared by the installation team according to the dimensions, weight, and height of the unit to en-
sure that the structure is rigid, the floor stand should be sized according to Figure 2-13.
