Installation 24

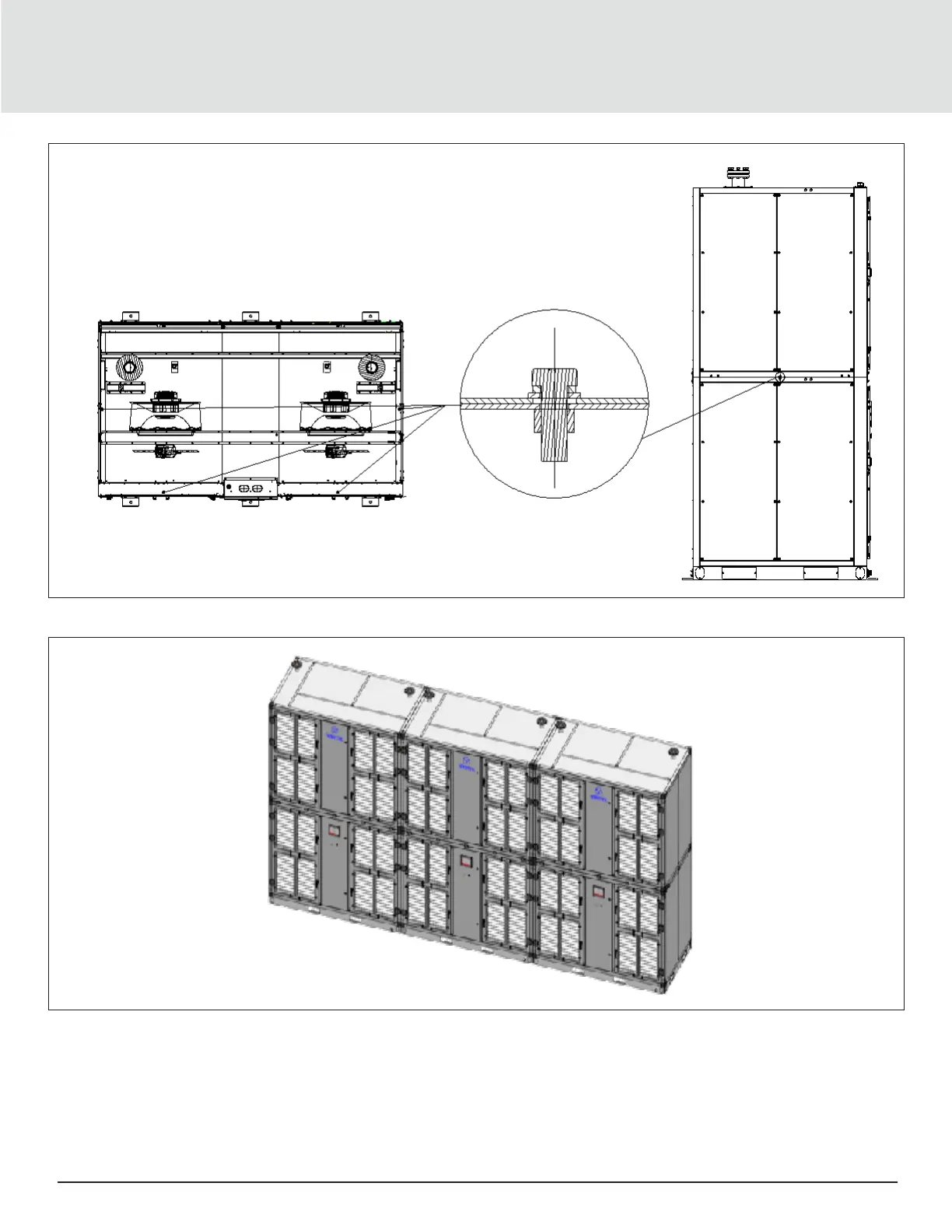

Figure 2-19 Combination bolt position
Figure 2-20 Horizontal group installation
2.3.8. Pipe Installation
Condensed Drain Piping Connection of Unit. The condensate water pan of the upper cabinet drains to the drain pan of the
lower cabinet, and the drain pan of the lower cabinet drains to the outside of the unit.
The cooling water inlet and outlet pipes are connected, the cooling water inlet and outlet pipes are connected by flanges, and
the flanges are sealed with sealing rings.
