Vertiv™ | Liebert® AHU | User Manual 23

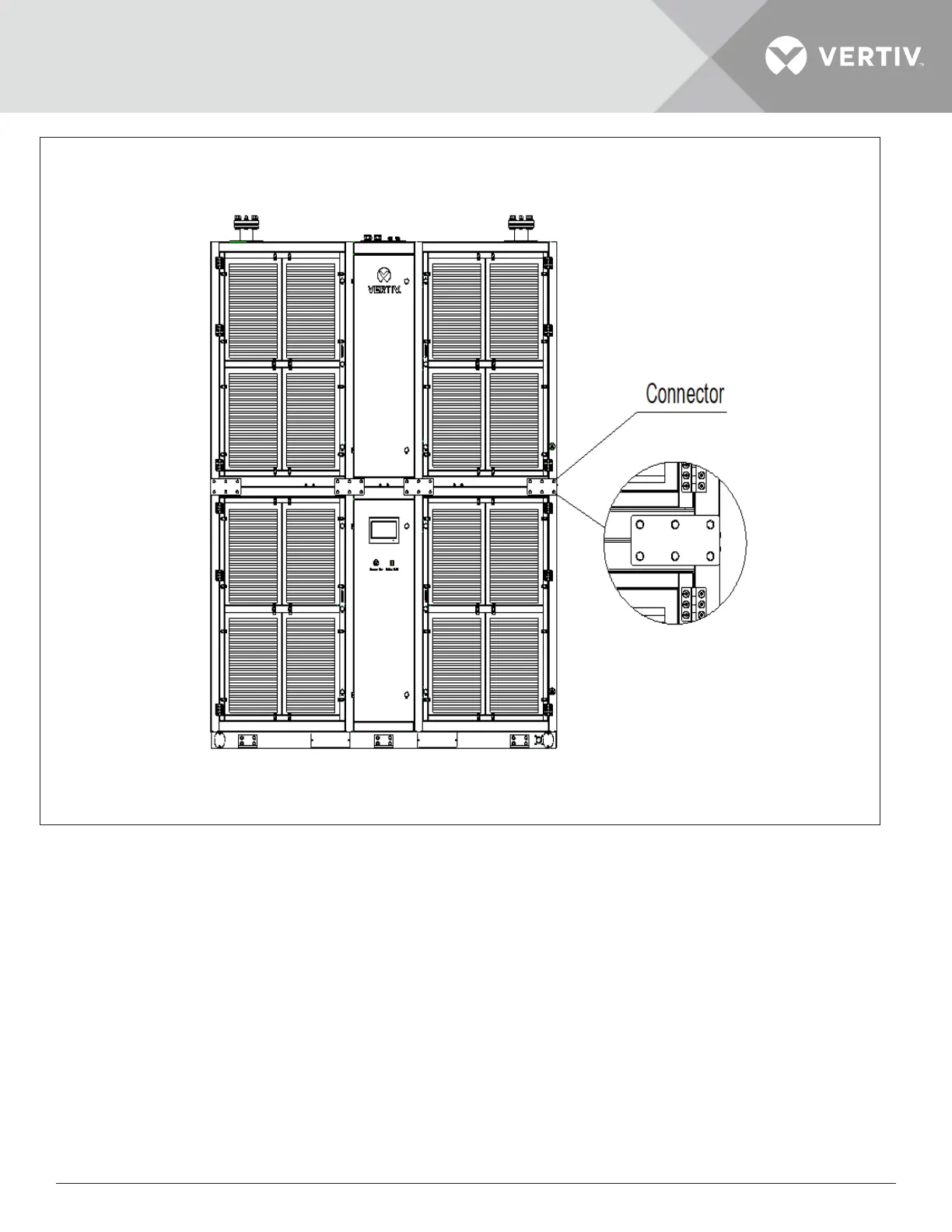

Figure 2-18 Sheet metal
For the sheet metal structure unit, after fixing the external connections of the unit, 4 M12 combination bolts are used to fix
the unit inside the unit. The fixing positions and bolts are shown in the Figure 2-19.
