2.3.5. Position and Dimensions of Air Outlet
The position and dimensions of the air outlet are shown in Figure 2-11 respectively.

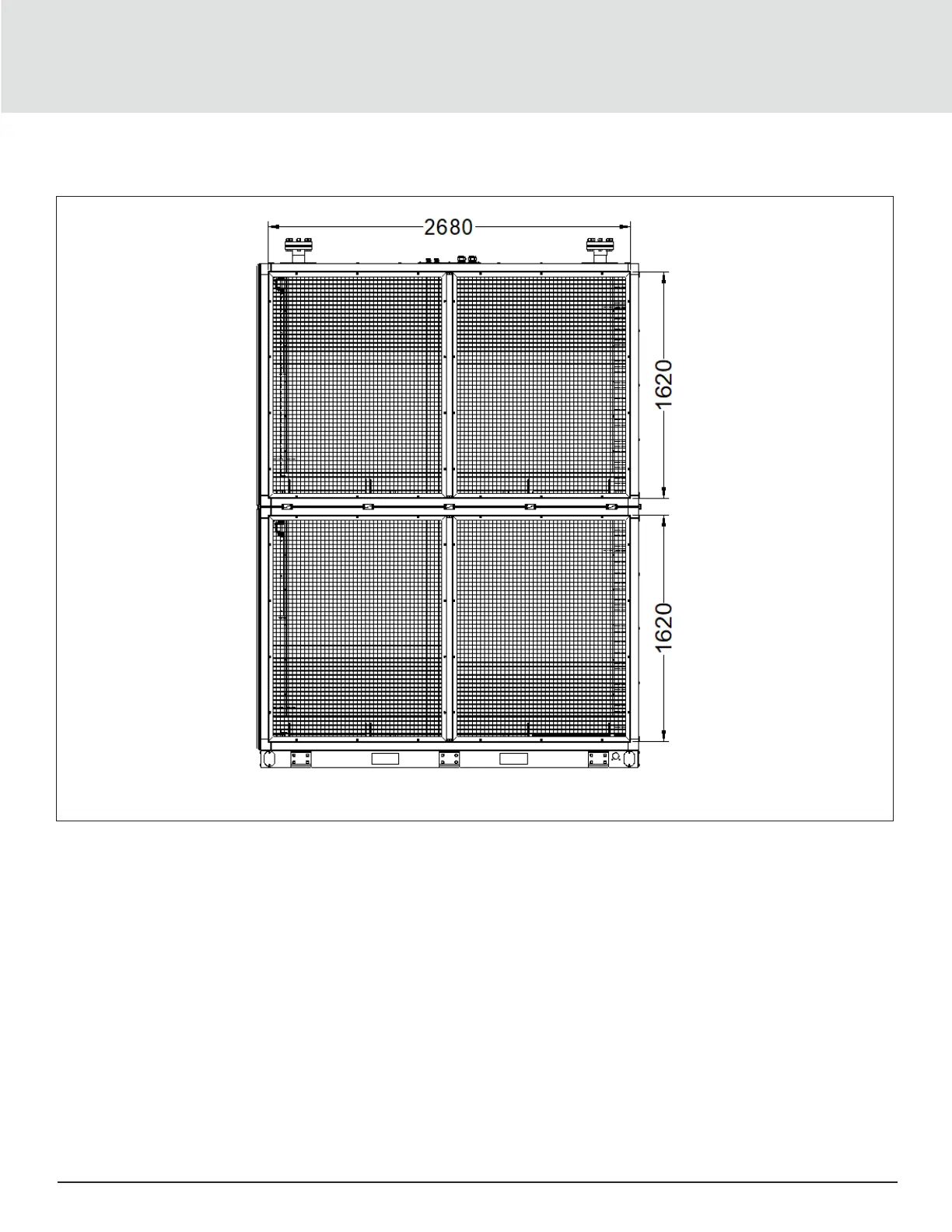

Figure 2-11 Air Outlet (unit: mm)
2.3.6. Position and Dimension of Air Inlet
The electric box is embedded on the return air side, and the electric box door of the lower cabinet is equipped with a
color display, emergency switch, and light switch. 16 filter screens are arranged at the return air outlet. The position and
dimensions of the air inlet are shown in Figure 2-12 respectively.
