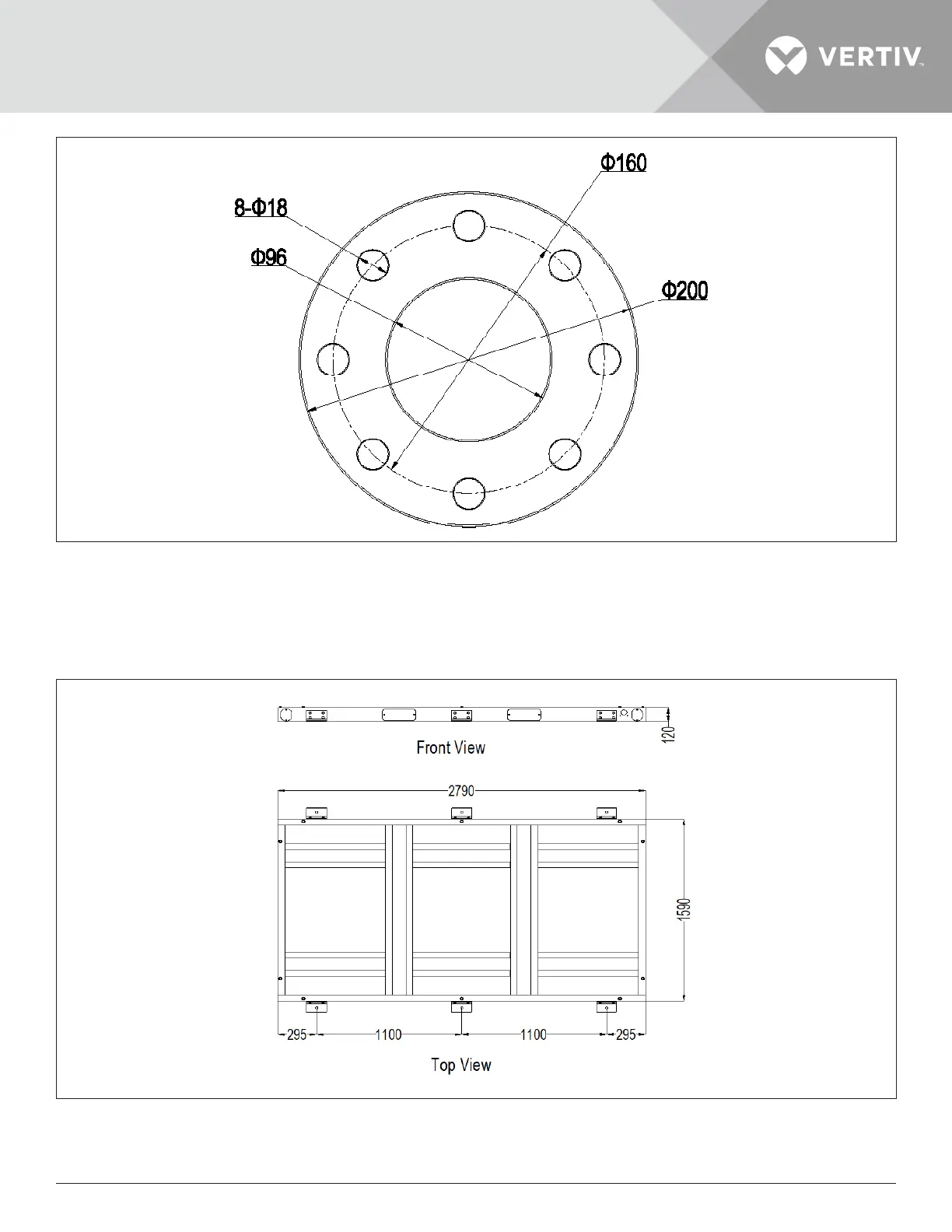

Figure 2-9 Inlet and Outlet Pipe Flange (unit: mm)
2.3.4. Position and Dimensions of Steel Base
The base dimensions are shown in Figure 2-10.
Figure 2-10 The Dimensions of Steel Base (unit: mm)
