Vertiv | Liebert® CRV4 | User Manual 32
Mechanical Installation

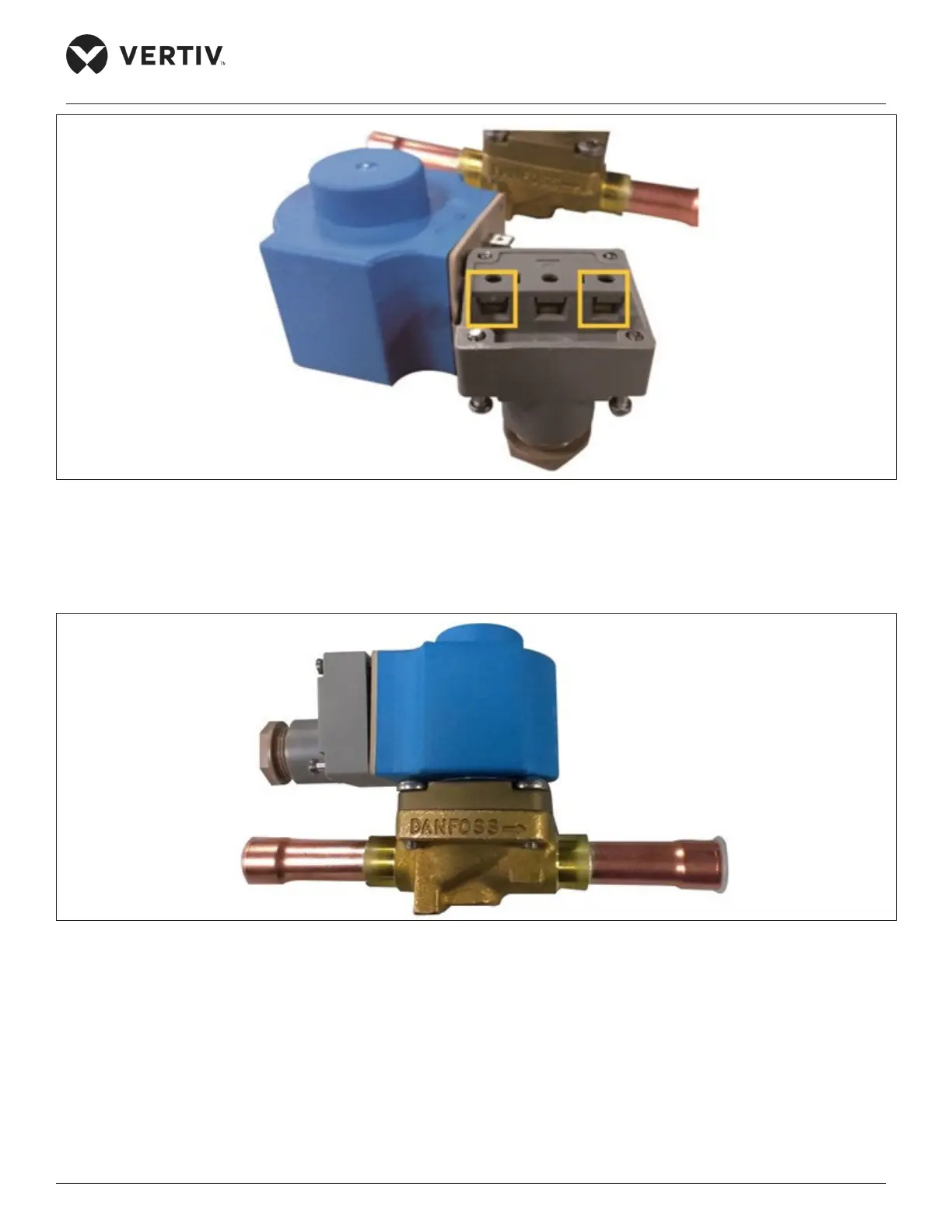

Figure 3-20 Position of Cable Terminals the Solenoid Valve
Finally, mount the coil on the valve body and press the coil tightly to ensure complete contact between the coil
and valve body is rmly done for better understanding refer Figure 3-21.
Figure 3-21 Assembly of the Coil and Solenoid Valve
