Vertiv | Liebert CRV+ | User Manual 62
Analog Signal
The Analog Signal displays the Temperature and Humidity of the device environment, pressure,
temperature, 3-ph voltage, and frequency relevant to the compressor in addition to adjustments of these
analog signals as depicted in Figure 3-20.

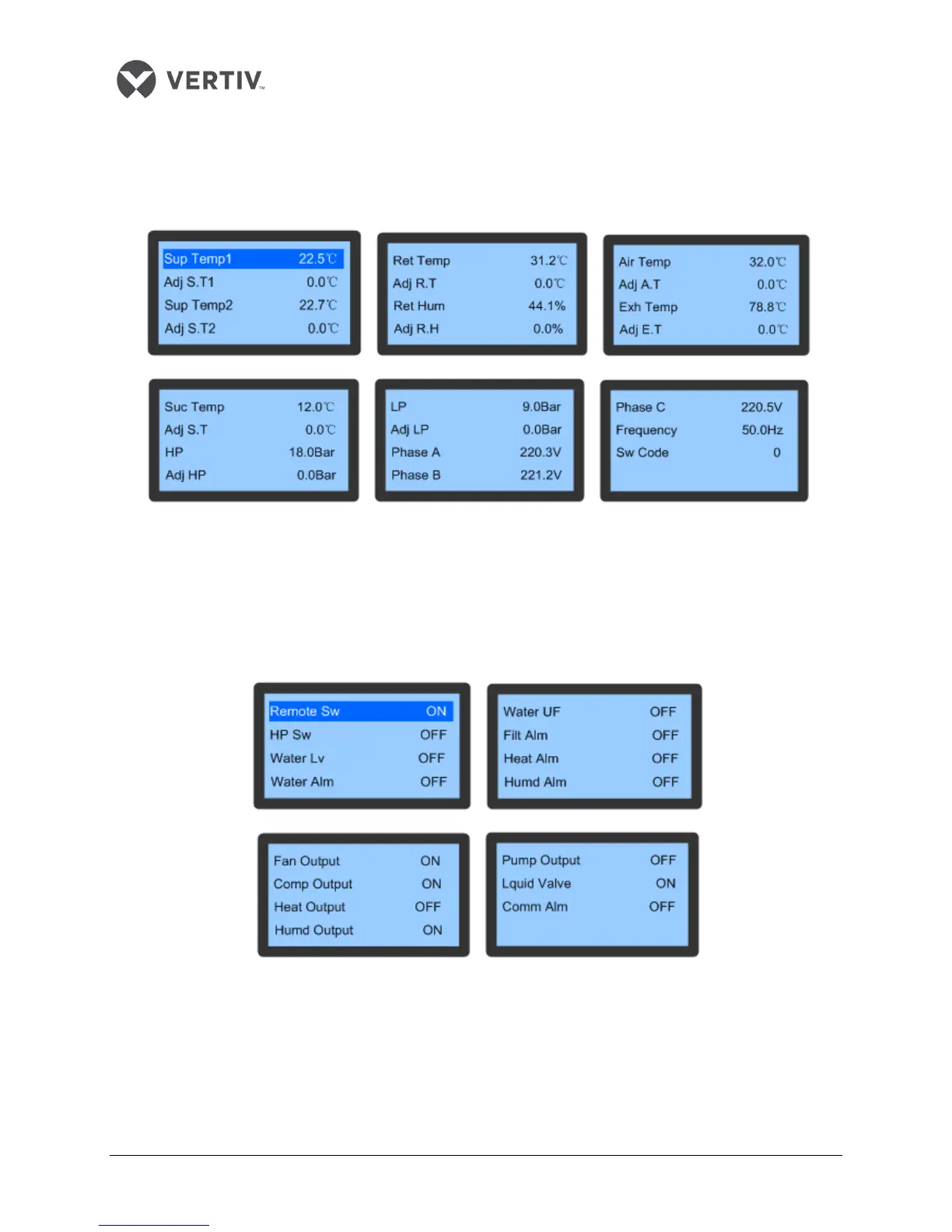

Figure 3-20 Analog Signals
Switch Signals
After going through the menu, the current input and output states of the devices can be viewed using the
Switch Signals utility.
Figure 3-21 shows the screen for the Switch Signals function:
Figure 3-21 Switch Signals
