Vertiv | Liebert CRV+ | User Manual 63

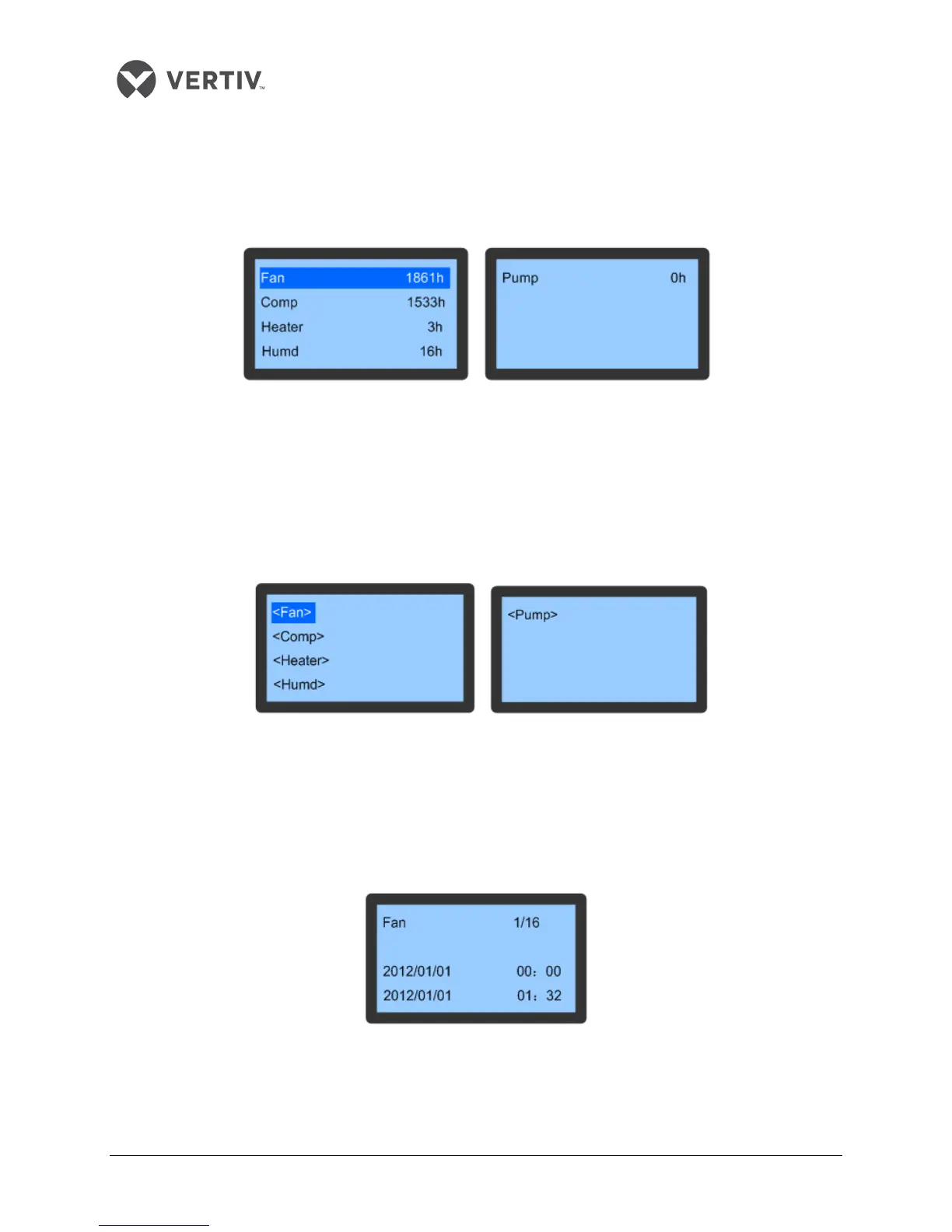

Run Time
The Run Time menu is depicted in Figure 3-22. The data on this screen will not be lost or cleared during a
power failure or when set the system to the OFF state. It indicates the running time of the components
through this menu.
Figure 3-22 Run Time menu
On/Off Record
Select the On/Off Record item on the System State screen following to access its menu. Users can view
the start and stop records of important components using this facility. The data will not be lost during the
power-off state or power failure.
Figure 3-23 depicts the On/Off Record screen:
Figure 3-23 On/Off Record menu
For example, select the Fan item on the On/Off Record screen. It will display the data in XX/YY format
where XX is the serial number of the start and stop record while YY is the total number of start and stop
records.
Figure 3-24 depicts the records of the fan component.
Figure 3-24 Fan records
