Vertiv | SmartAisle2 | User Manual 30
Installation
1. The Roof support mounting as shown in the Figure 2-15 and Figure 2-16 includes centering of the cabinet
bracket to the left using an L-shaped hexagonal wrench. This is to ensure that the stent plate is flushed with
the cabinet frame.

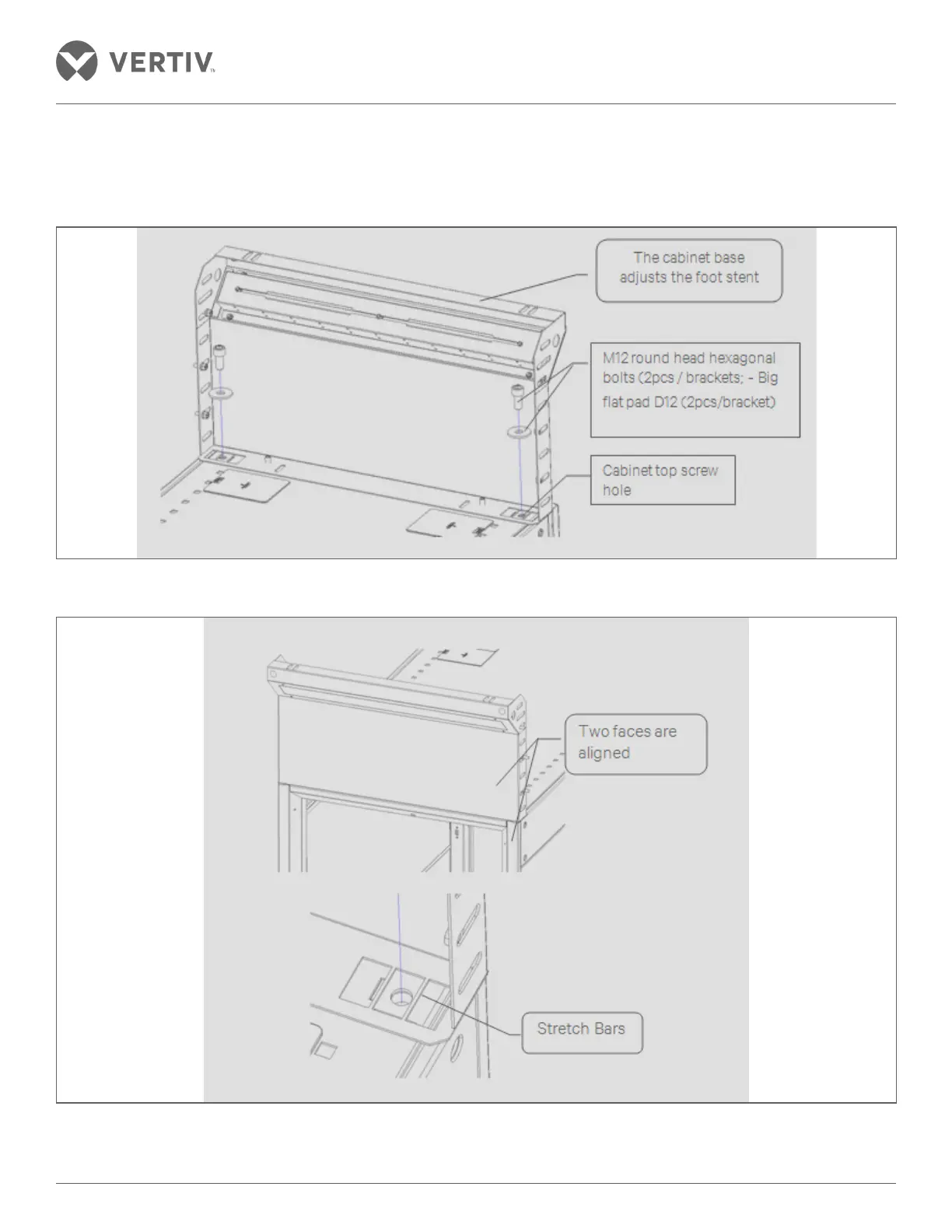

Figure 2-15 A schematic bracket mounting
Figure 2-16 Notes bracket installation
