Installation
• Support and center the cabinet to the left to facilitate subsequent installation and appearance.
• Passage stent side surface and the rear post flush is required to assist the installation and appearance.
• There are dierent specifications of the screw top of the cabinet. The cabinet stand is reserved for a variety
of modulus hole. If the screw is blocked, the roof scaold ribs overlap and need to be cut using a plier.
• For Asia FII in the cabinet, the fastener packages selected for the cabinet bracket belong to the FII (code:
02357590) only.
• Take utmost care while mounting the brackets as the falling bracket may even lead to severe injury to the
personnel.
2. The cabinet is connected with the support by a screw nut at three points. For a highly uniform stent enclosure,
ensure that at least one spacer hole is mounted.

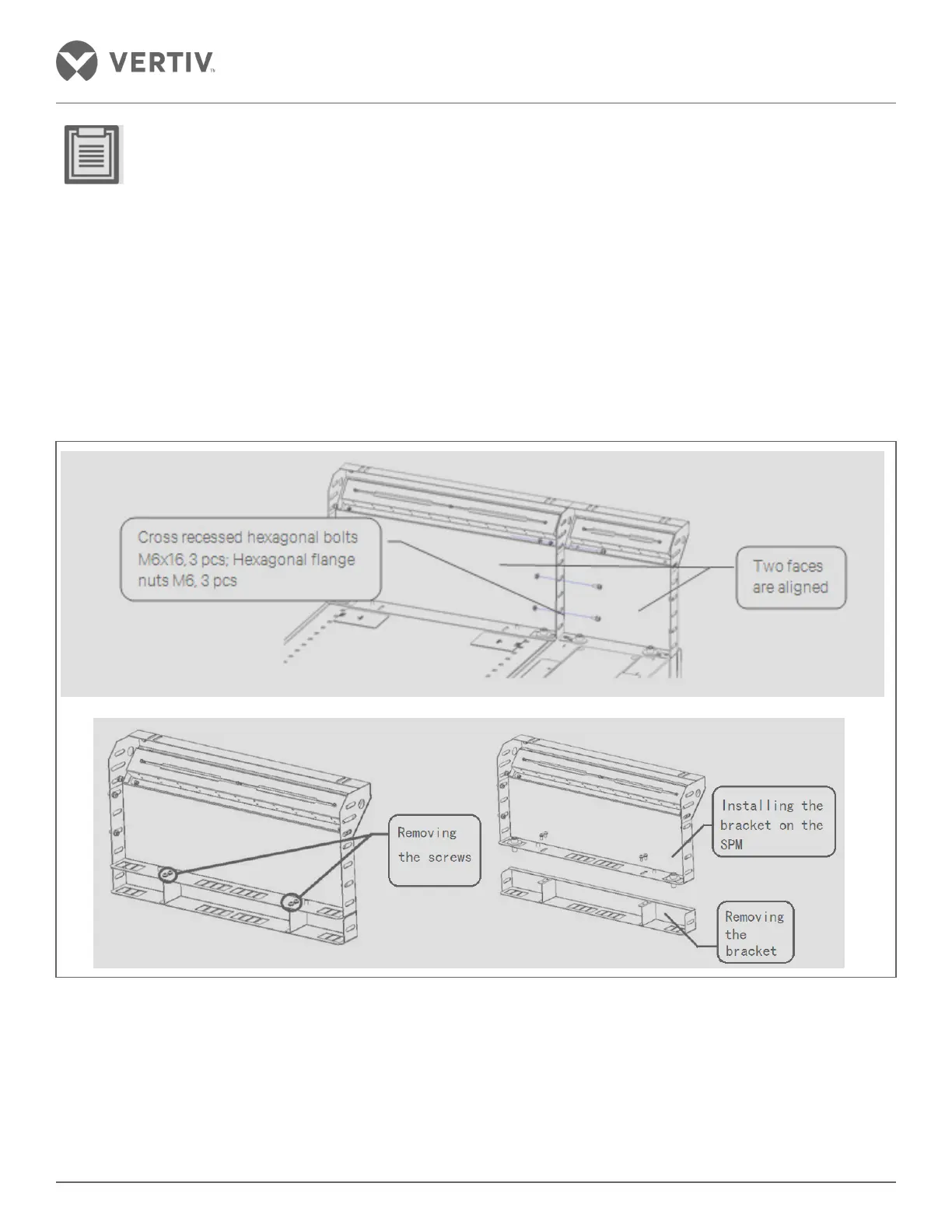

Figure 2-17 Roof mounting bracket
