Installation
• Ensure vertical alignment of the two supports while mounting the brackets so that there is no longitudinal
displacement or movement.
• There are five types of specification brackets , i.e. 300 mm wide cabinet mounting for 300 mm wide brack-
et, 600 mm wide cabinet mounting for 600 mm wide bracket, 800 mm wide cabinet mounting for 800 mm
wide bracket. In addition, the SPM requires a special bracket. Also, remove the height dierence of the seal-
ing plate. The SPM also adopts a special bracket corresponding to 600 mm and 800 mm cabinet enclosure
with five types of mounting brackets.
3. In roof installation preparation, remove the factory fitted limit screw from the top plate if the top plate is to be
opened in a pivot. The top plate doesn’t require any rotation for opening it.

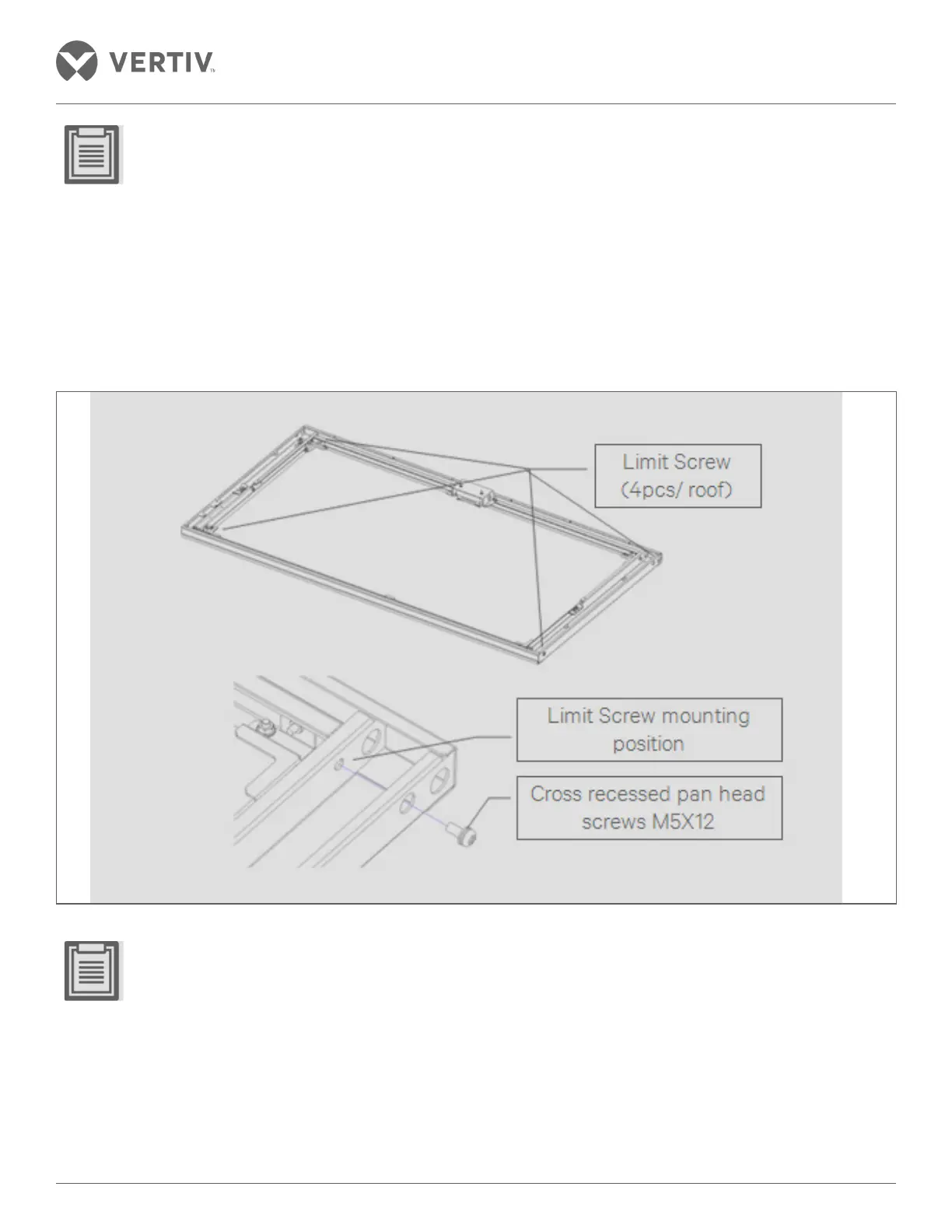

Figure 2-18 Ready to install Roof
• Limiting screw during the transport function provides a fixed rotation plate. Confirm that the four screws
are removed prior to use.
• The four screws that are removed can be utilized in the future.
