Installation
4. Moving forward, the open roof angle must be set. Remove the factory-fitted adjustment fixing plate and rotate
it at an angle. Once the corresponding pressing position results in the adjustment, fit the screw for the fixing
tabs.

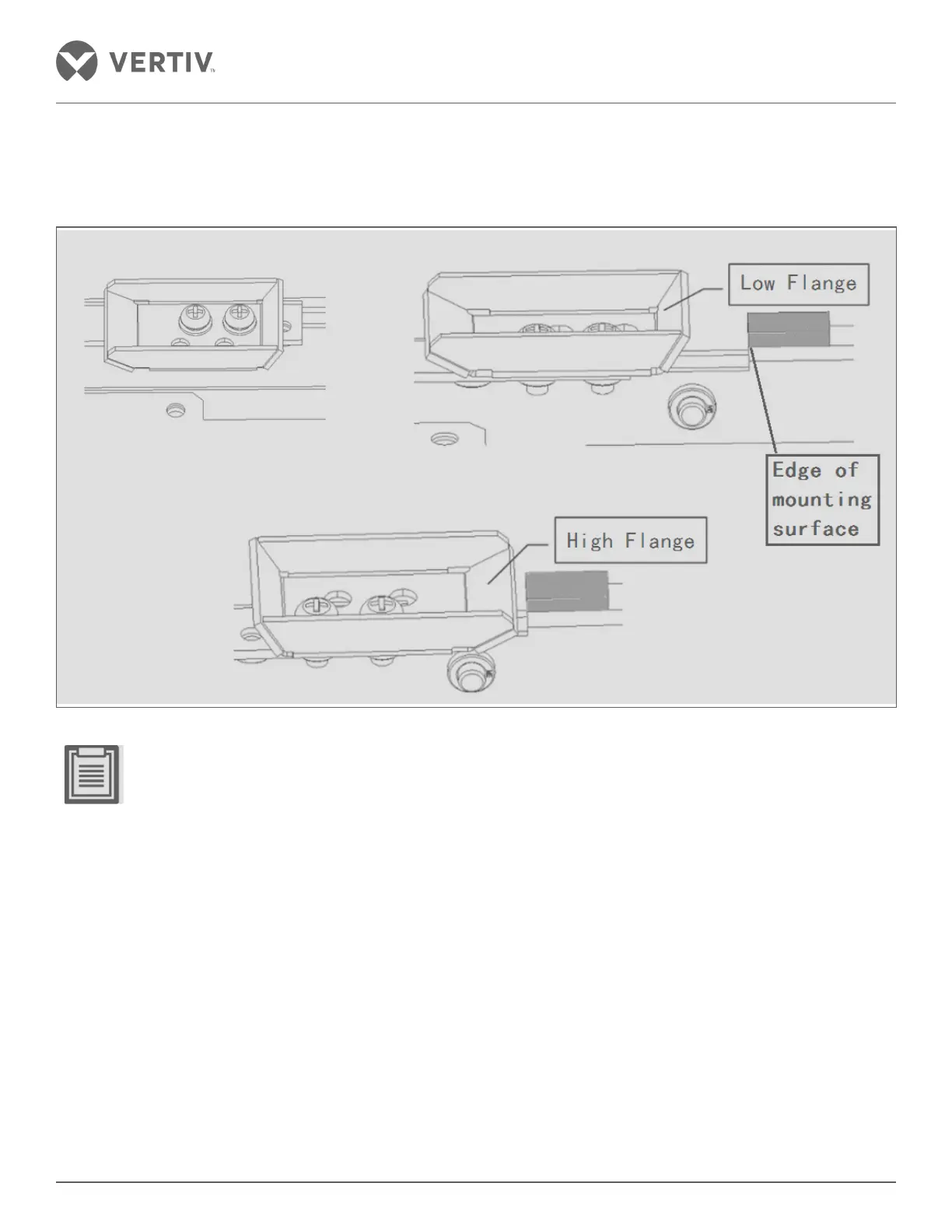

Figure 2-19 Open Angle Adjustment – left to right direction at an angle of 30° to 60°
• If the factory adjustment is such that there is no need to adjust the angle, skip the preceding step.
• Low flange extends out of the mounting surface edge at a roof opening angle of 30 degree; high flange
extends out of the mounting surface edge at a roof opening angle of 60 degree; either high or low flange do
not extend out of edge indicate roof open angle maximum.
• By timely fixing the screws, the position of the tab moves up thereby helping to avoid the influence of the
rotation adjustment tab.
