Vertiv | SmartAisle2 | User Manual 36
Installation
Following is the procedure for installing the electric gates:
• The electric sliding door configuration comprises of an automatic door, glass door (including hanging folders),
box door, and the frame structure as illustrated in Figure 2-22.

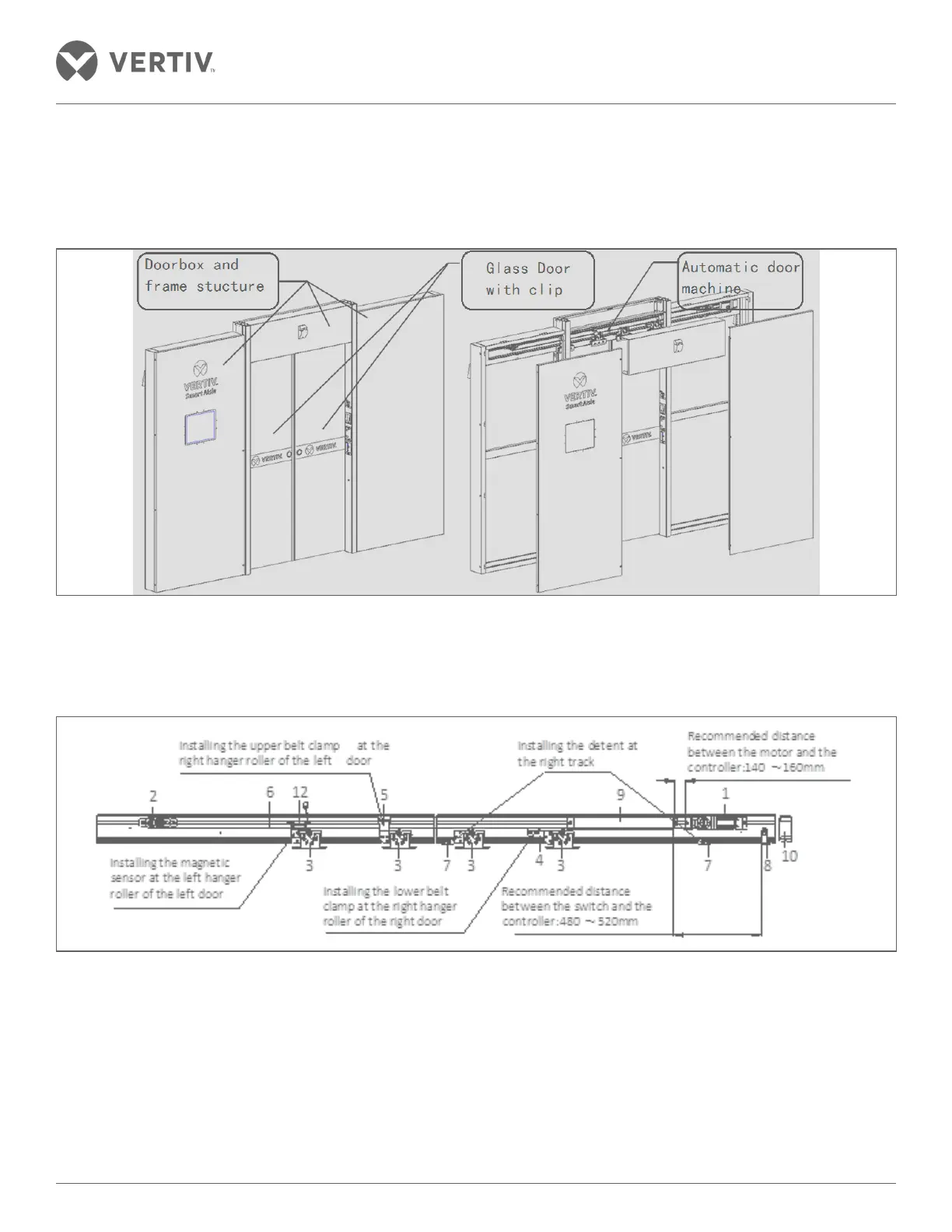

Figure 2-22 Electric sliding door configuration
• An automatic door system comprises the various parts as described in Figure 2-23 and Vertiv recommends
the installation of the aluminum groove member.
Figure 2-23 Naming of parts in an automatic door system
