Installation

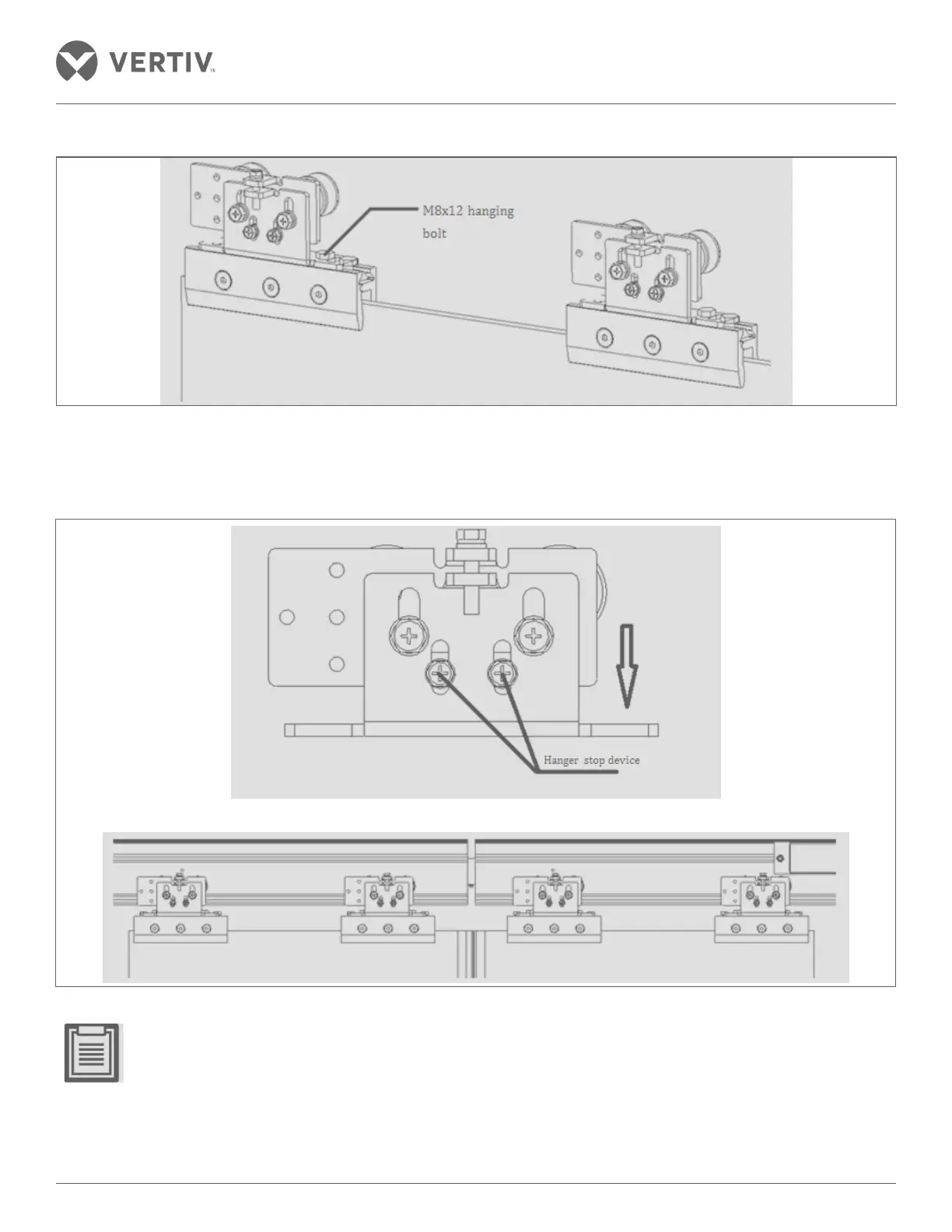

Figure 2-39 Hanger installation
• Loosen the mounting bolts of the hanger stopper and lower the hanger stopper to hang the hanger pulley
onto the guide rail.
Figure 2-40 Glass door with the hangers
• Prior to installation, ensure the glass door is connected accurately, else it will fall out.
• On unscrewing the suspension bolt, the glass door slider within the holder may slide out and fall.
• Pay attention to the assembly direction of the hanger and the glass clamp; ensure that the bolt head of the
glass clamp is positive..
