• Glass Door Adjustment – For this process, the following steps need to be implemented, namely – loosen the
fixing bolt. Adjust the height using the adjusting bolt (M6). (Clockwise rotation, door rising. Counterclockwise
rotation, door descending.). Tighten the fixing bolts. After confirming the gap with the lower part of the
guide rail, attach the pylon detachment device firmly. Note that the clearance is 0.5 mm. Confirm the walking
resistance. [Confirm that one index finger can move the door leaf with a walking resistance of less than 5.88 N
(600 gf)]. Move the door and check whether the hanger device can slide on the rail.

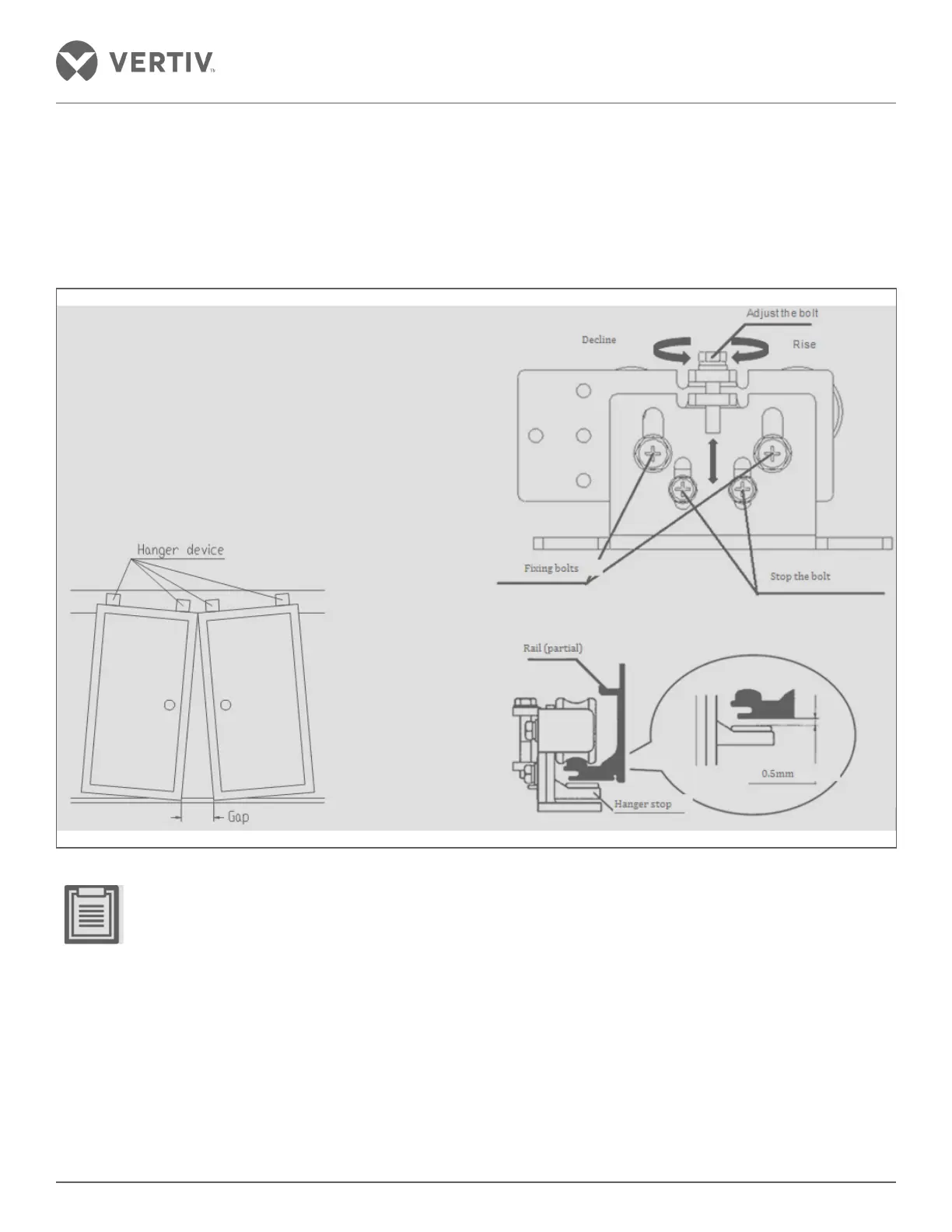

Figure 2-41 Glass door adjustment
• Whether hanger assembly is vertically mounted on the door.
• Minimum sliding friction between the lower portion with a bottom door leaf.
• Hanger assembly to ensure that there is minimum friction between the guide rails and the motion assembly.
• Check for friction between the hanger assembly and the horizontal frame.
• Check for friction between the door and the door frame.
