Vertiv | SmartAisle2 | User Manual 49
Installation

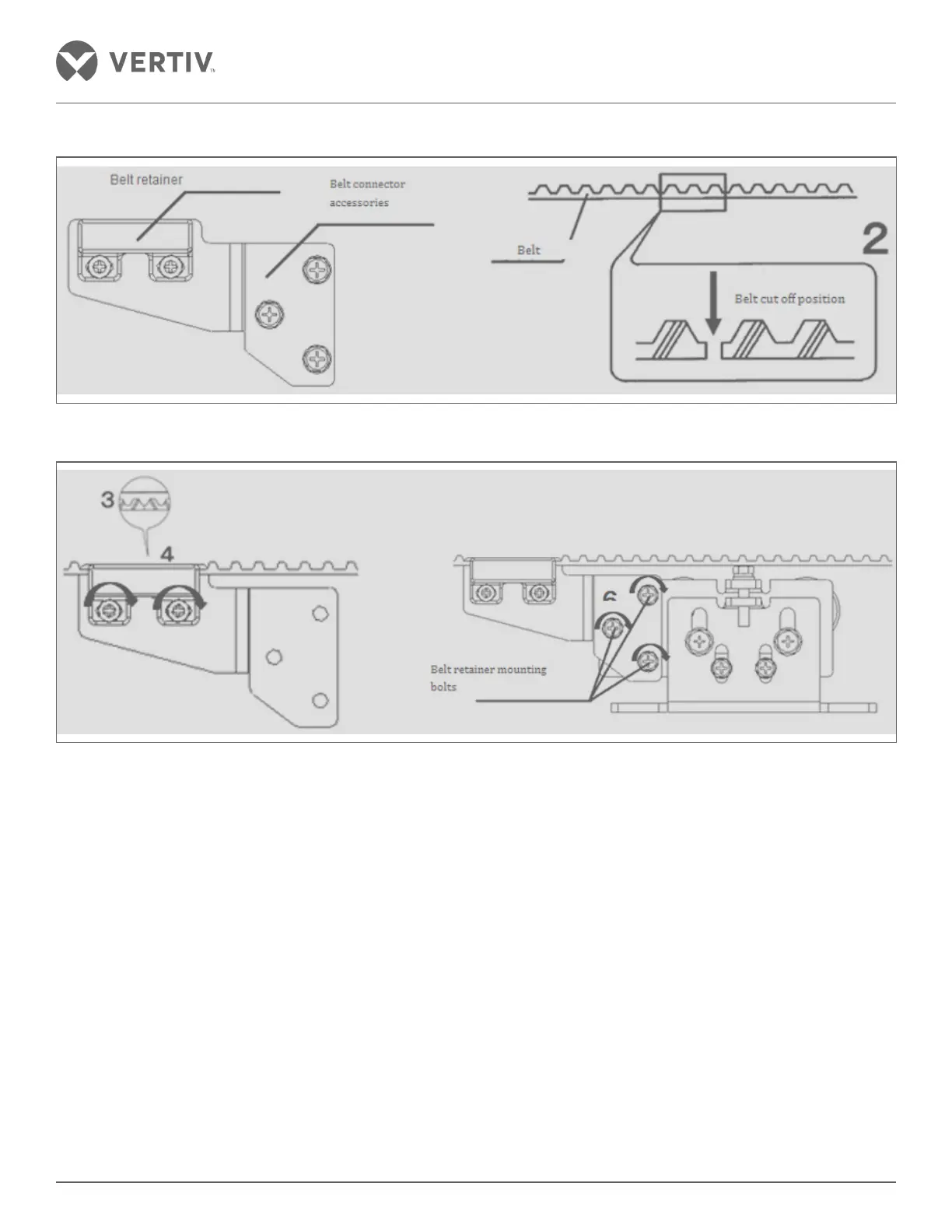

Figure 2-43 Belt cut o and installation
Figure 2-44 Lower fixed belt
» Refer to Figure 2-43 and Figure 2-44 to attach the belt retainer to the belt and bolt B to fix the belt
retainer on the upper belt joint fitting.
» Use the included belt fixing device mounting bolt (M6 x 12) to attach securely to the hanger device and
secure it.
» After adjusting the position of the door, tighten the bolt B.
» Remove the upper belt holder bolt B (M5) and remove it from the upper belt joint fitting.
» Refer to Figure 2-47 for the mounting position of the belt anchor which hosts the belt following which the
belt B is fixed with bolts in the double-open type belt fixing fittings.
» A belt fixing device, using the supplied mounting bolts (M6 x 12 with spring washers) is securely attached
with the hanger means, is securely mounted.
» Ensure that the bolts are firmly mounted using a wrench or socket wrench.
» After adjusting the position of the door, the bolt B is screwed.
