Vespa LX 50 Workshop Manual

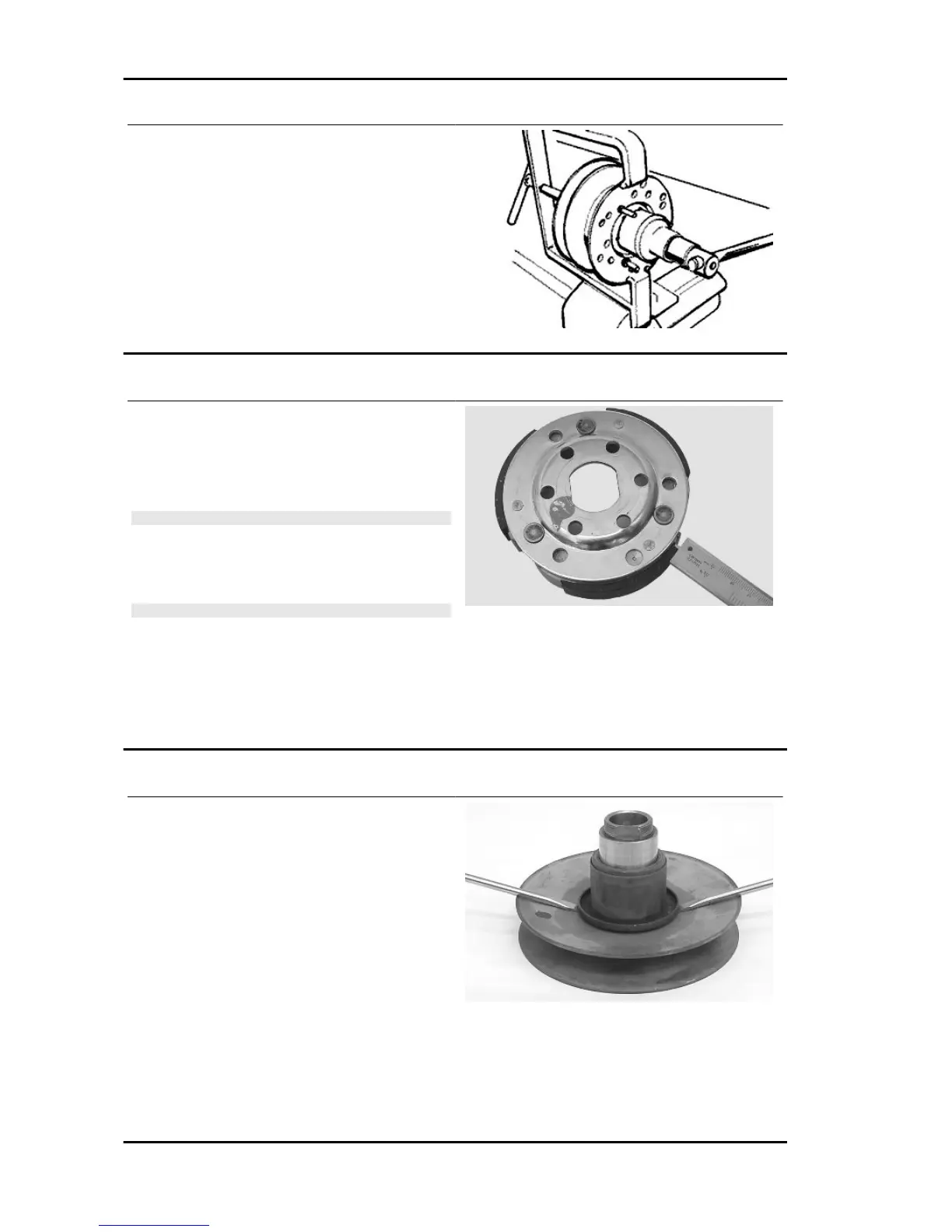

- Using a 34 mm socket wrench remove the clutch
locking nut.
- Loosen the central screw thereby undoing the
driven pulley unit
- Separate the components.
Specific tooling
020444Y Tool for fitting/ removing the driven
pulley clutch
Inspecting the clutch
- Check the thickness of the clutch mass friction
material.
- The masses must not show traces of lubricants;
otherwise, check the driven pulley unit seals.
N.B.
UPON RUNNING-IN, THE MASSES MUST EXHIBIT A CEN-
TRAL FAYING SURFACE AND MUST NOT BE DIFFERENT
FROM ONE ANOTHER.
VARIOUS CONDITIONS CAN CAUSE THE CLUTCH TO
TEAR.
CAUTION
DO NOT OPEN THE MASSES USING TOOLS TO PREVENT
A VARIATION IN THE RETURN SPRING LOAD.
Characteristic
Check minimum thickness
1 mm
Pin retaining collar
- Remove the collar with the aid of 2 screwdrivers.
Engine Vespa LX 50
ENG - 64

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
