NM & PG PLUS FID STATIONS
USER MANUAL
Version 1.03.0000
www.vicidbs.com

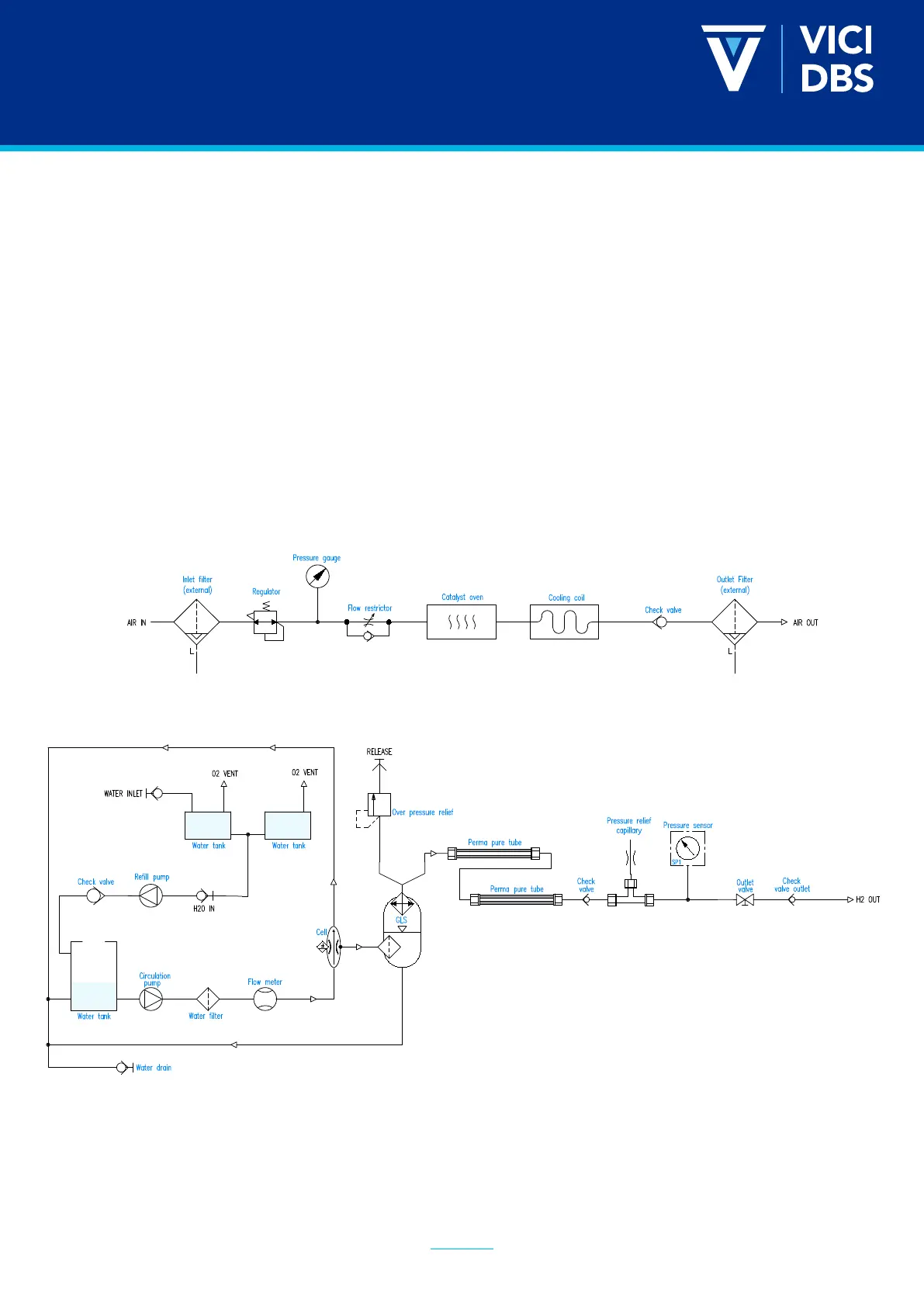

5.4. SCHEMATICS
5.4.1. Fluidics
The hydrogen generator produces pure hydrogen (and oxygen as a by-product) through the electrolysis of
water. The key element of the generator is an electrochemical cell assembly which contains a solid polymer
electrolyte. No free acids or bases are used. Deionized or pure distilled water is the only liquid which will be in
contact with the cell. Since water is consumed it must be relled from time to time as required. The generated
hydrogen gas is accumulated in the hydrogen/water separator and the desiccant housing. The internal
pressure is controlled by a pressure transducer. The outlet pressure is controlled by a proportional valve. The
hydrogen is dried by passing through the automatic dryer. The hydrogen then passes through the outlet port
at the rear.
Air from the external compressed air source goes rst trough an external dust lter. Then it will pass through a
catalytic oven that will remove the CO and CH4. After cooling, the air is ready.
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:
PG Plus FID-Station
water and hydrogen flow diagram
06.10.2020
06.10.2020
SBU
SB
1
1/1
PG Plus Fluidics - Zero Air Part
PG Plus Fluidics - Hydrogen Part
To Next Page
