NM & PG PLUS FID STATIONS
USER MANUAL
Version 1.03.0000
www.vicidbs.com

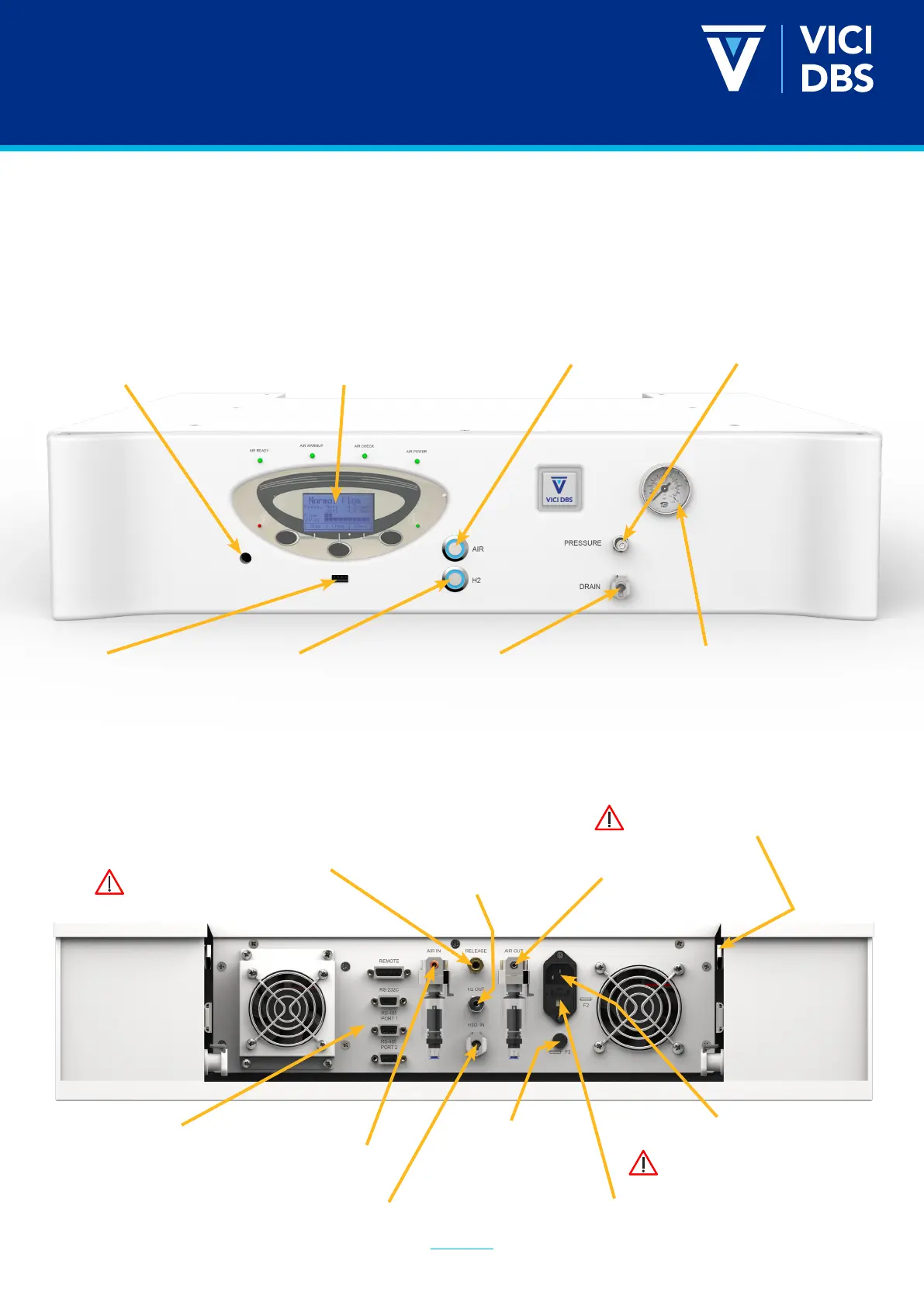

5. PRESENTATION OF THE DEVICE
5.1. FRONT VIEW
Touch display to control and
manage the generator
Zero air manometer
Water drain
Power on/off for
H2
Status LED for zero
air generator
Zero air pressure regulator
USB port
Power on/off for
zero air
5.2. Back View
Outlet H2 Relief Valve
110/230 V Inlet CEI C14
Fuse Holder 3
I/O Board Option
Hydrogen Outlet
Volt Selector with F2 Fuse Holder
Zero Air Inlet
Water Inlet
Remove Plug Before Use
Set the Correct Fuses
Zero Air Outlet
Outlet Vent O2 G 1/8” Female
Remove Plug Before Use
