NM & PG PLUS FID STATIONS
USER MANUAL
Version 1.03.0000
www.vicidbs.com

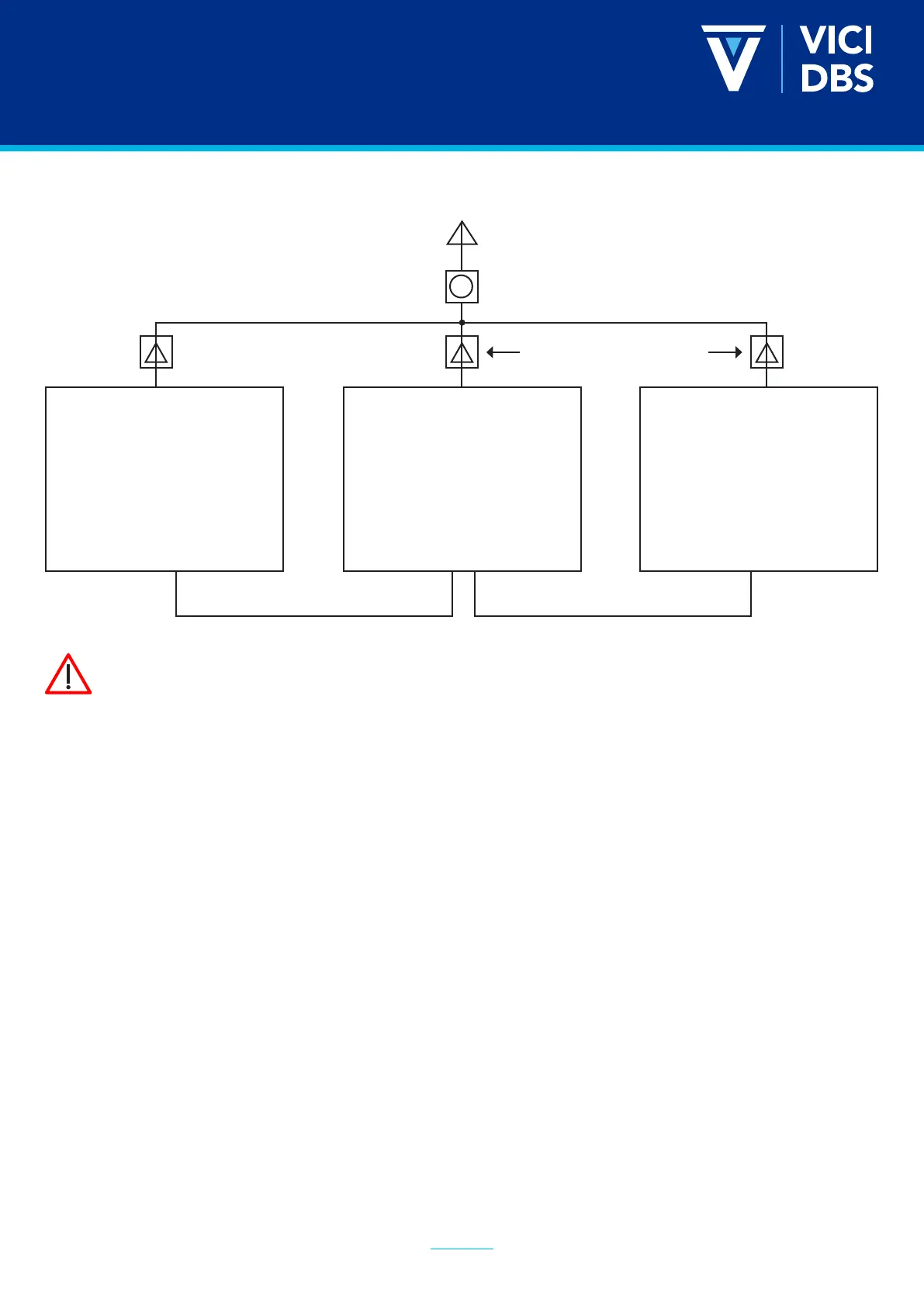

GAS LINE
PRESSURE CONTROLLER
NON RETURN VALVE NON RETURN VALVES
H2 OUT
GENERATOR 1
H2 OUT
GENERATOR 2
H2 OUT
GENERATOR 3
CONFIGURATION
Cascading Mode: YES
N. Gen H2 in Cascading: 3
ID Number: 1
RS-485 Port 1 RS-485 Port 2
CONFIGURATION
Cascading Mode: YES
N. Gen H2 in Cascading: 3
ID Number: 2
RS-485 Port 1 RS-485 Port 2
CONFIGURATION
Cascading Mode: YES
N. Gen H2 in Cascading: 3
ID Number: 3
RS-485 Port 1 RS-485 Port 2
The cascading function will only work properly if the gas outlets on all the generators are
connected to the same gas line.
