13
NM & PG PLUS FID STATIONS
USER MANUAL
Version 1.03.0000
www.vicidbs.com
NM Plus Electronics
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:

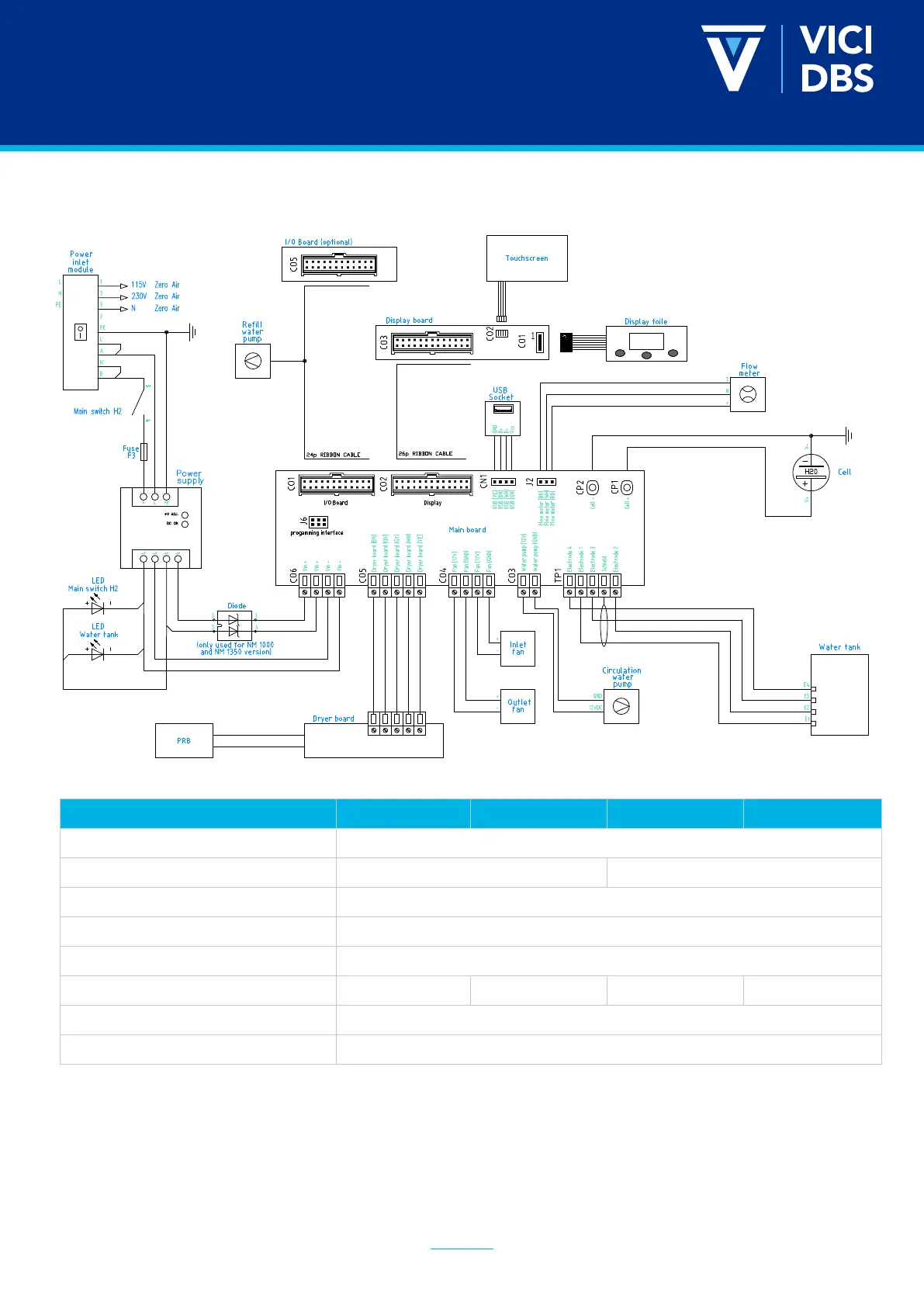

NM Plus FID-Station with PRB
electrical diagram
20.04.20
08.06.20
SBU
SB
1
1/2
NM FID STATION 100 300 600 1000
Power Inlet DB-H200-045
Power Supply DB-PH200-003 DB-PH200-004
IO Board DB-10155
Display Board DB-10648
Display Membrane DB-H200-042
Mainboard DB-RH201-001 DB-RH204-001 DB-RH206-001 DB-RH207-001
Inlet Fan DB-H200-040
Outlet Fan DB-H200-040
