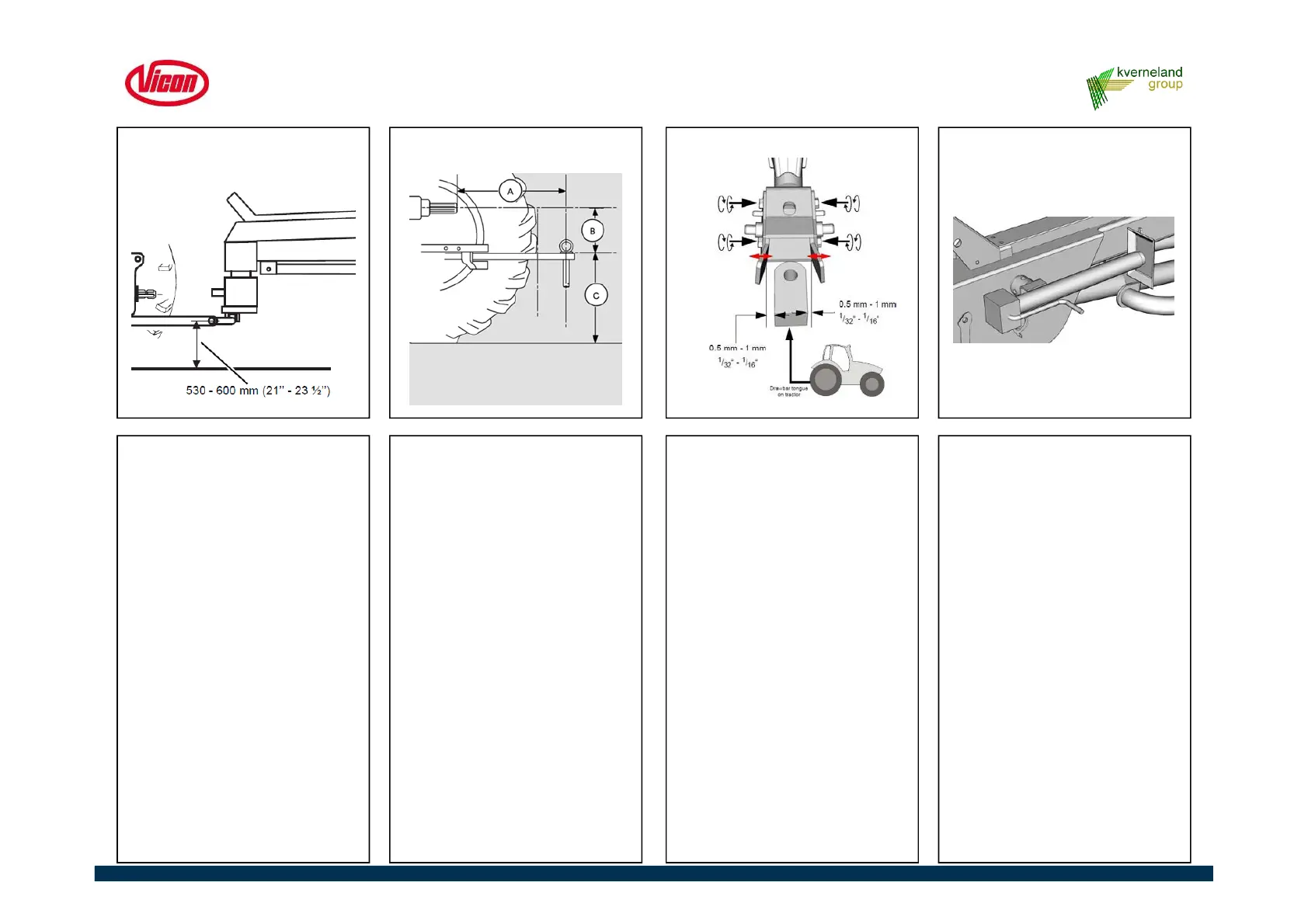

Attachment of the tractor
Clevis Coupler on the lower
link crossbar
Attachment of the tractor
Attachment of the Quick
Coupler.
• Adjust the tractor's lift arms to
the height shown.
• Fit the PTO.
Attachment of the tractor
In order to connect machines in
compliance with ISO 6489-3, the
following shall be observed:
• (A) Distance between the
P.T.O. shaft and the
connection point on the
drawbar tongue: approx. 356
mm (14”).
• (B) Height between the P.T.O.
shaft and the connection point
on the drawbar tongue:
approx. 203 - 305 mm (8 -
12”).
• (C) Height between the
ground and the drawbar
tongue: approx. 400 mm (15
3/4”).
Clevis Coupler on the lower
link crossbar
Adjust the plates to tighten the
coupling against the lower link
crossbar until you reach a play
of 0,5 mm - 1 mm (1/32“ - 1/16“ )
Attachment of the tractor
Parking stand
Connect the machine to the
tractor.
• Secure the coupling using the
locking pin.
• Remove the parking foot from
the bracket and install it on
the holder on the side of the
drawbar.
