Changing oil
Changing oil
• Drain plug is located on LH
bottom side of the cutter bar.
• Remove the filling and the
drain plug.
• Let the oil flow into a suitable
container.
• Allow the last of the oil to drip
out of the cutter bar for
approx. 10 - 15 minutes.
• Fit the oil plug and tighten it
securely on the cutter bar.
Draining oil
Filling with oil
Changing oil
Changing oil
Draining oil
Draining oil
• Activate the tractor hydraulics
and raise the machine's cutter
bar fully.
• Close the mechanical safety
valve.
• Open the machine's front guard.
After the first 50 hrs. thereafter
every 200 hours or once a year.
• Place a wooden block or similar
under the right-hand wheel of
the machine so that the
machine tilts slightly to the left.

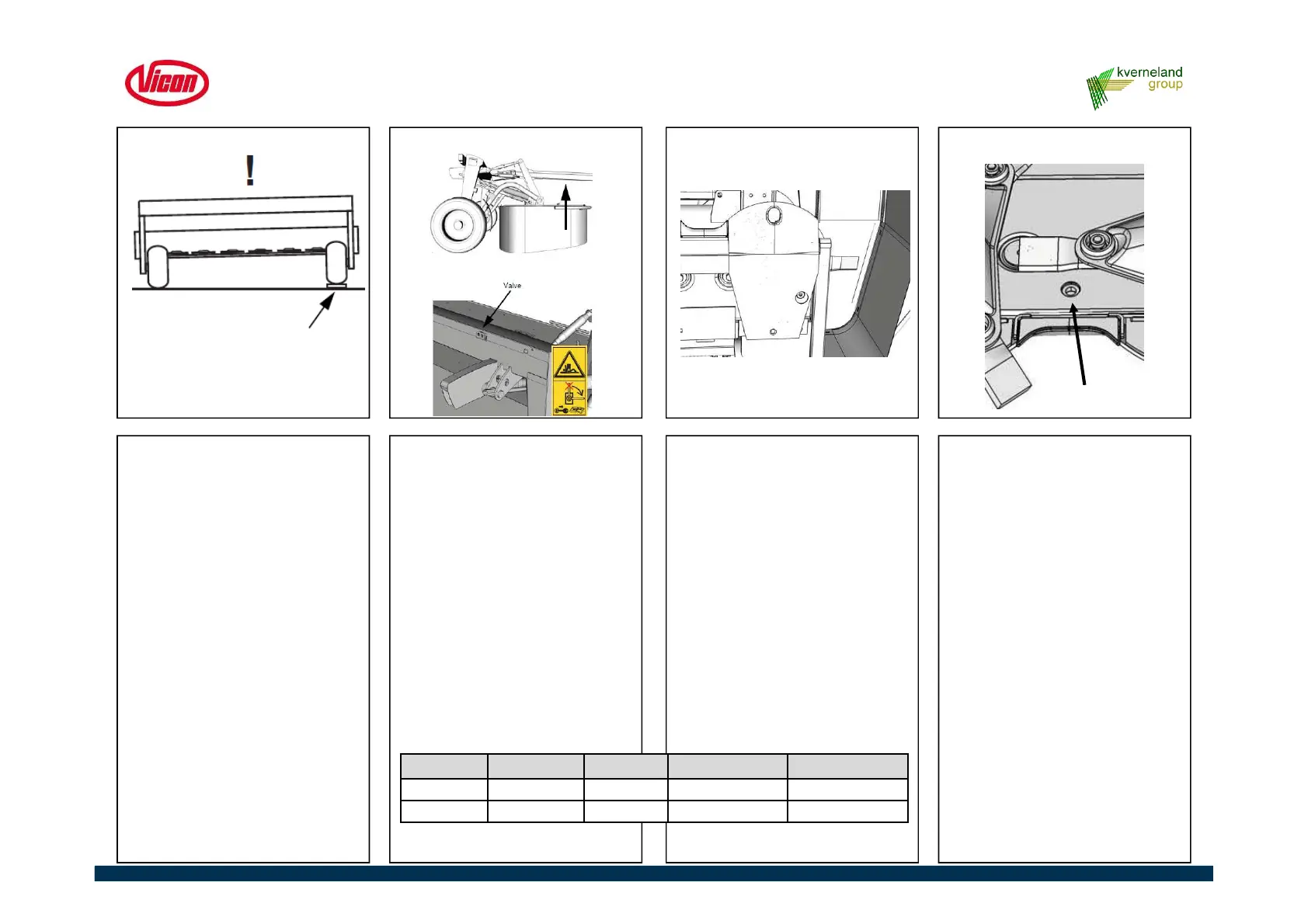

4.8.3 Oil change cutter bar
78
Cutter bar No. of disc Ltr. US Pints Imp. Pints
Extra 532 8 3.1 6.6 5.5
Extra 540 10 3.0 6.3 5.3
• Lower the machine back down to
the working position.
• Remove the filling plug; and fill
the cutter with the recommended
amount of oil.
• Fit the filling plug back again.
Note; Don’t overfill!
For the cutter bar always use
SAE GL4 EP 80
