Vicon Extra 532 - Lifting Cylinders

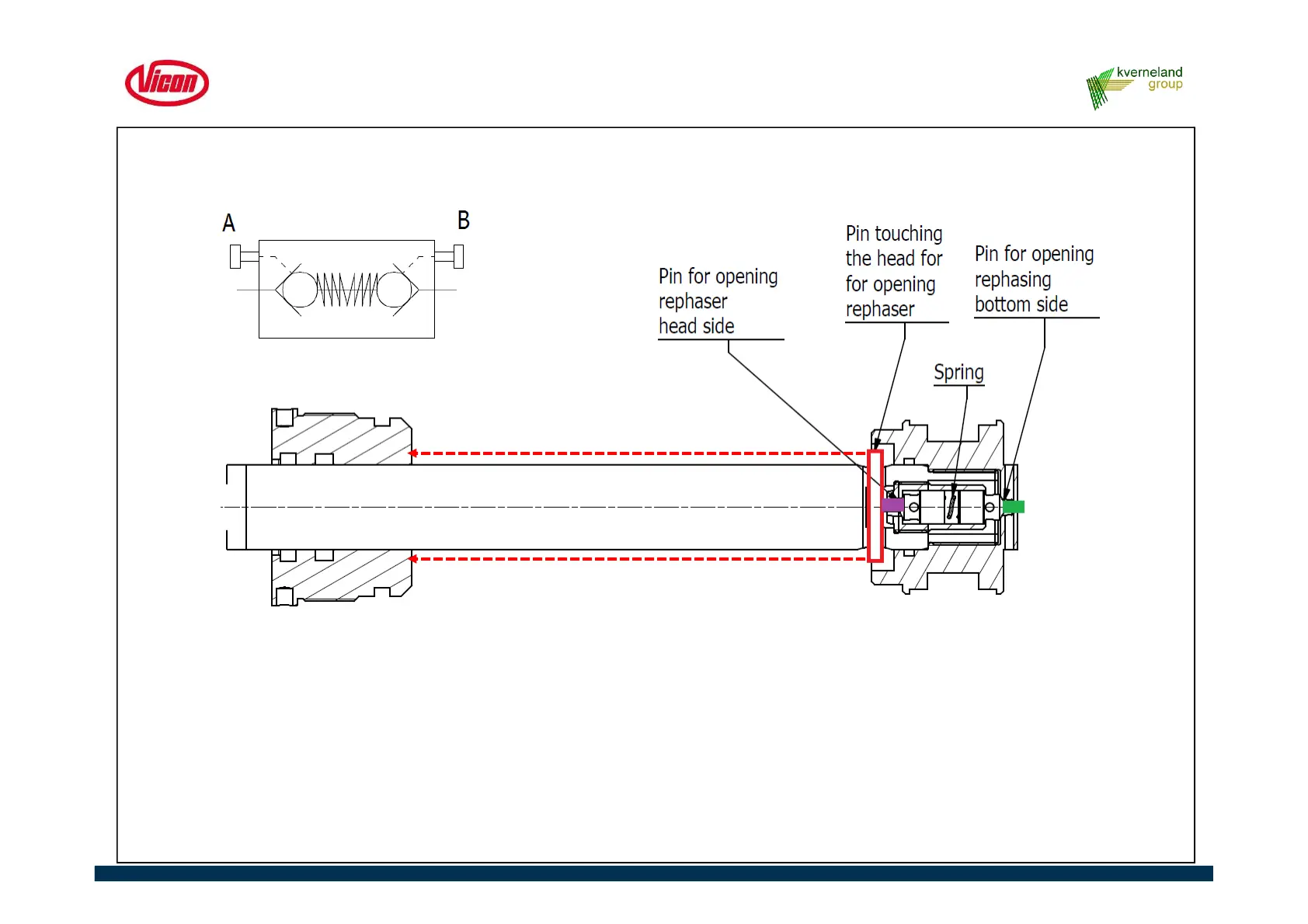

Lifting cylinder; mechanism inside
Filling of the cylinder;
• Cylinder complete in = machine lifted in transport position;
green pin will touch the bottom side and opens the valve to fill the cylinder with oil.
• Cylinder complete out = machine on the ground in working position; (best way to do)
red pin will touch the head side and will push against the purple pin to open the valve.
4.2.1 Lifting cylinder
35
