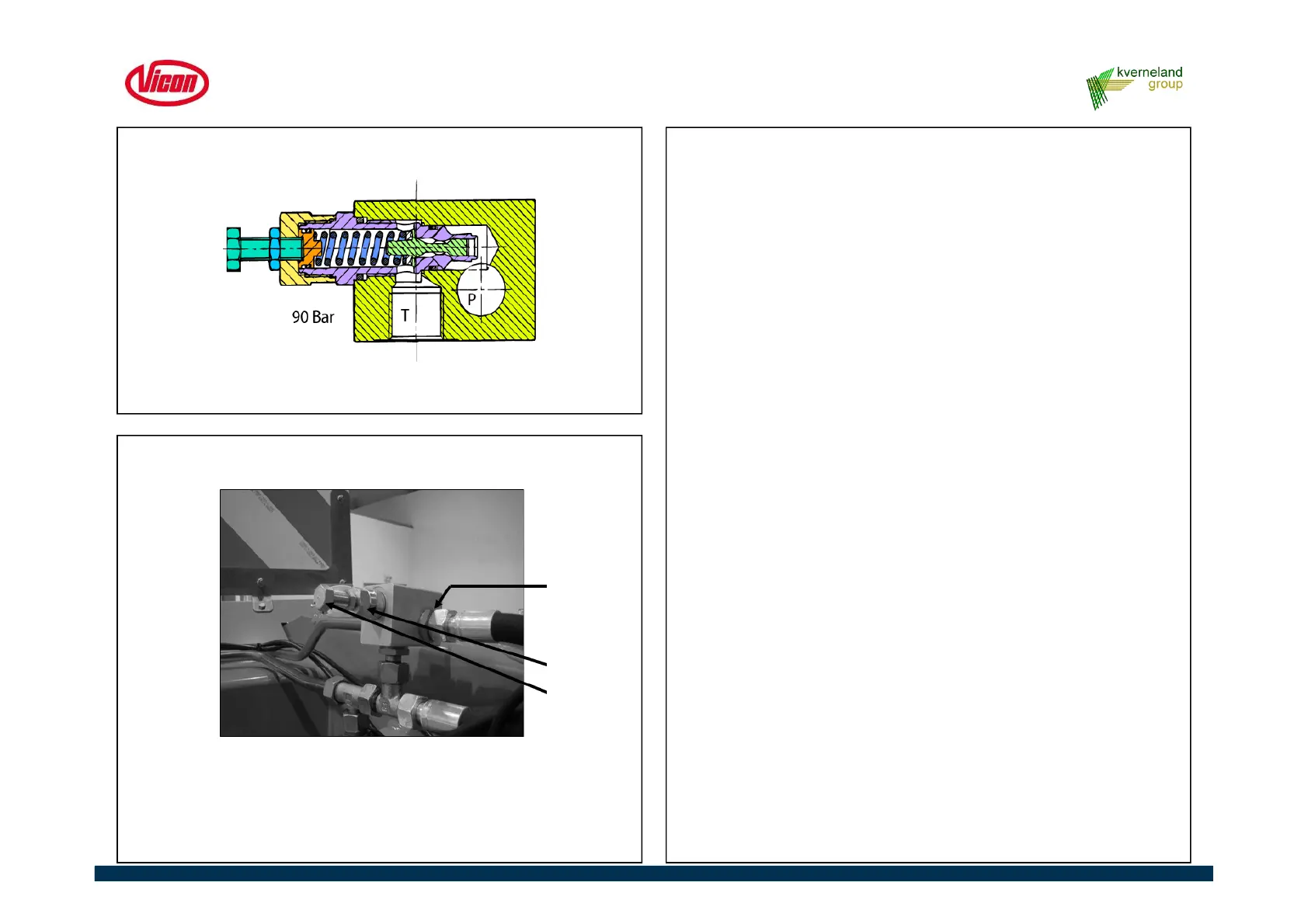

How to set inline relieve valve.
• The in line relief valve is factory set to open at 90 bar
(1300 PSI) at 50 l/min (13,2 gallon)
• For resetting the valve;
A. Fit a pressure gauge between hose and valve
Lower the machine with 50 l/min. (13,2 gallon)
B. Loosen the counter nut
C. Set pressure to 90bar by turning bolt; after
setting retighten the counter nut.
Inline relieve valve.
Inline relieve valve.
4.4 Inline relieve valve.
