Vicon Extra 532 - Maintenance - Swivel Hitch (Lower)

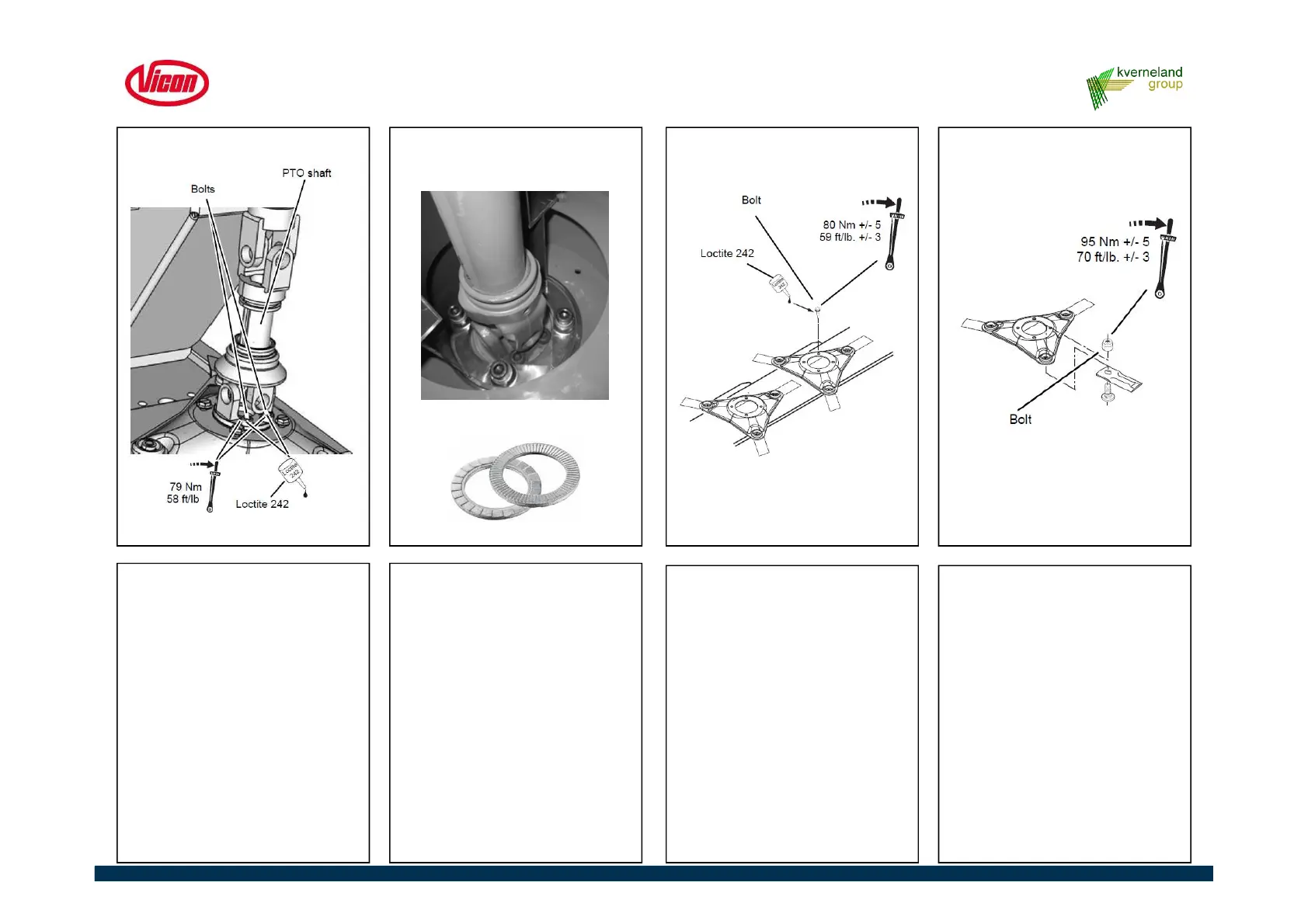

PTO shaft cutter bar Discs BladesCone
• Fit the bolts and tighten to the
torque shown.
• Apply Loctite 242 or a similar
product to all bolts.
• Fit the bolts together with the
Nor-Lock washers ( Is a set of
2 washers with the wide ribs
on the inside!) and tighten
them to the torque shown.
• Apply Loctite 242 or a similar
product to all bolts.
• Fit the bolts and tighten to the
torque shown.
Torque PTO
Torque discs
Torque blade bolts
Torque Cone
Torque 90 Nm (67 ft /lb)
• Apply Loctite 242 or a similar
product to all bolts.
• Fit the bolts and tighten to the
torque shown.
4.8.2 Cutter bar-maintenance
75
