Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)

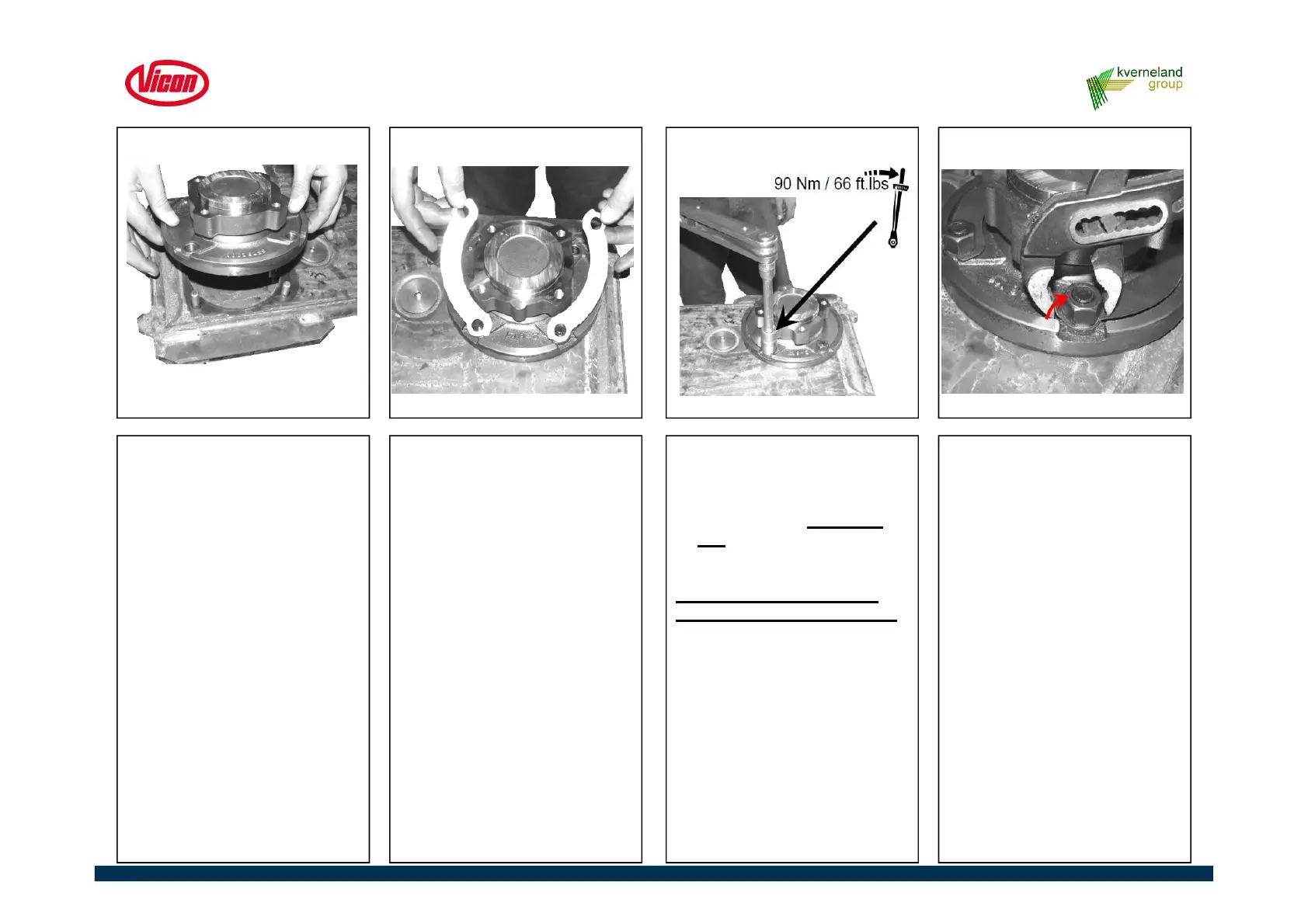

• Fit the last bearing unit in the
cutter bar.
NB! Take care of the timing!
• Tighten all the bolts on the
bearing units to 90 Nm / 66
ft.lbs. by use of a torque
wrench.
NB! Do not use LOCTITE or
similar product on these bolts
when fitted. Then the bolts will
not able to be removed from the
nut during a disassemble.
• Provide the bearing units with
new lock plates.
NB! After removal of the bearing
unit, new lock plates and new
bolts has to be provided when
fitting of the bearing unit.
• Bend the lock plate around
the head of the nut on all
bolts.
4.8.1 Cutter bar-repair instructions
