Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)

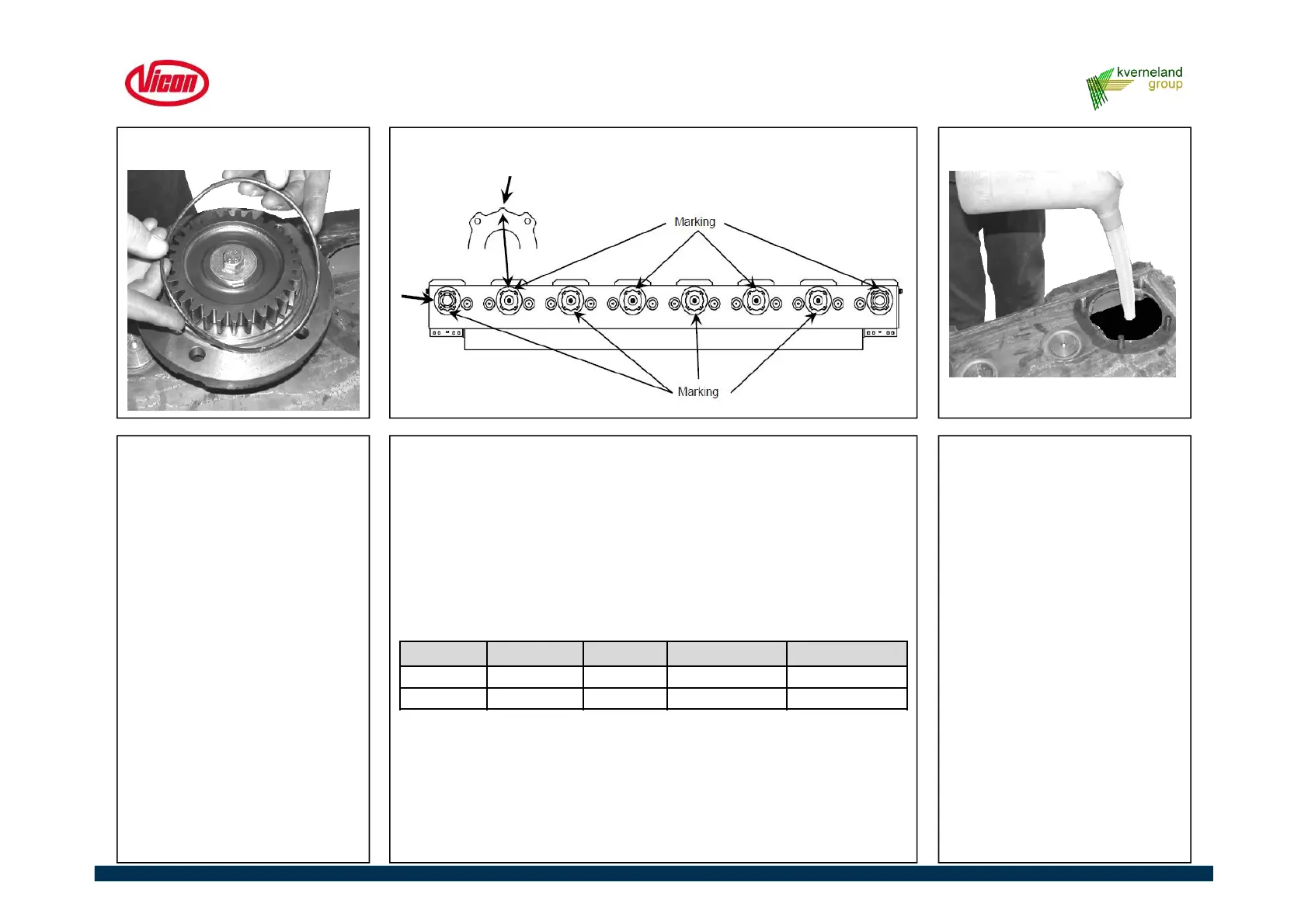

• Use grease in O-ring grove
and surface around it to
prevent erosion.
• Fit new O-rings on the bearing
units.
NB! Make sure the O-ring is
placed correct in the groove of
the bearing unit.
• Fit the bearing units on the
cutter bar.
• Remove tool T6 after fitting of
the bearing units.
NB! Wait with the fitting of the
last bearing unit.
• Take care of the timing, see picture! • Fill the cutter bar with oil
before you fit the last bearing
unit.
• For volume, see on the left.
4.8.1 Cutter bar-repair instructions
73
Cutter bar No. of disc Ltr. US Pints Imp. Pints
Extra 532 8 3.1 6.6 5.5
Extra 540 10 3.0 6.3 5.3
