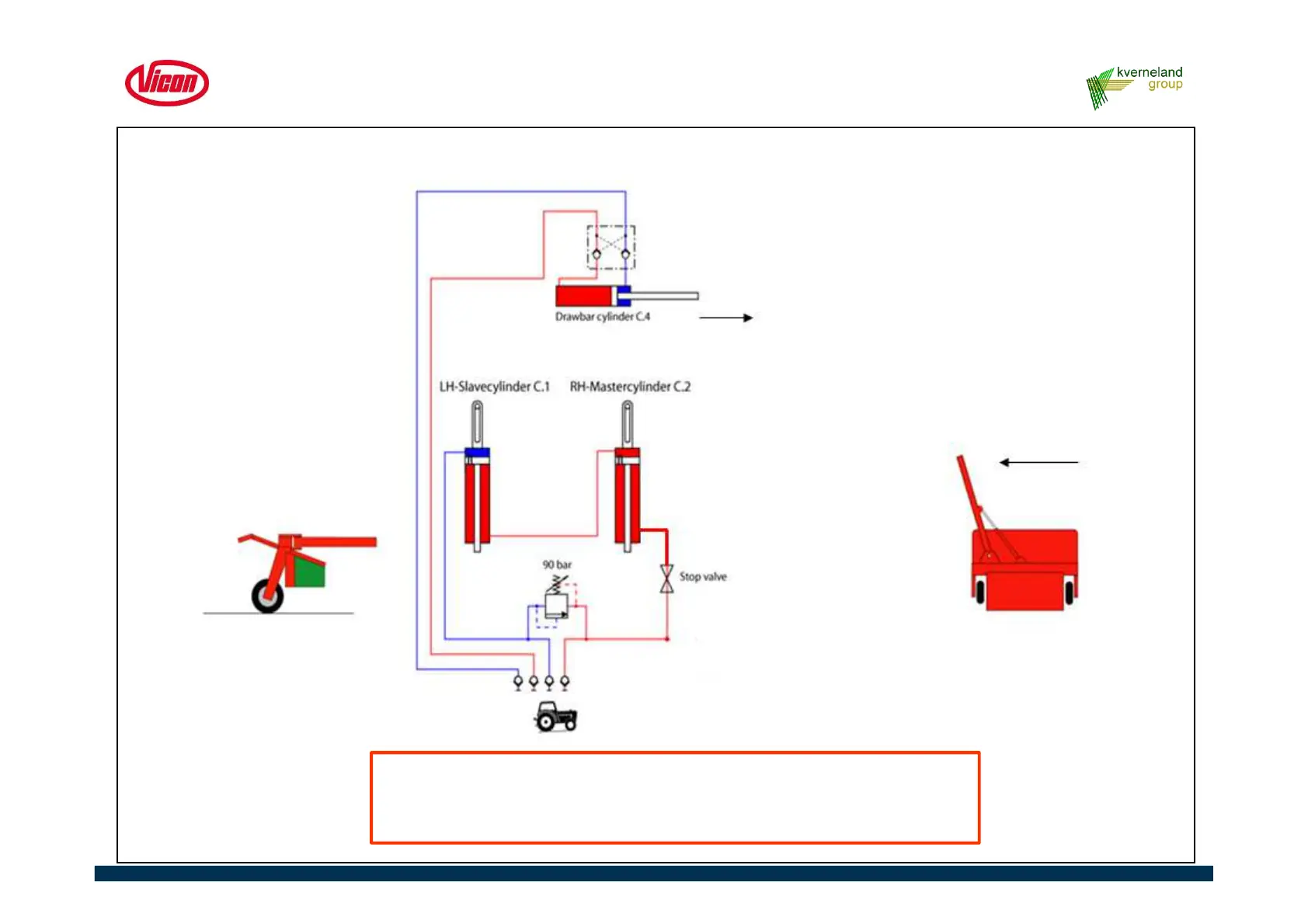

Hydraulic diagram - steering cylinder goes out to working position with unit in transport position
*Master slave cylinders for lifting the cutting unit.
*No restrictors in this system, the long 3/8 "hydraulic
lines provide the necessary restriction.
4.5 Hydraulic diagrams.
