Removing cutter bar out of unit
Removing cutter bar out of
unit
Removing cutter bar out of unit
Removing cutter bar out of
unit
Removing cutter bar out of unit
Removing cutter bar out of
unit
Removing cutter bar out of unit
Removing cutter bar out of
unit

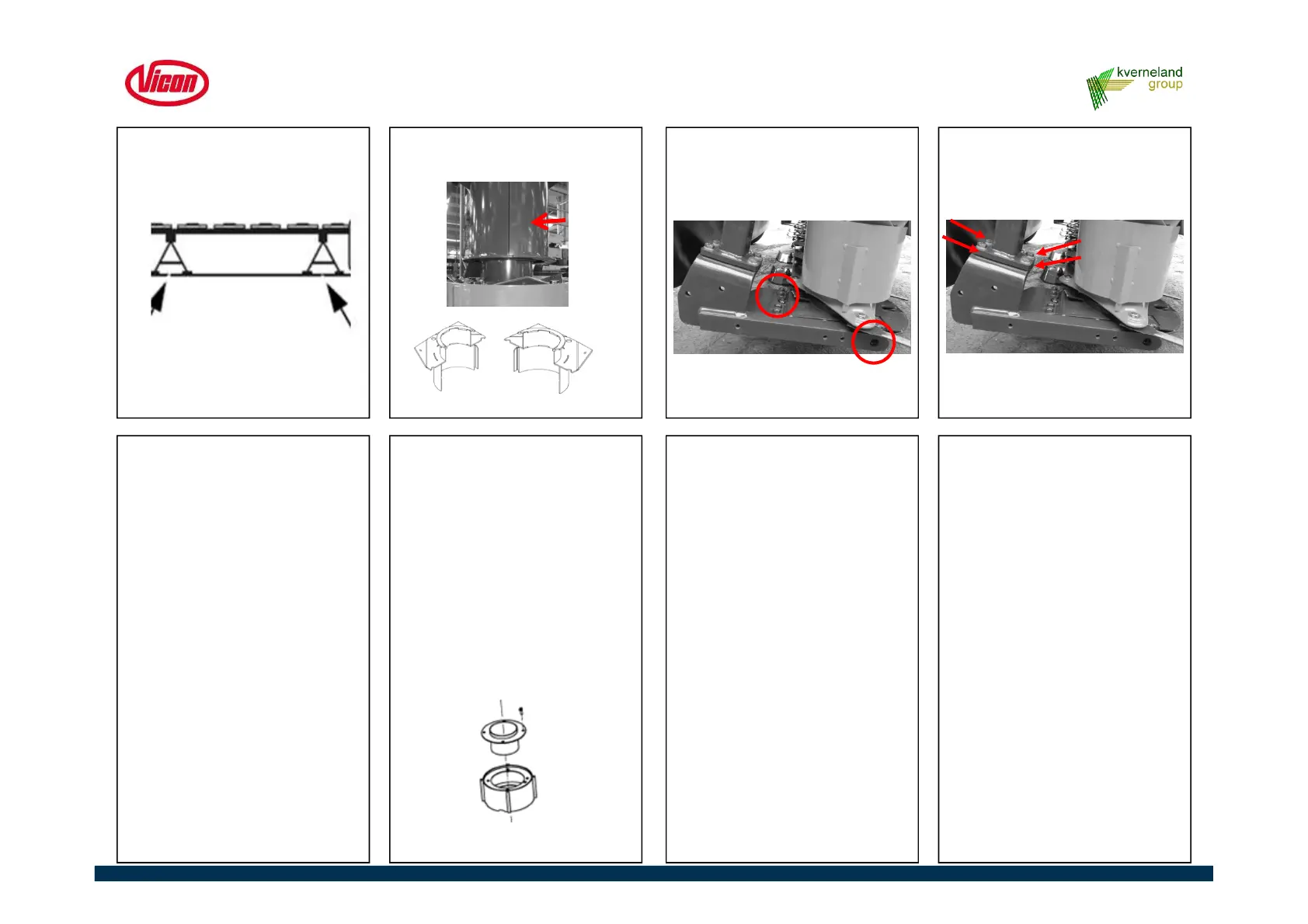

• Lift the cutting unit and put
some supports under the
cutter bar or the forks of a fork
truck.
• Release pressure out of
suspension.
• Lower the cutter bar on the
supports or forks.
• Close hydraulic system.
• Remove the stone guard on
the RH-side.
• Remove the 5 bolts holding
the cutter bar to the bracket.
• Remove the 4 bolts of the
bracket.
• Remove the bracket.
• Open the front guard.
• Remove the guard around the
PTO shaft between the
transmission and the cutter
bar.
• Remove the inserts located in
the cone.
NB! Older models only had
one steel insert inside the
cone
4.8.1 Cutter bar-repair instructions
