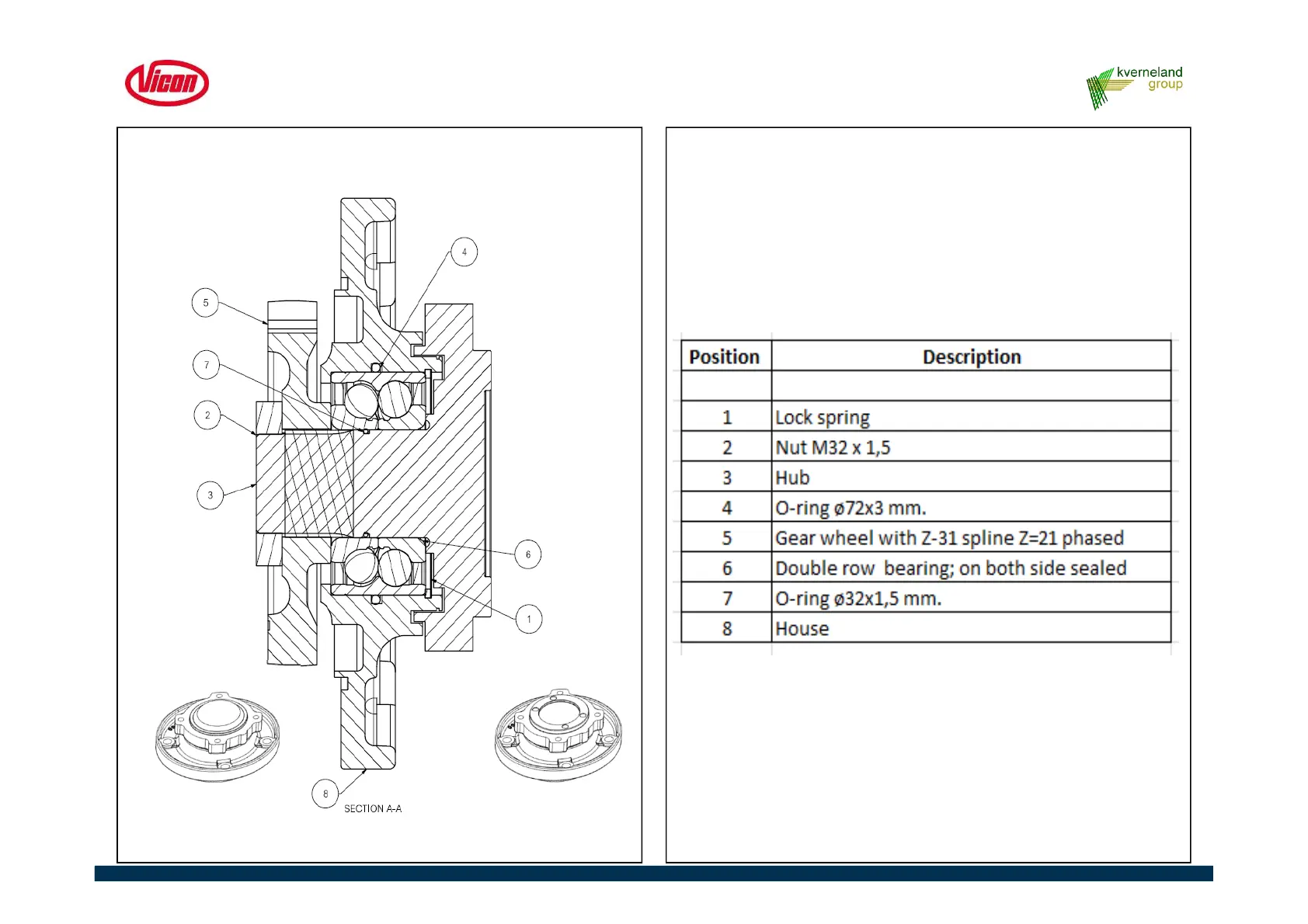

Standard hub A144144030 and A144143930 for PTO side. From
machine nr. KT480197
Standard Hub PTO side has 4 extra
tap holes in flange
Part descriptions
64
Latest model from machine nr. KT480197
h
as the new style hubs what cannot be
repaired!
4.5 Cutter bar-details
