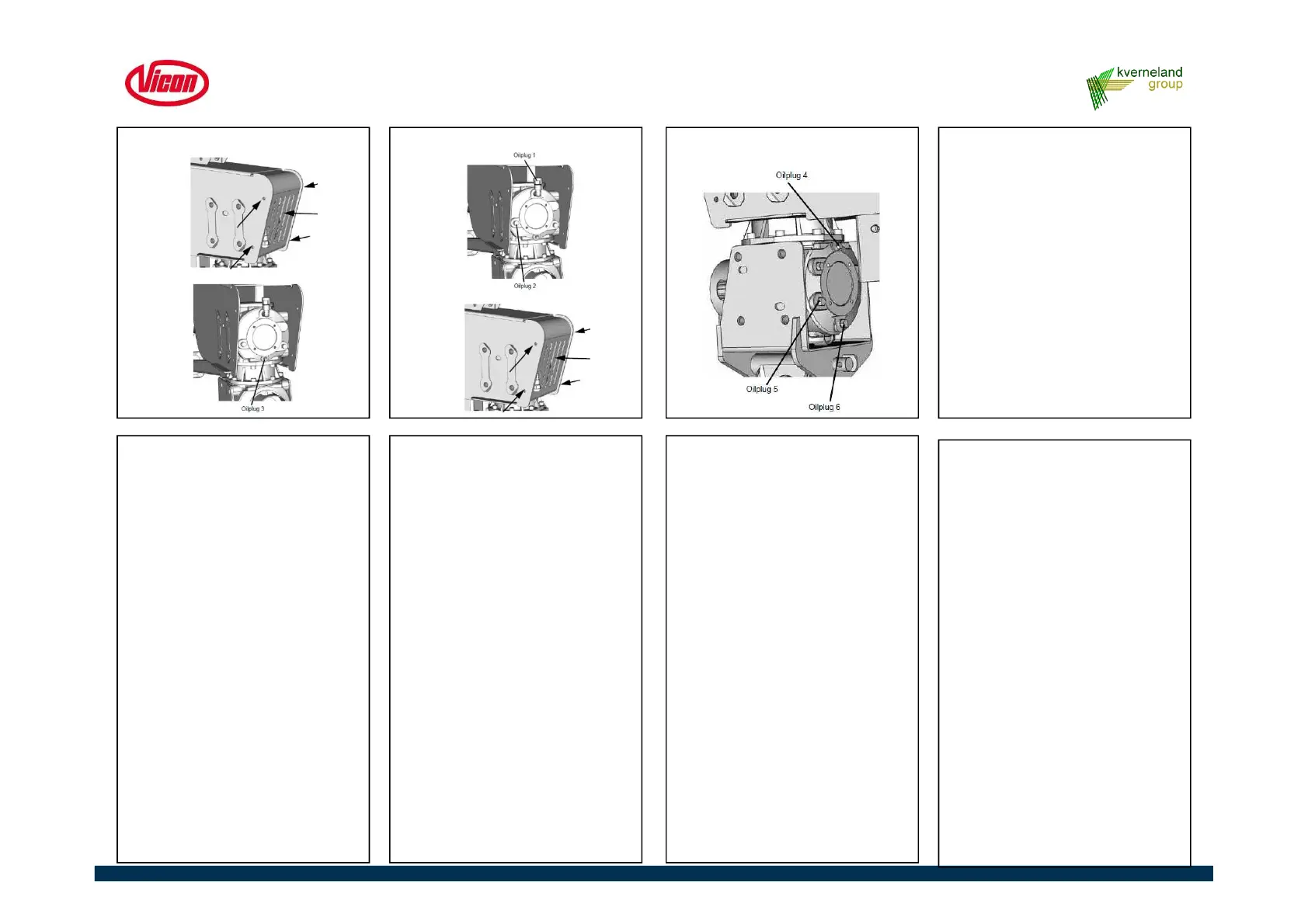

Swivel gear changing oil
The lower part of the swivel
hitch
Swivel gear changing oil
The upper part of the swivel
hitch
Swivel gear changing oil
The upper part of the swivel
hitch
After the first 50 hrs. thereafter
every 200 hours or once a year.
The oil is changed as follows:
• Remove the guard
• Remove oil plug1, 2 and 3.
• Let the oil flow into a suitable
container.
• Allow the last of the oil to drip
out of the transmission for
approx. 10 - 15 minutes.
• Fit oil plug 3 and tighten it.
For gearboxes always use
SAE GL5 EPX 80W-90
• Fill the new oil through the
hole for oil plug 1.
• The correct oil level is
reached when the oil reaches
the edge of the hole for oil
plug 2.
• Fit oil plugs 1 and 2 and
tighten them.
• Fit the guard.
• Oil amount when changing oil;
Upper gearbox
0.65 Liter
1.37 Pints (US)
1.14 Pints (Imp)
Lower Gearbox
1.8 ltr.
3.8 Pints (US)
3.17 Pints (Imp)
• Use a suitable tool to remove
oil plug 4,5 and 6.
• Let the oil flow into a suitable
container.
• Allow the last of the oil to drip
out of the transmission for
approx. 10 - 15 minutes.
• Fit oil plug 6 and tighten it..
• Fill the new oil through the hole
for oil plug 4.
• The correct oil level is reached
when the oil reaches the edge
of the hole for oil plug 5.
• Fit oil plugs 4 and 5 and tighten
them.
4.9 Oil change gearboxes
