Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)
Cutter bar repair
Assembly of bearing house(s)

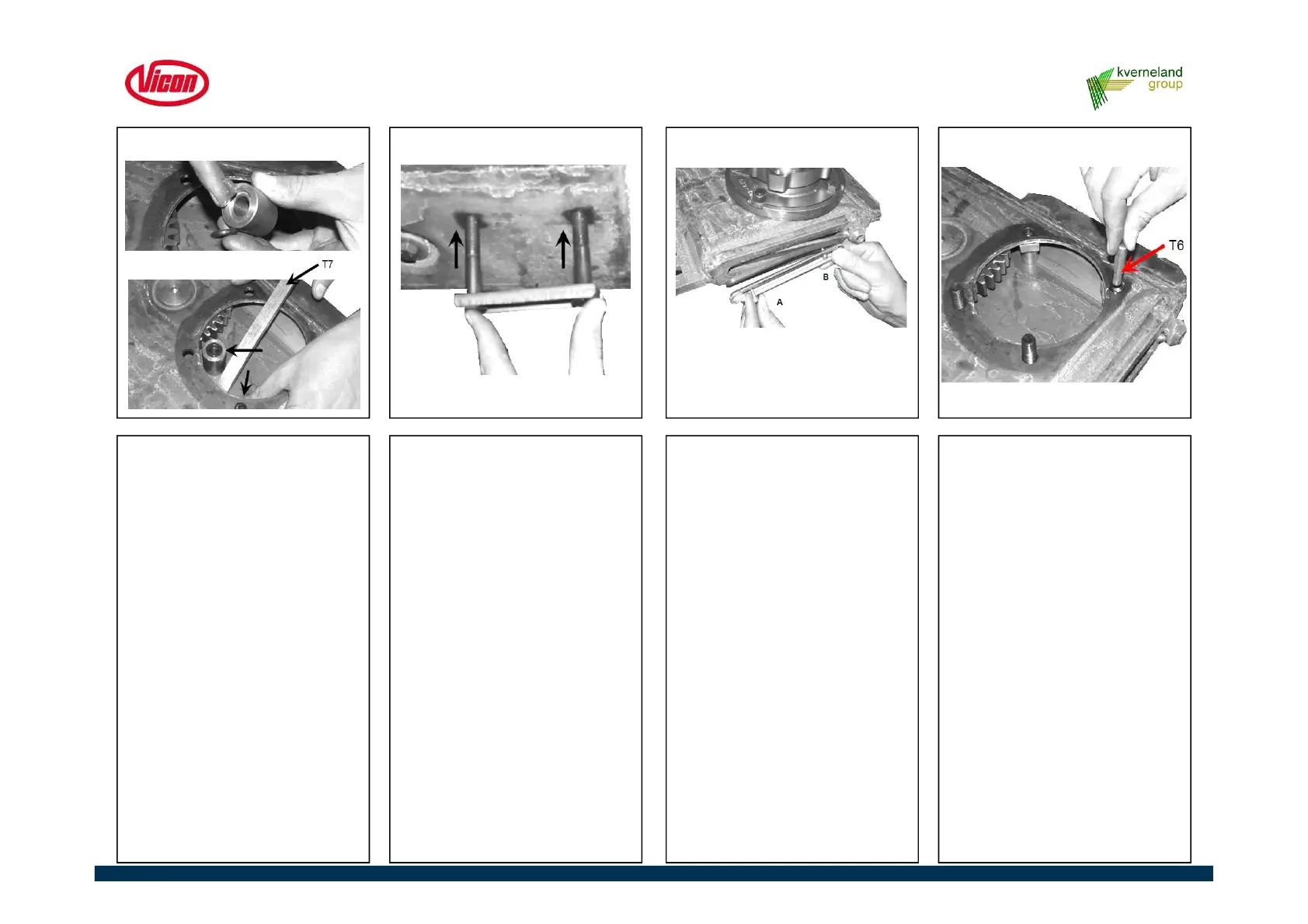

• Add grease on the bushings
before the O-rings is fitted in
the bushings.
• Force the edge of the plate up
a bit by use of tool T7 as
shown.
• Place the bushings for the
through-going bolts.
NB! Do not damage the O-rings
when the special nuts is placed
in the cutter bar.
• Guide the end cap in to the
cutter bar as shown.
• Tighten the end cap.
NB! Always use a new gasket
when the end cap is fitted.
• Fit the bolts.
NB! Do not damage the O-rings.
• Place tool T6 as shown.
• The special nuts in the cutter
bar is been kept in place by
using tool T6.
4.8.1 Cutter bar-repair instructions
72
