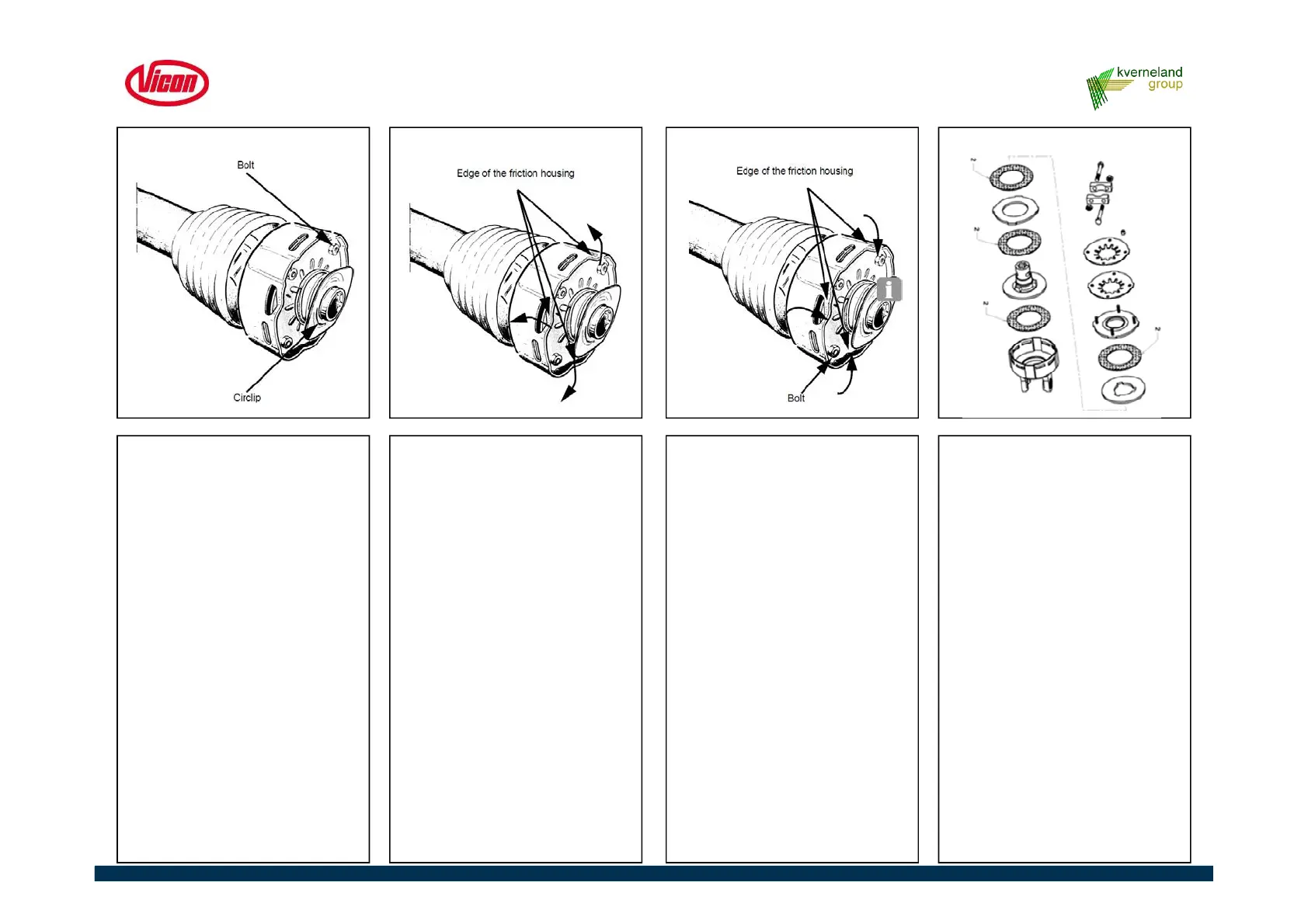

Repair of friction clutch

When the torque for the friction

clutch is too low, the friction disc

should be replaced. The friction

discs on the friction clutch are

changed as follows:

• Tighten all the bolts on the

friction clutch.

• Remove the circlip shown.

• Take the lock on the friction

clutch apart and remove it.

• Bend back the edges of the

clutch housing shown.

• Take the friction clutch apart

and replace the friction discs.

• Assemble the friction clutch.

• Bend the edges of the clutch

housing shown back in again.

• Fit and assemble the lock.

• Fit the circlip.

• Loosen all bolts on the friction

clutch.

Note; The settings for the

coupling's springs cannot be

adjusted.

• Torque is 1500Nm.

Note; The settings for the

coupling's springs cannot be

adjusted.

4.1 PTO - Clutch
