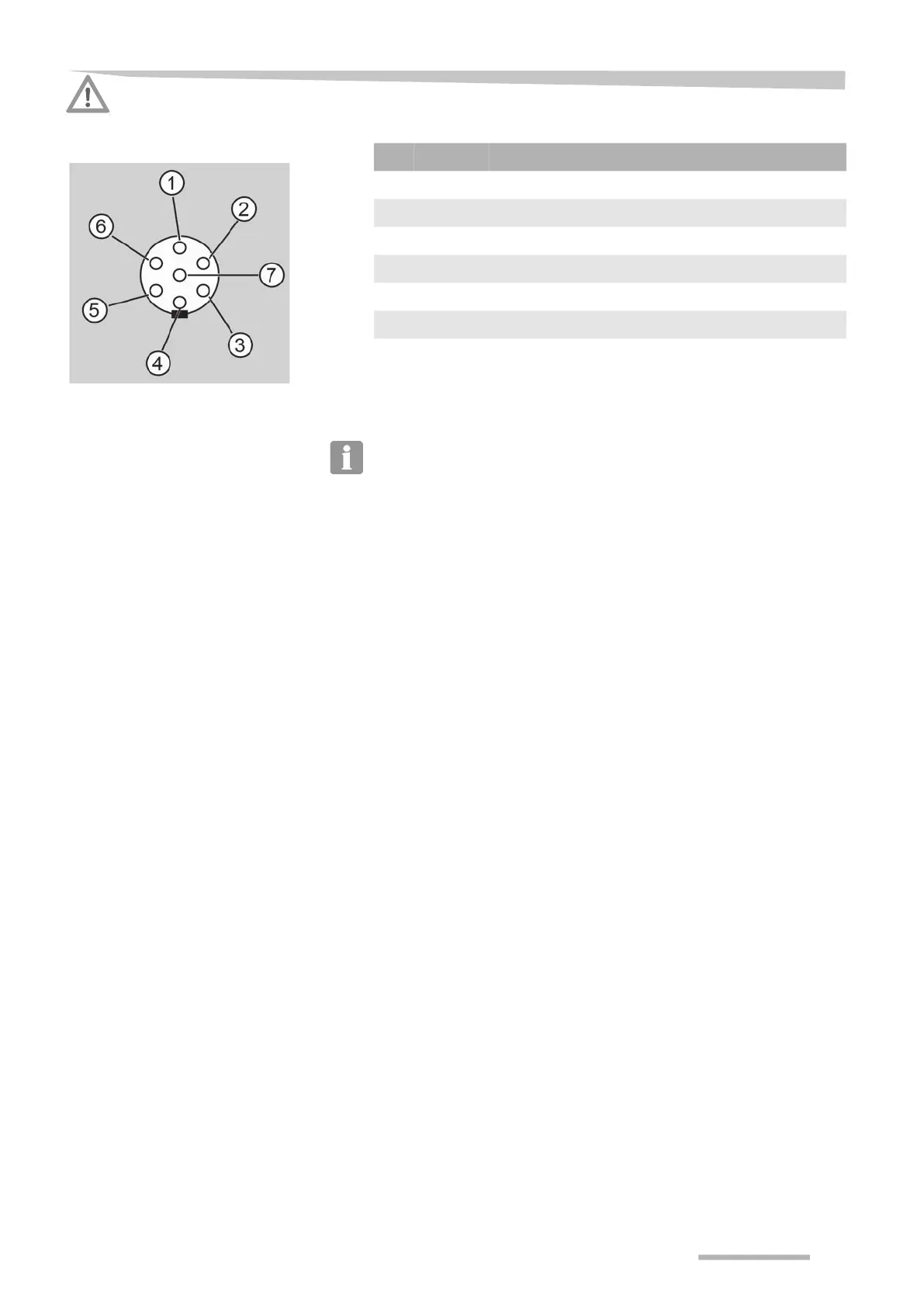

ISO 1724 connector - overview
Connect the 12 V power supply plug to the tractor's 7-pin
connector.
Observe the regional regulations concerning lights and markings for
travel on public highways. Contact your dealer if the lights do not work
as stated.
Pin Cable connection for:
1 Yellow Left-hand indicator (amber)
2 Blue Not used
3 White Earth; all lights
4 Green Right-hand indicator (amber)
5 Brown Right-hand rear light (red) / Reg. plate (white)
6 Red Brake light (red)
7 Black Left-hand rear light (red)
