3.7.1.1. Channel
Sets up the motion detecting area and sensitivity for each channel.
3.7.1.2. Sensitivity
Sets up the motion detecting sensitivity. The lower the sensitivity gets the closer to the left
the red bar gets.
3.7.1.3. Detection Zone

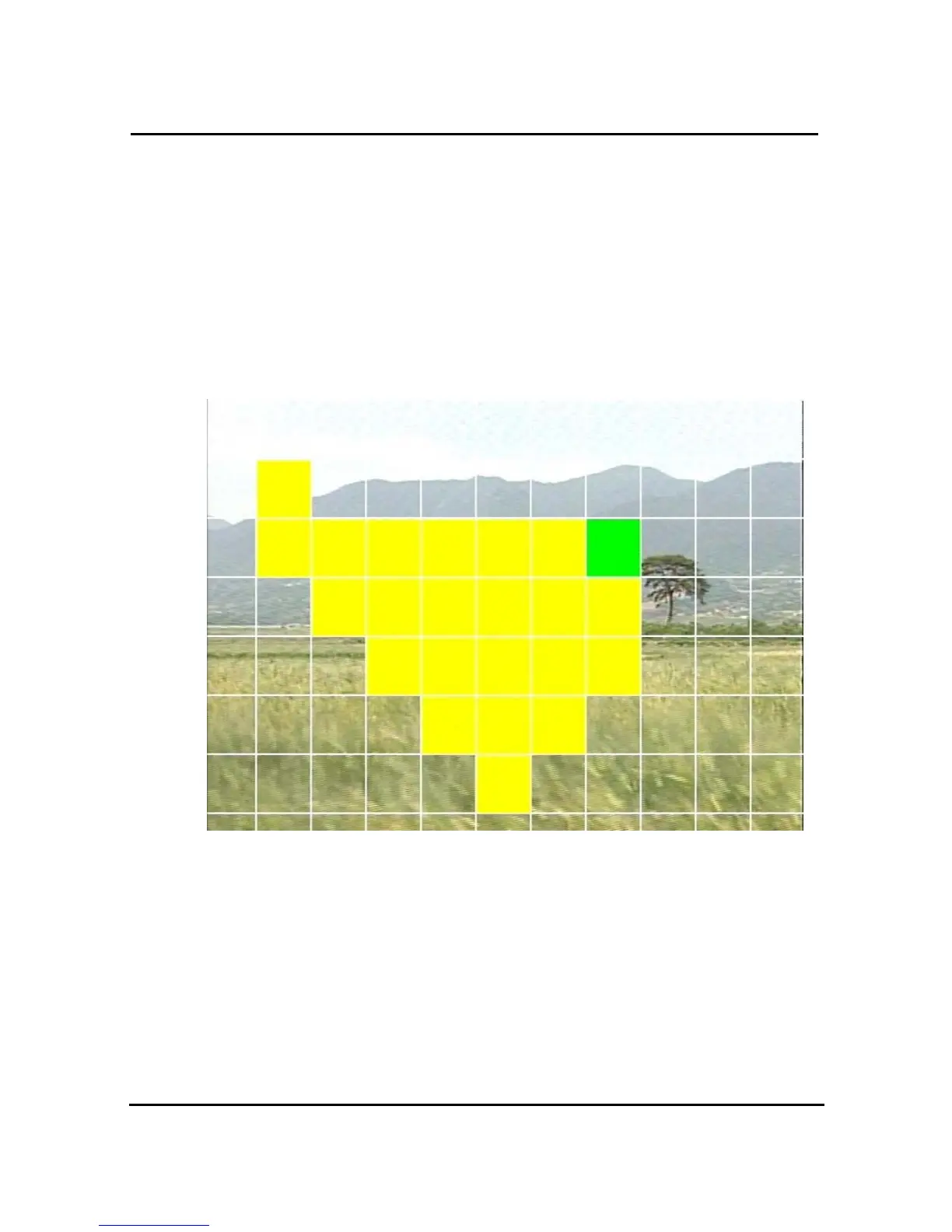

Figure 3-12 Motion Detecting Area Setup screen
Selects the motion detecting area. The sky blue square implies the current cursor and the
yellow square implies the area that was already selected as the motion detecting area.
When the cursor positions on the area that was selected as the motion detecting area, it
turns green. Above screen is for MUX motion detection set-up and for QUAD motion
detection set-up all four screens appear together.
Full screen shall be as the motion detecting areas after entering MULTI button. The reverse
key button is SEQ erasing motion detecting area.
