RAINSHIELD
Complete with frame to be mounted between the front frame and the
back box as protection against rain and to cover possible mismatching
of the wall. Projection: 35 mm. only
Modules Rows Dimensions (mm)
Art. 871A 1 1 140 x 168,5 x 35
Art. 872A 2 1 140 x 288,5 x 35
Art. 873A 3 1 140 x 408,5 x 35
Art. 874A 4 2 256x 288,5 x 35
Art. 876A 6 2 256 x 408,5 x 35
Art. 879A 9 3 372 x 408,5 x 35
TETTUCCIO ANTIPIOGGIA
Completi di cornice, da montare tra il supporto frontale e la scatola da
incasso.
Proteggono dalla pioggia e coprono eventuali difetti di muratura.
Moduli File Dimensioni (mm)
Art. 871A 1 1 140 x 168,5 x 35
Art. 872A 2 1 140 x 288,5 x 35
Art. 873A 3 1 140 x 408,5 x 35
Art. 874A 4 2 256 x 288,5 x 35
Art. 876A 6 2 256 x 408,5 x 35
Art. 879A 9 3 372 x 408,5 x 35
SURFACE MOUNTING UNITS
Complete with hinge and front frame for panel modules.
Projection: 60 mm. only.
Modules Rows Dimensions (mm)
Art. 881A 1 1 140 x 168,5 x 62
Art. 882A 2 1 140 x 288,5 x 62
Art. 883A 3 1 140 x 408,5 x 62
Art. 884A 4 2 256 x 288,5 x 62
Art. 886A 6 2 256 x 408,5 x 62
Art. 889A 9 3 372 x 408,5 x 62
SCATOLE DI PROTEZIONE
Per montaggio a filo muro.
Complete di supporti per moduli e cerniere in acciaio inox.
Moduli File Dimensioni (mm)
Art. 881A 1 1 140 x 168,5 x 62
Art. 882A 2 1 140 x 288,5 x 62
Art. 883A 3 1 140 x 408,5 x 62
Art. 884A 4 2 256 x 288,5 x 62
Art. 886A 6 2 256 x 408,5 x 62
Art. 889A 9 3 372 x 408,5 x 62

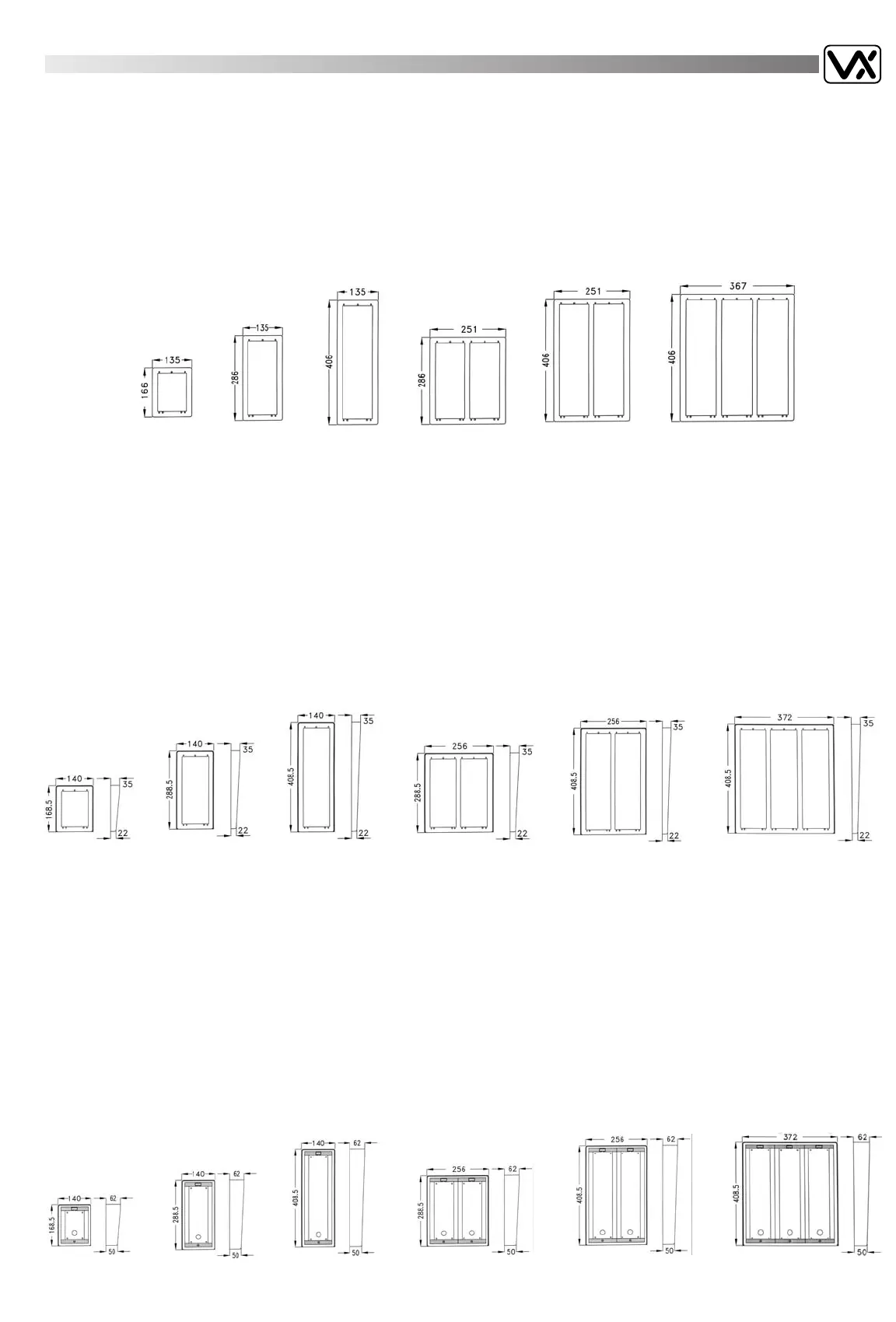

Art. 871A Art. 872A Art. 873A
Art. 874A Art. 876A Art. 879A
Art. 881A Art. 882A Art. 883A
Art. 884A Art. 886A Art. 889A
Art. 861A
Art. 862A Art. 863A
Art. 864A Art. 866A Art. 869A
CORNICI DI PROTEZIONE
Da montare tra il supporto frontale e la scatola da incasso. Questo accessorio
è necessario per coprire eventuali difetti di muratura.
Moduli File Dimensioni (mm)
Art. 861A 1 1 135 X166
Art. 862A 2 1 135 X 286
Art. 863A 3 1 135 X 406
Art. 864A 4 2 251 X 286
Art. 866A 6 2 251 X 406
Art. 869A 9 3 367 X 406
COVERING FRAMES
To be mounted between the front frame and the back box. This accessory is
necessary to cover possible mismatching or inadequate finishing of the wall.
Modules Rows Dimensions (mm)
Art. 861A 1 1 135 X166
Art. 862A 2 1 135 X 286
Art. 863A 3 1 135 X 406
Art. 864A 4 2 251 X 286
Art. 866A 6 2 251 X 406
Art. 869A 9 3 367 X 406
