Vigilant MX1-Au - Page 129

Document: LT0439 Vigilant MX1-Au Operator Manual
Issue 1.73 23 October 2018 Page 11-3
Clean out all swarf from the cabinet before replacing the gear
plate and power supply.

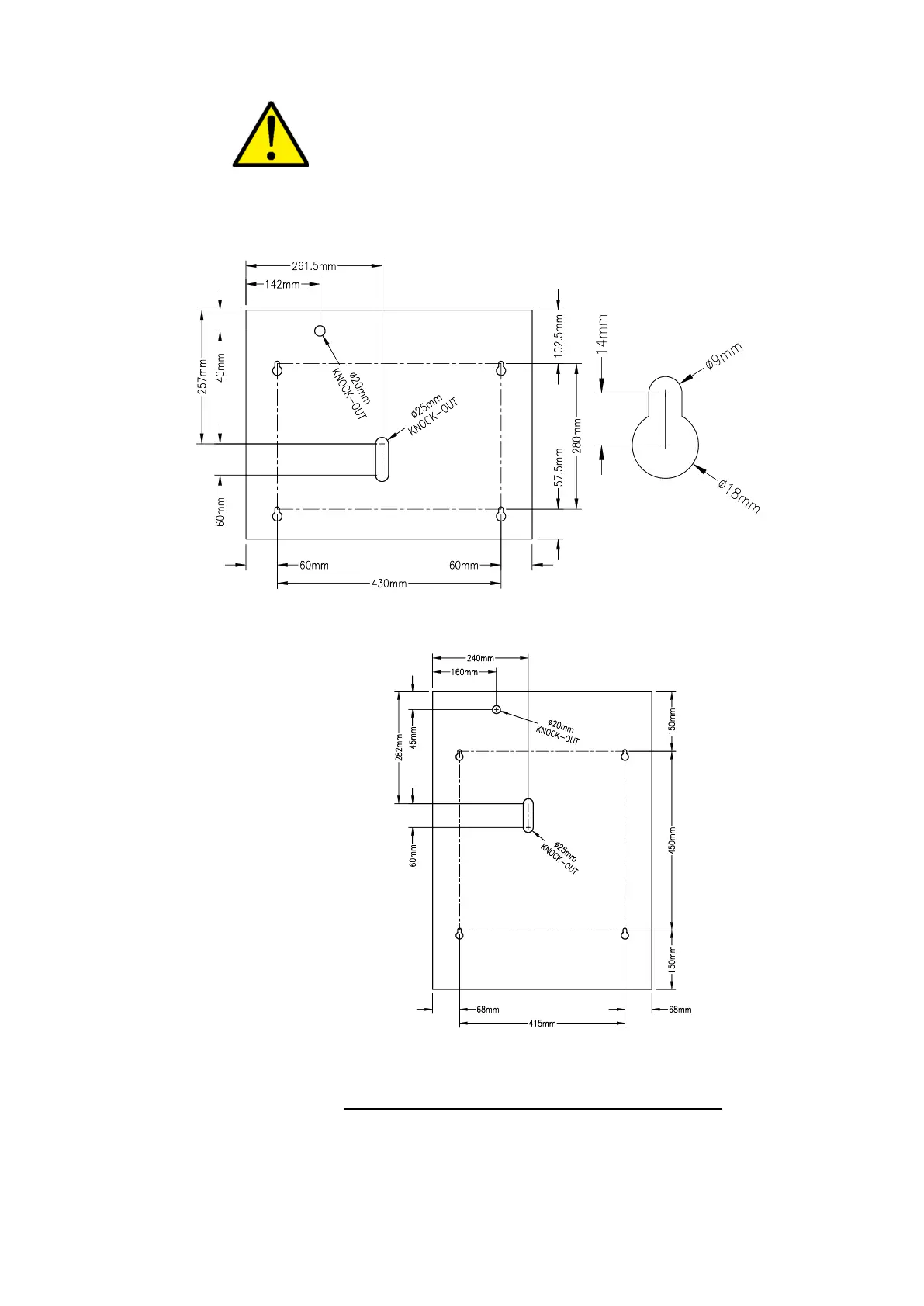

(a) Keyhole Detail
(b) 8U Cabinet
(c) 15U Cabinet
Figure 11-2 – Keyhole Pattern for Mounting Cabinet
