Vigilant MX1-Au - Testing Points

Document: LT0439 Vigilant MX1-Au Operator Manual
Issue 1.73 23 October 2018 Page 6-15
The Auto-Reset test will automatically cancel if no new alarm
is received for two hours. In this case, the zone will revert to
the state it was in (enabled or disabled) when the test was
started.
On exiting the test (whether stopped, reset, or timeout) if an
alarm is still present (e.g., call point left operated) the alarm
will be treated normally and may generate a nuisance alarm.
Therefore it is recommended the zone be disabled before the
test, and enabled again only after confirming 1-2 minutes
after the test is exited that the state of the zone is normal.
This test generates a fault condition for the zone. You will be asked to
confirm or cancel the test. The following display will be shown during the
test;
Zone 001 Std Detection G1 |
Office | ENABLE
| RESET
Fault Disabled FltTest |

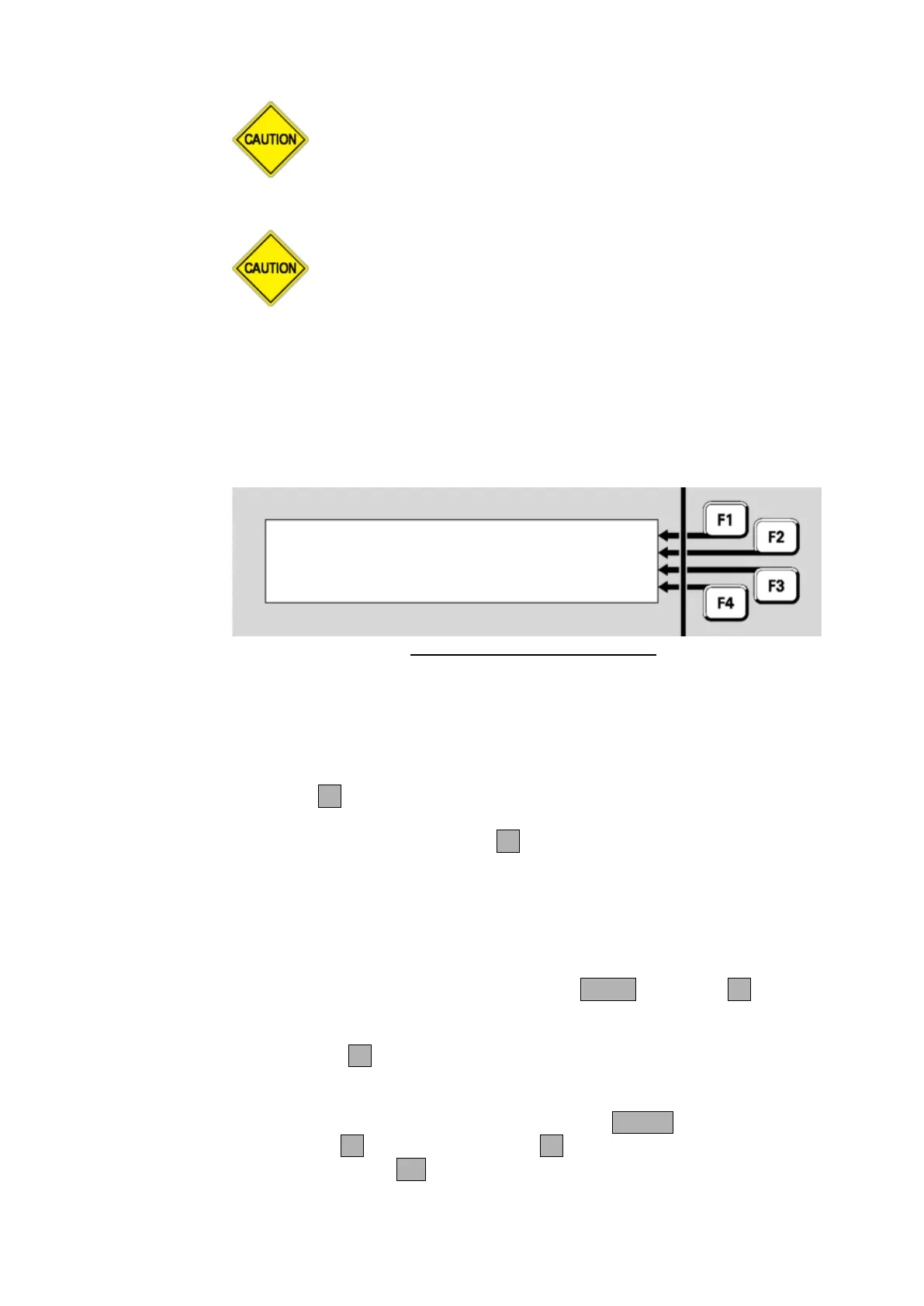

Fig 6-24 – Fault Test Status Menu
If the zone does not go into fault, the test fails.
Note that the test will disable the zone being tested, and the fault is
simulated. If it is required to test how the system is affected by the zone
fault, the zone can be manually enabled during the test by pressing
ENABLEF2.
To stop the test, press RESETF3. This will also restore the zone’s
enable/disable status to what it was before the test was started.
From the recall point status display, press MENU or MENUF4 to display
the menu options.
Press TESTF3 to display the test options for the point, which will
depend on the point type, as described in the following sections.
Alternatively, from the base display, press the TESTS key,
INITIATEF4 and select POINTF2. Enter the required point
number, then press OK.
Fault Test
Testing Points
