Reset zone: | -TO-
Enter nnn for single zone |
or nnn F1 nnn for a range |
F4 to backspace | <-

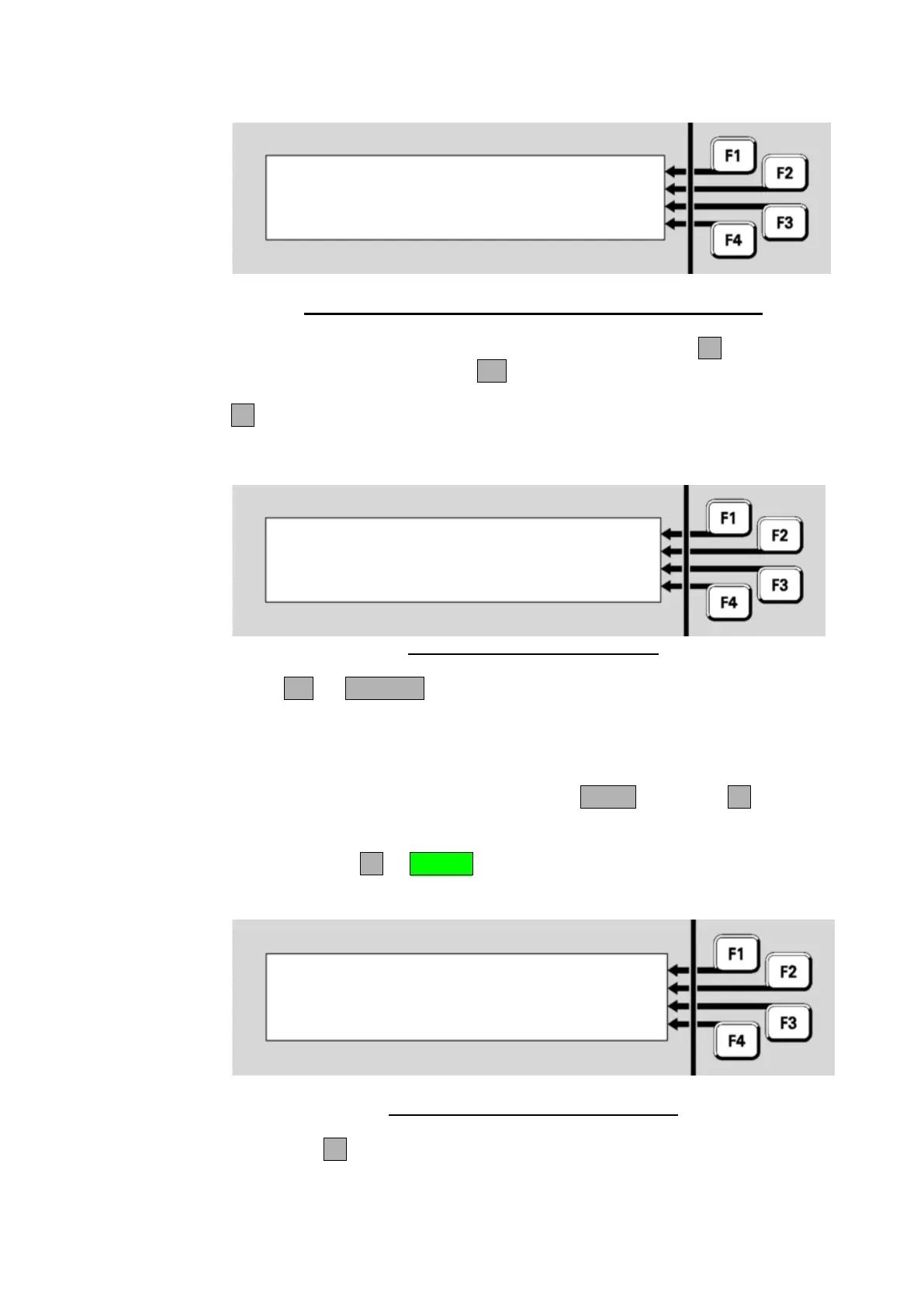

Fig 6-4 – Zone Number Entry Display – Showing Range Option
Enter the first zone in the range to be reset. Then press F1 and enter the
last zone in the range. Press OK.
F4 can be used as a backspace key.
The resulting menu offers one or more reset options and a cancel option.
Fig 6-5 – Zone Reset Option Menu
Press OK, or CANCEL. The system will perform the reset on the
configured zones in the range and then display the recall zone status
display for the first zone so that the result of the command can be
viewed.
From the recall point status display, press MENU or MENUF4 to display
the point commands.
Press RESETF1 or RESET to reset the point. There are several
options for resetting a point:
Reset point | FULL
P1.1.0 MIM800 MX Device | HISTORY
| TRACK
Select reset option or CANCEL |
Fig 6-6 – Options For Resetting A Point
FULLF1 is the basic reset to restore a point to a Normal state. The
alarm and fault states are cleared (if possible) and any tests in
progress are cancelled. This option would normally be used only for
