! CAUTION: To Reduce the Risk of Fire or Injury to Persons:
! WARNING: For use with gates at a maximum 850 lbs. in weight or 16 ft. in length.
IMPORTANT INSTALLATION INFORMATION
Specications:
UL 325 Classifcation: Class I
*Refer to page 9
Power Requirements: 115VAC / 230VAC (1.5* Amp / 1.0* Amp)
*Each Gate Operator
Single Phase (50Hz / 60Hz)
Alternative Power: 24V AC / DC (min. 20VA) or Solar
Operating Temperature: -20°F (-28°C) to 160°F (71°C)
Maximum Weight: 850 lbs.
Maximum Length: 16 ft.
Locate Control Buttons:
1.
Within sight of the gate,
2.
At a minimum height of 5 feet
so small children are not able to
reach it; and
3.
At least 6 feet away from all
moving parts of the gate.

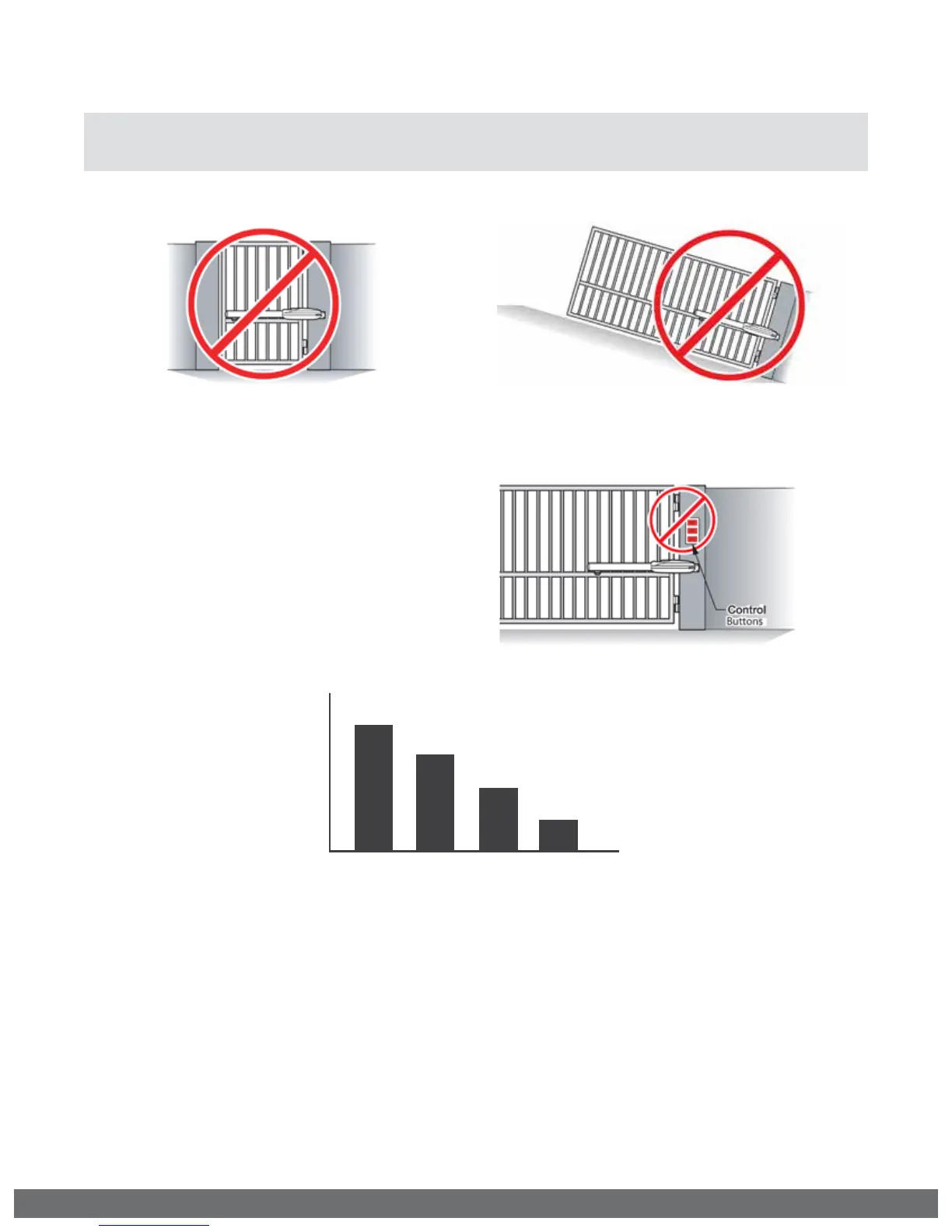

DO NOT allow pedestrian use of this gate DO NOT install the gate operator to lift gates
LB
FT
850 lb
75 0 lb
650 lb
550 lb
850 lb
750 lb
650 lb
550 lb
10’1 2’ 14’1 6’
Gate Weight/Length Relationship
10’ 12’ 14’ 16’
To Next Page
