Viking Access Systems E-4 - Control Board References

VIKING TECHNICAL SUPPORT 1.800.908.0884
4

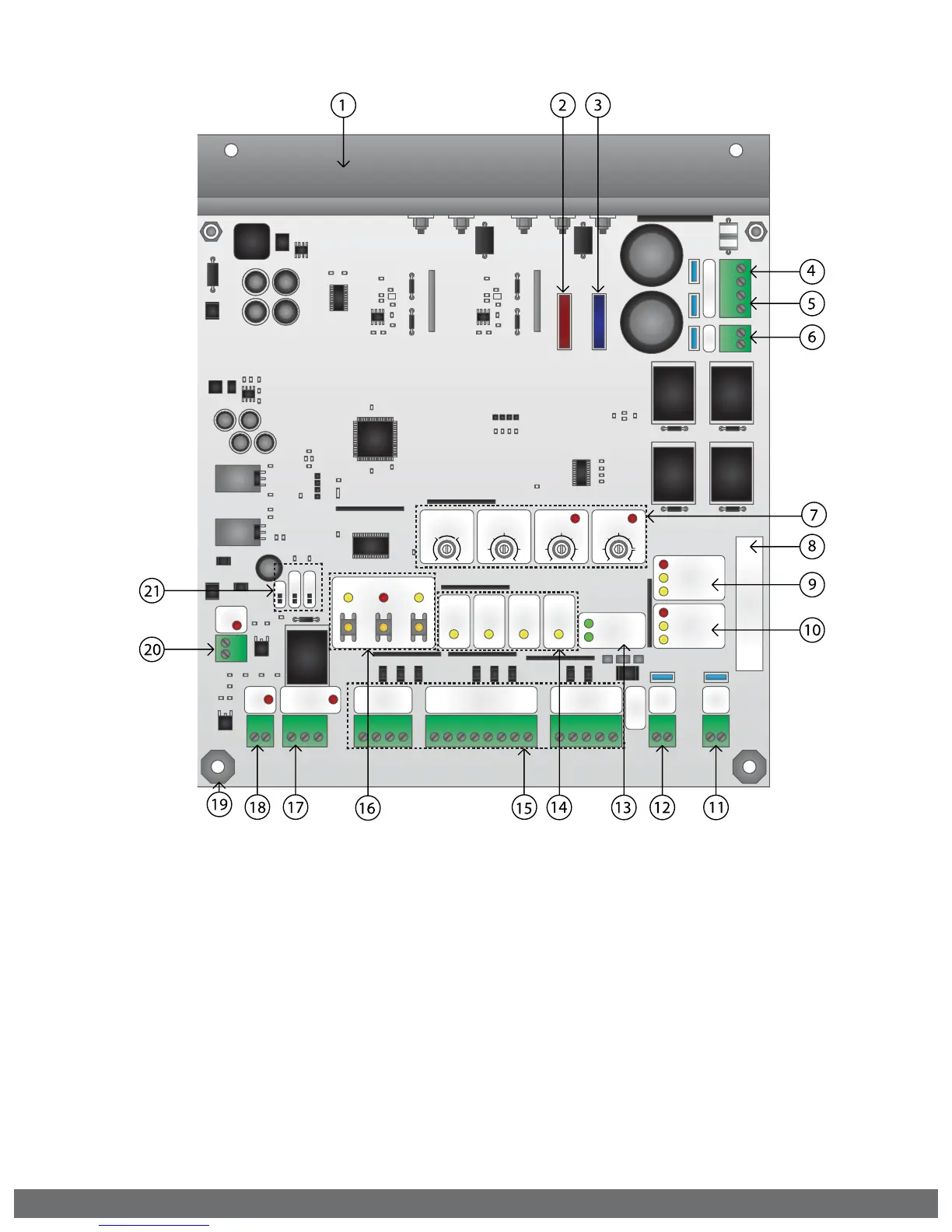

CONTROL BOARD REFERENCES:
1. HEAT SINK - MASTER/SINGLE
secures the control board and dissipates heat.
2. FUSE HOLDER - 4 AMP
for the charging circuit.
3. FUSE HOLDER - 15 AMP
for the motor circuit.
4. AC POWER CONNECTION
24VAC to the control board. pg 20
5. BATTERY CONNECTION
24VDC charge voltage to the batteries.
6. DC POWER CONNECTION
24VDC to the control board. pg 21
7. FEATURE ACTIVATION TRIM POTS
activate and set features. pg 24
8. SERIAL NUMBER
control board serial number for identification
9. MASTER MOTOR STATUS LEDs
indicates sMaster motor status. pg 34
10. SLAVE MOTOR STATUS LEDs
indicates Slave motor status. pg 34
11. SLAVE MOTOR CONNECTION
provides power to the Slave motor. pg 23
12. MASTER or SINGLE MOTOR CONNECTION
provides power to the Master motor. pg 22
13. POWER and BATTERY STATUS LEDs
indicates power supply status. pg 22
14. INPUT STATUS LEDs
indicates input status. pg 35
15. ACCESS CONTROL TERMINAL BLOCKS
accessory connections. pg 27-29, 37-39
16. ON-BOARD 3 BUTTON STATION
controls the gate during setup and testing
17. “MAGNETIC LOCK Relay” and Status LED
status of this on-board relay. pg 31, 35
18. “AUX. PWR” Terminal Block
used for solar applications & in-motion
warning devices. pg 21
19. CONTROL BOARD MOUNTING HOLES
secures and grounds the control board.
20. “Siren” Terminal Block
Vikings UL Siren is connected here. pg 12, 26
21. FEATURE ACTIVATION PIN HEADERS
activate features by placing a jumper onto the
pin headers. pg 25
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
SpeedOverlap ODS
Timer
Sync
Auto Open
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 0 60
Off
4A
15A
4
15
Aux.
Pwr
+ -
Magnetic Lock
N.O. N.C.
COM
Guard Station
GND
Close
Stop
Open
Loop Connector
GND
Center
GND
ReOpen
GND
UL
GND
+28V
Radio Station
GND GND
Radio
+28V +28V
Class 2
Supply +28V
Master
Slave
Siren
+
Limit Close
Limit Open
Slave
Limit Close
Limit Open
Master
Low Bat
Power
Radio
Rec.
UL
Sens
ReOpen
Sens
Center
Loop
OpenStopClose
SpeedOverlap ODS
Timer
Sync
Auto Open Dual Gate MS
AC
AC
+
-
+
-
Bat
DC IN
Max Min
Normal
60
3
100 060
Off
4A
15A
4
15
