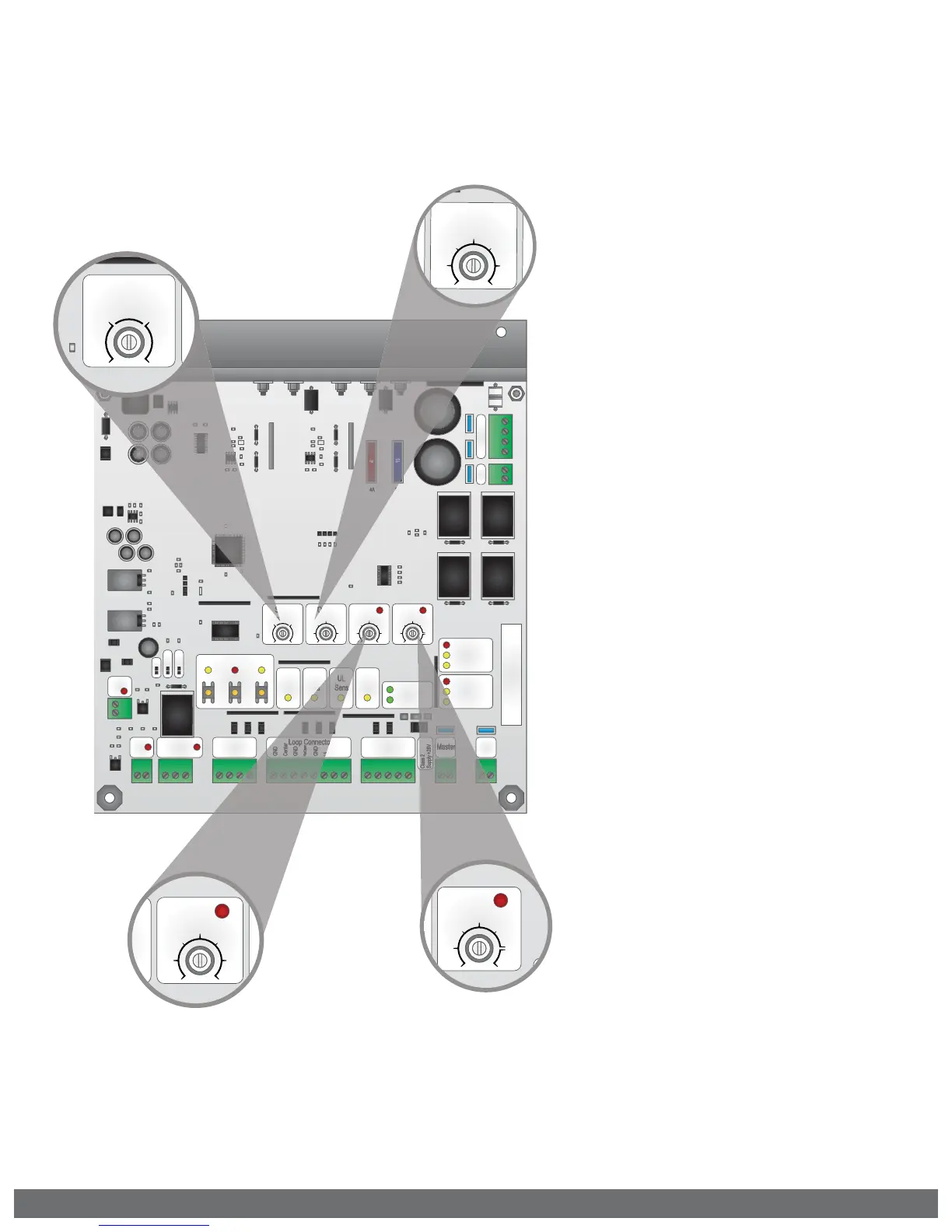

CONTROL BOARD SETUP
Initial Settings
“Timer”
Hold Open Timer
Automatically closes the gate after
the selected amount of time from
1-60 seconds.
Turning the dial between “0” and
“OFF” will disable this feature,
requiring a close command to close
the gate.
“Speed”
Motor Speed
Increases or decreases the speed of
gate travel.
“Overlap”
Overlap Delay
Delays the gate from opening for
the selected amount of time from
1-6 seconds.
! For Master/Slave or dual
applications, the Master will
delay to open and the slave will
delay to close.
“ODS”
Obstruction Detection Sensor
Sets the amount of force required to trip
the inherent obstruction sensor.
See page 26 for more details about this
feature.
