Viking Access Systems E-4 - Troubleshooting; LED References

VIKING TECHNICAL SUPPORT 1.800.908.0884
34
LED References

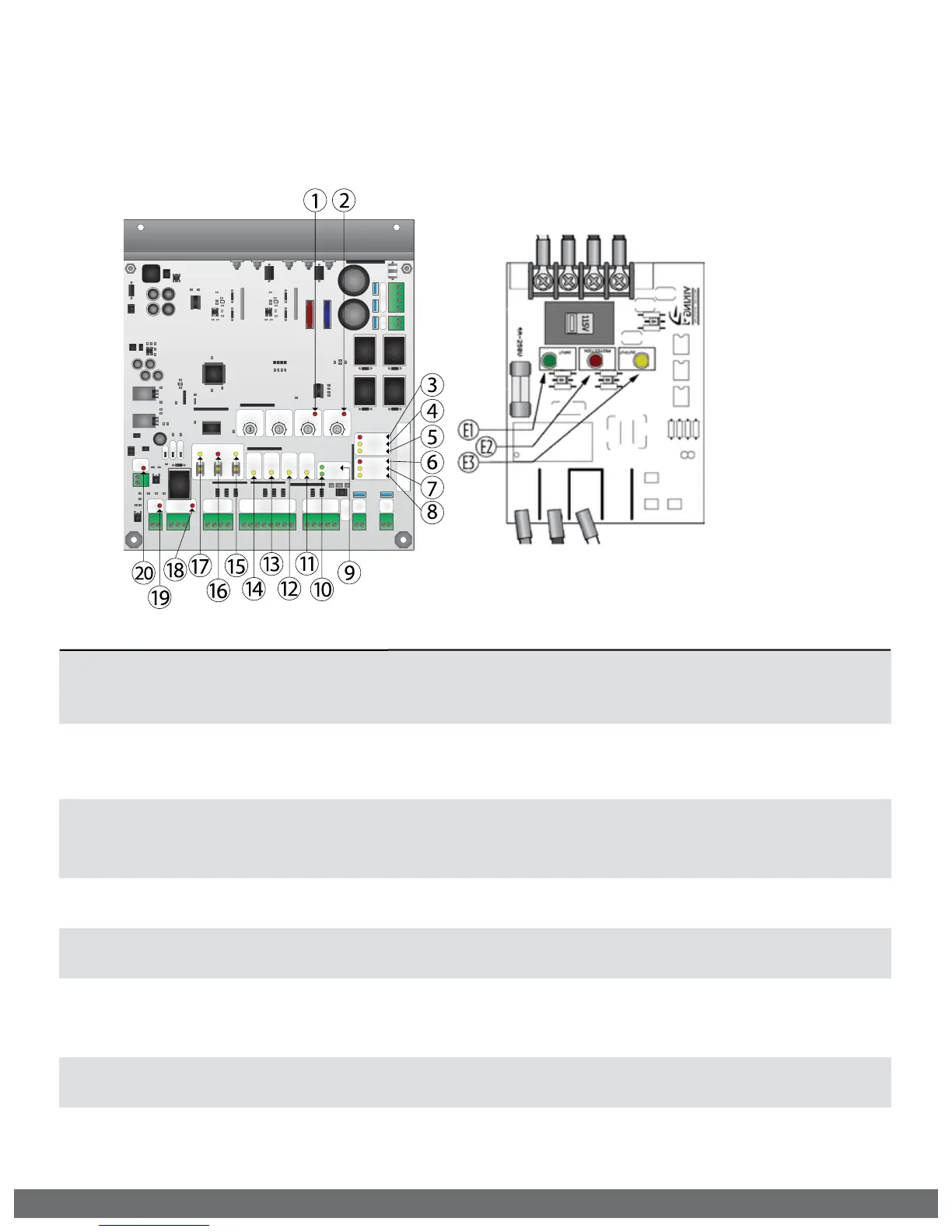

The control board LEDs monitor the various circuits of the control board. Use the table below
to identify the corresponding “TS Ref#” and refer to page 36 for further troubleshooting.
TROUBLESHOOTING
# LED Status Meaning
Page 36
TS Ref#(s)
1 “ODS” OFF Normal Condition.
SOLID Obstruction event has been detected on the MASTER motor. (pg 24, 26)
11, 13, 1, 2
FLASHING Overload event has been detected on the MASTER motor. (pg 24, 26)
11, 13, 1, 2
2 “Timer” OFF If gate is at the open limit, the Timer to close is turned OFF. (pg 24)
SOLID Timer to close is ON and counting down to close the gate. (pg 24)
FLASHING Timer is ON but is not timing out due to a conicting command. (pg 24)
9, 10
3 “Master OFF Normal Condition.
SOLID 1: The control board is sending power to the Master motor but the circuit is
open preventing the motor from running.
2: In conjunction with the ODS LED, conrms obstruction or overload event.
7, 8
11, 13, 1, 2
4 M “Limit Open” OFF Master gate is not at the open limit position.
SOLID Master gate is at the open limit position.
5 M “Limit Close” OFF Master gate is not at the close limit position.
SOLID Master gate is at the close limit position.
6 “Slave” OFF Normal Condition.
SOLID 1: The control board is sending power to the motor but the circuit is
open preventing the motor from running.
2:
In conjunction with the ODS LED, conrms obstruction or overload event.
7, 8
7 S “Limit Open” OFF Slave gate is not at the open limit position.
SOLID Slave gate is at the open limit position.
8 S “Limit Close” OFF Slave gate is not at the close limit position.
SOLID Slave gate is at the close limit position.
