Viking Access Systems E-4 - Post Mounting Option

VIKING TECHNICAL SUPPORT 1.800.908.0884
17
3-1/ 2” Pipe (4 .00” O.D.)
4” Squa re Pipe
6” Squa re

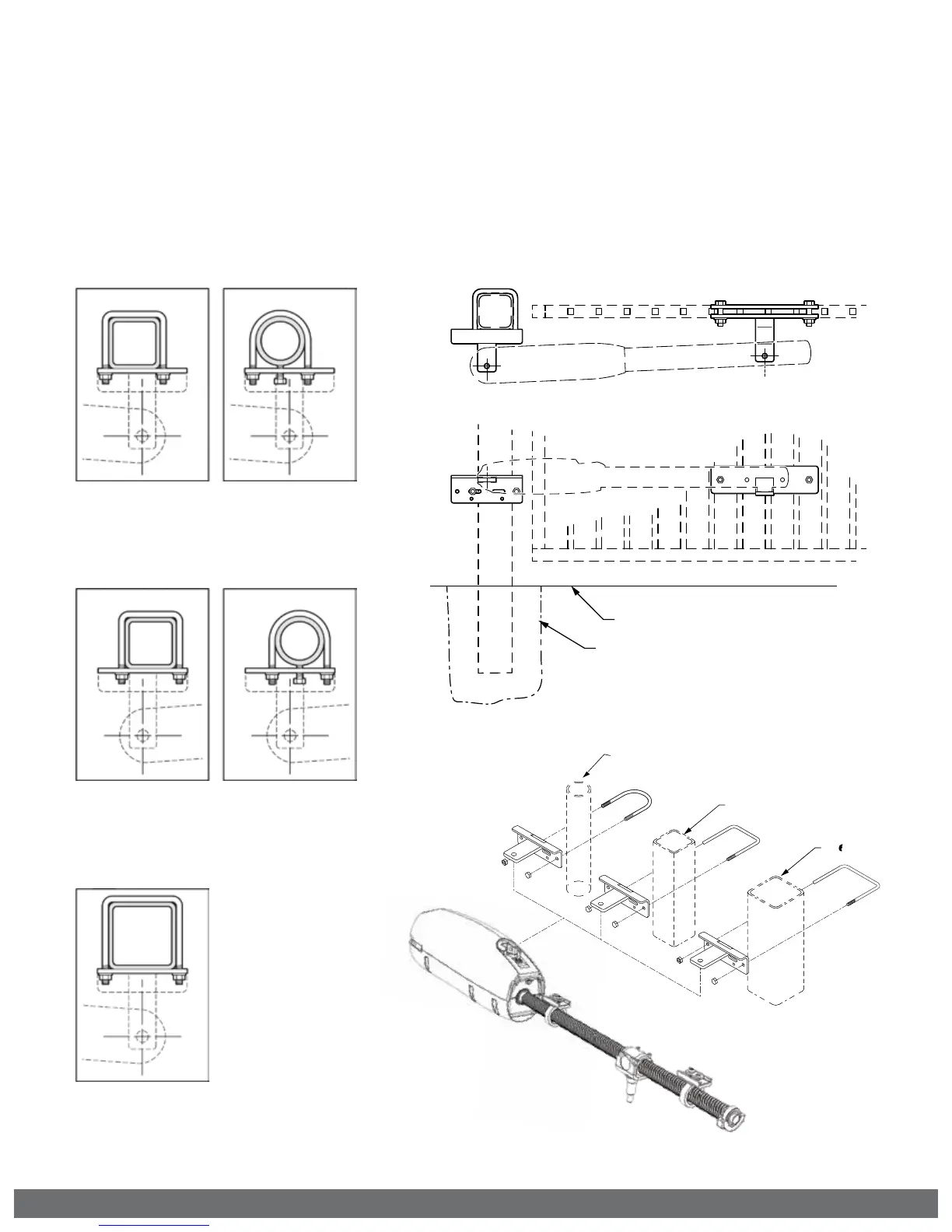

Post Mounting Option
A Post Mount Kit is available for the E-4 Operator as an option to welding the operator
Mounting Brackets to the gate and column. Part # VA-E4PSKT
1. Mounting hardware provided for 3 1/2” round, 4” and 6” square posts.
2. Mounting Brackets are powder coated 1/4” steel.
GATE OPERATOR INSTALLATION
Grade Level
Consult Local Building Codes
6” Square Pipe
Open Left/Right
4” Square Pipe
Open Left
3-1/2” Round
Pipe
Open Left
4” Square Pipe
Open Right
3-1/2” Round
Pipe
Open Left
